Incoming acceptance and product identification
12
4.2.1

Measuring instrument nameplate

1
2
3
4
5
6
7

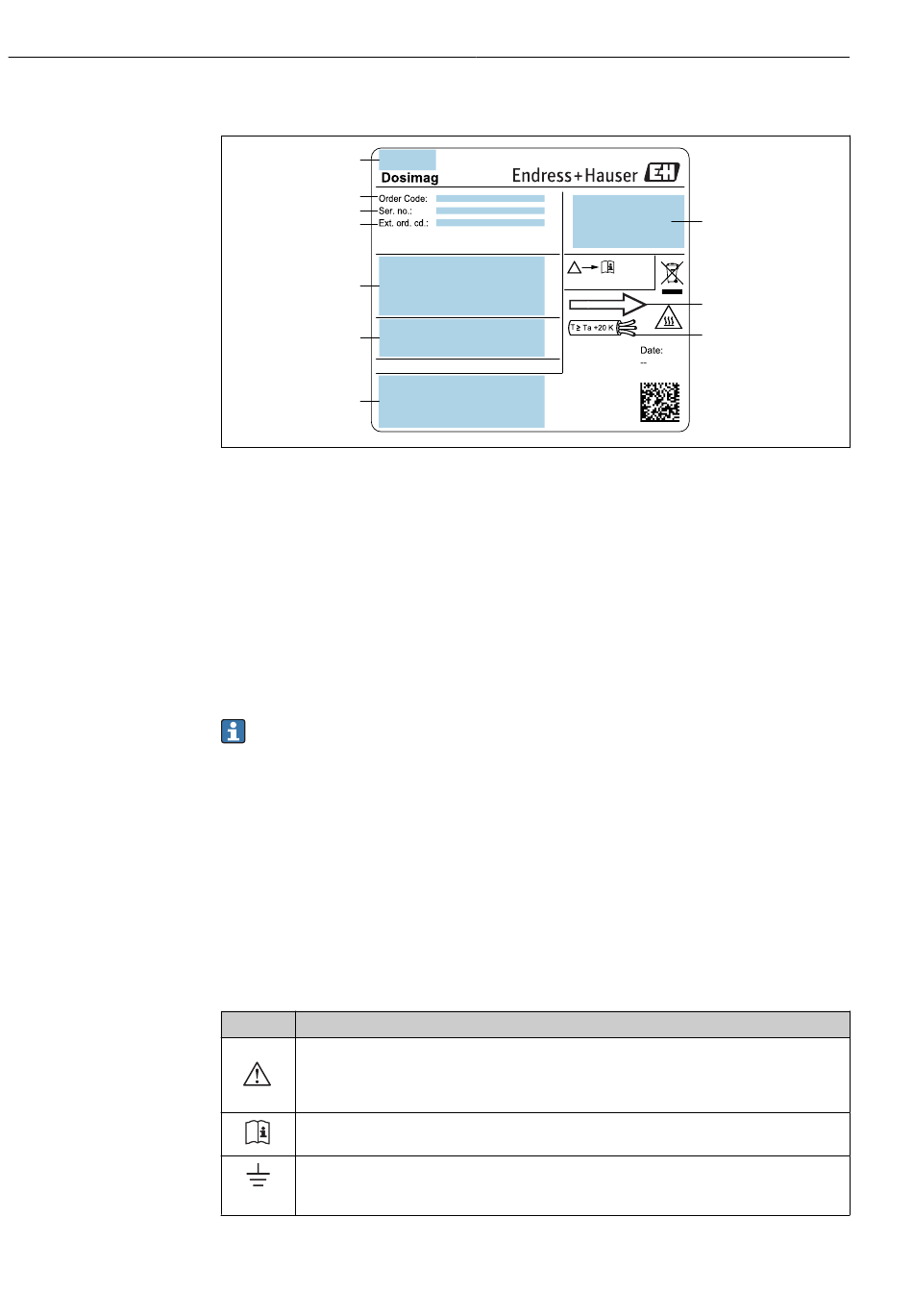

 2 Example of measuring instrument nameplate
1 Manufacturer address/certificate holder
2 Order code
3 Serial number (Ser. no.)
4 Extended order code (Ext. ord. cd.): See the specifications on the order confirmation for the meanings of the
individual letters and digits
5 Supply voltage; power consumption; process connection
6 Nominal diameter of sensor; pressure rating (PN = PS); materials in contact with medium; permitted medium
temperature (Tm); permitted ambient temperature (Ta)
7 Space reserved for additional information on the device version (approvals, certificates, etc.)
8 Degree of protection
9 Flow direction
10 Cable temperature
Order code
The measuring device is reordered using the order code.
Extended order code
• The device type (product root) and basic specifications (mandatory features) are
always listed.
• Of the optional specifications (optional features), only the safety and approval-
related specifications are listed (e.g. LA). If other optional specifications are also
ordered, these are indicated collectively using the # placeholder symbol (e.g. #LA#).
• If the ordered optional specifications do not include any safety and approval-related
specifications, they are indicated by the + placeholder symbol (e.g. XXXXXX-ABCDE
+).
4.2.2

Symbols on the device

Symbol Meaning
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious
or fatal injury. Please consult the documentation for the measuring instrument to discover the
type of potential danger and measures to avoid it.
Reference to documentation
Refers to the corresponding device documentation.
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding
system.
Dosimag IO-Link
8
!
9
10
Endress+Hauser
A0054879
