Connecting the measuring instrument
NOTICE
An incorrect connection compromises electrical safety!
‣
Only properly trained specialist staff may perform electrical connection work.
‣
Observe applicable federal/national installation codes and regulations.
‣
Comply with local workplace safety regulations.
‣
When using in potentially explosive atmospheres, observe the information in the
device-specific Ex documentation.
7.3.1

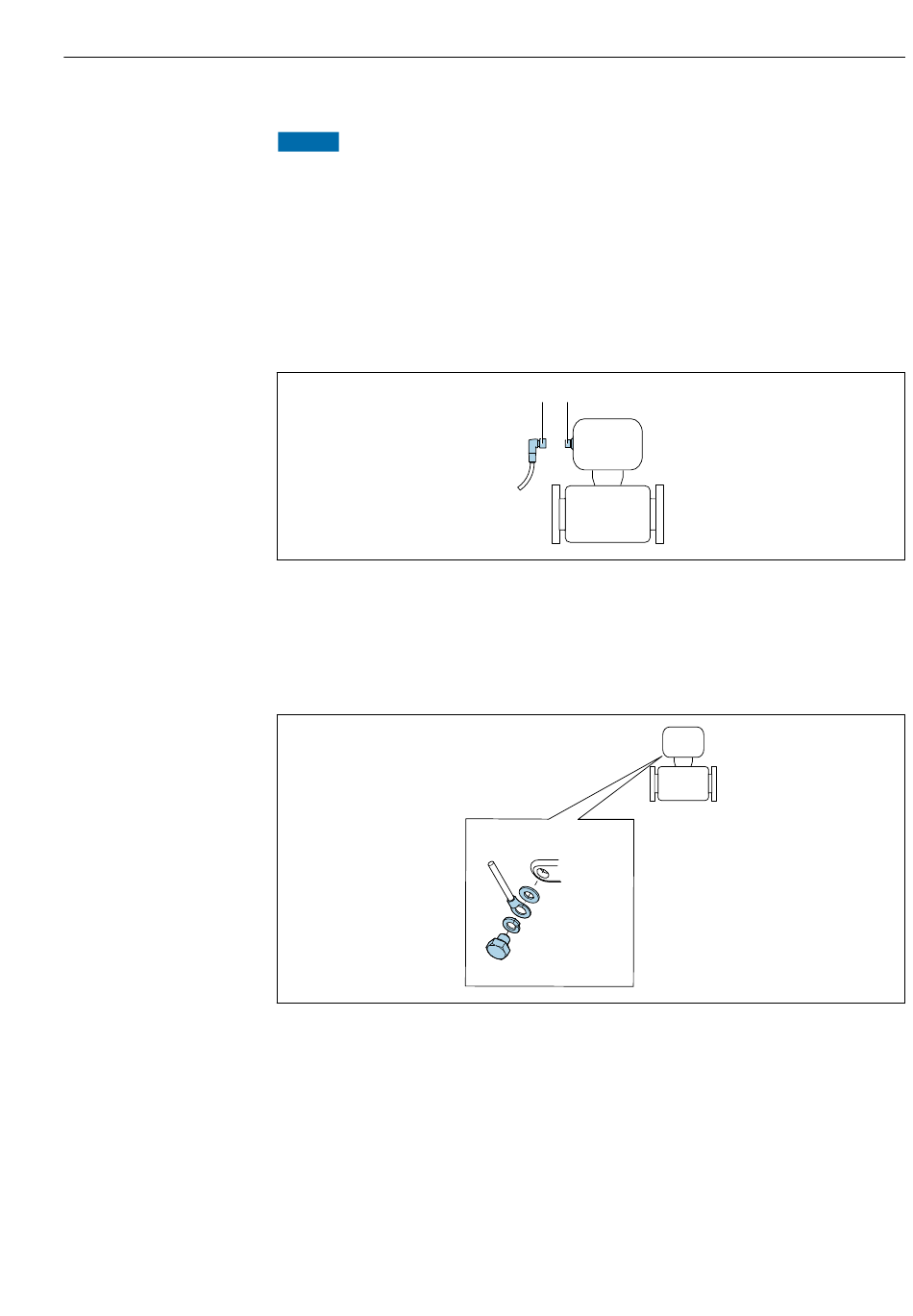

Connection via device plug
Connection is solely by means of device plug.
A
Coupling
B
Plug
7.3.2
Grounding
Grounding is by means of a cable socket.
A
B
Electrical connection
A0032652
A0053306
