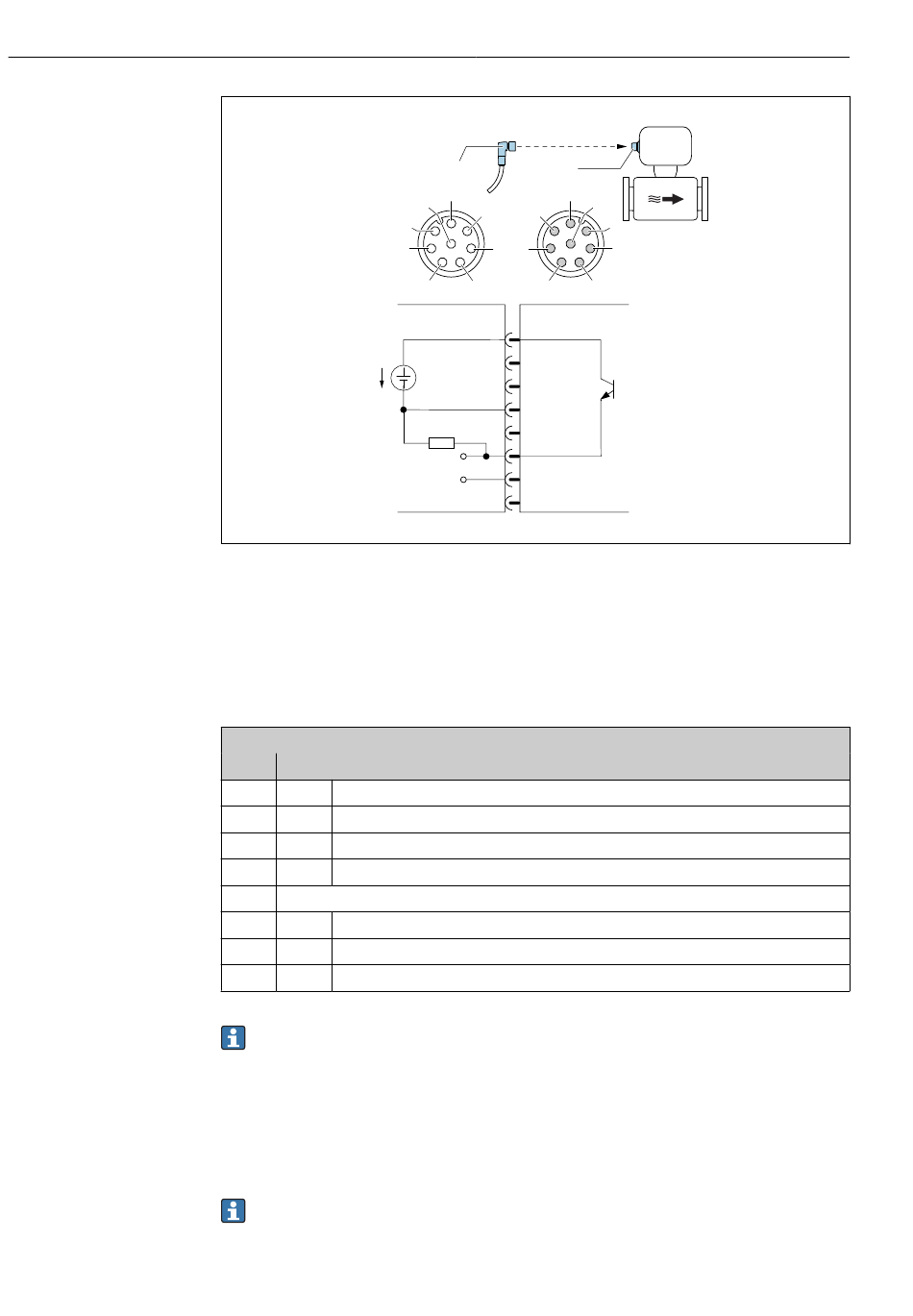

Electrical connection
26
+
E
-
6
Connection to device
A
Coupling: Supply voltage, pulse/freq./switch output
B
Connector: Supply voltage, pulse/freq./switch output
E
PELV or SELV power supply
1 to
Pin assignment
8
Pin assignment
Pin
Assignment
1
L+
Supply voltage
2
+
Service interface RX
3
+
Service interface TX
4
L-
Supply voltage
5
Not used
6
–
Pulse/frequency/switch output DQ
7
–
IO-Link communication signal C/Q
8
–
Service interface GND
The pin assignment deviates from the IO-Link standard to enable compatibility with
previous device versions and installations.
7.2.4
Requirements for the supply unit
Supply voltage
DC 24 V (nominal voltage: DC 18 to 30 V)
• The power unit must be safety-approved (e.g. PELV, SELV).
• The maximum short-circuit current must not exceed 50 A.
RSE 8
M12x1
A
B
2
2
8
3
3
1
4
4
7
6
5
5
A
B
1
2
3
4
5
6
7
8
Connection: Coupling (A) – Connector (B)
Dosimag IO-Link
8
1
7
6
Endress+Hauser
A0053318
