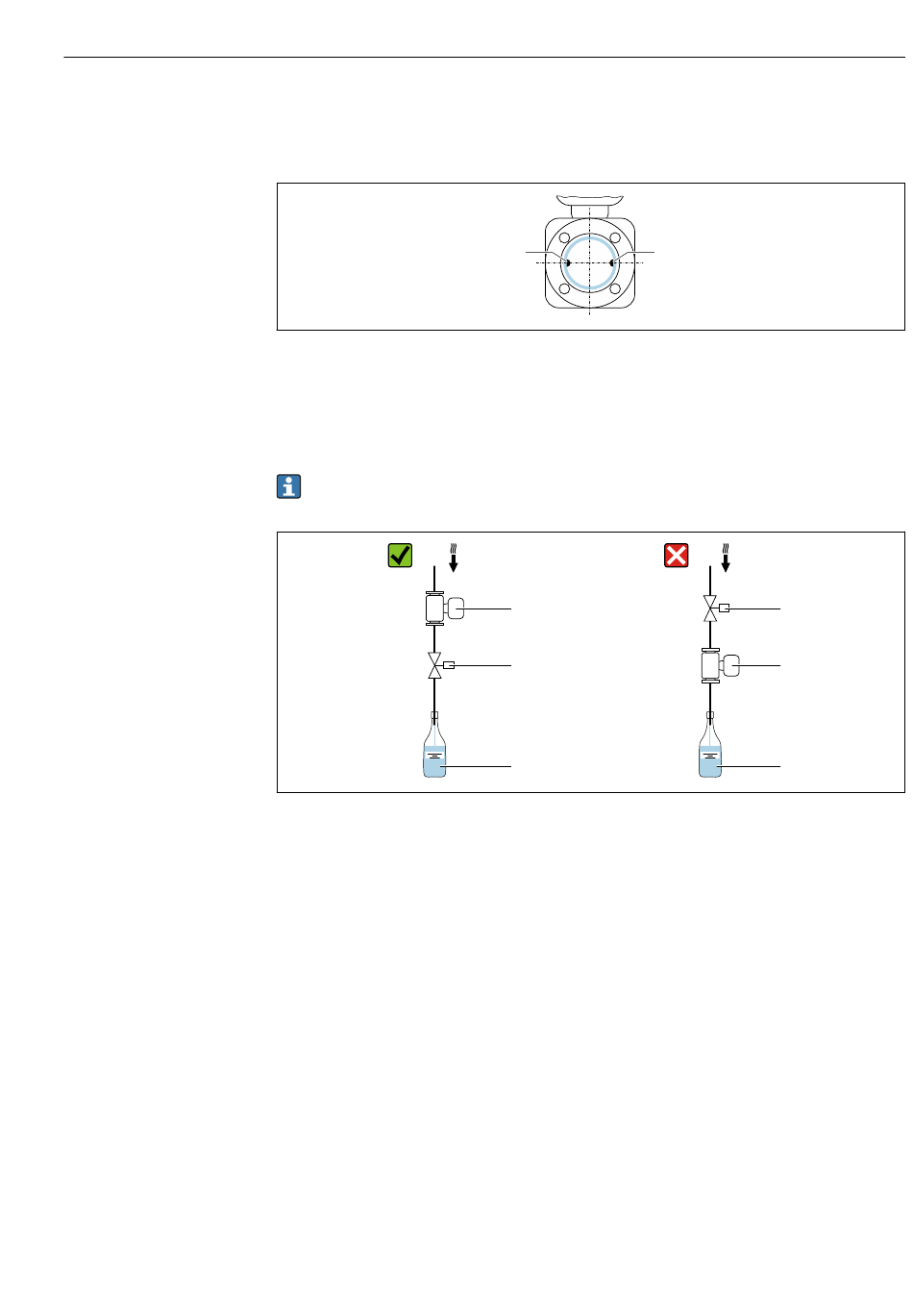

Horizontal
Ideally, the measuring electrode plane should be horizontal. This prevents brief insulation
of the measuring electrodes by entrained air bubbles.
1 Measuring electrodes for signal detection
Valves
Never install the measuring device downstream from a filling valve. Completely emptying
the measuring device results in a high distortion of the measured value.
Correct measurement is possible only if the piping is completely filled. Perform
sample fillings before commencing filling in production.
1 Measuring device
2 Filling valve
3 Vessel
Filling systems
The pipe system must be completely full to ensure optimum measurement.
1 1
1
2
3
Mounting
A0025817
2
1
3
A0003768
