Mounting
18
1
2
3

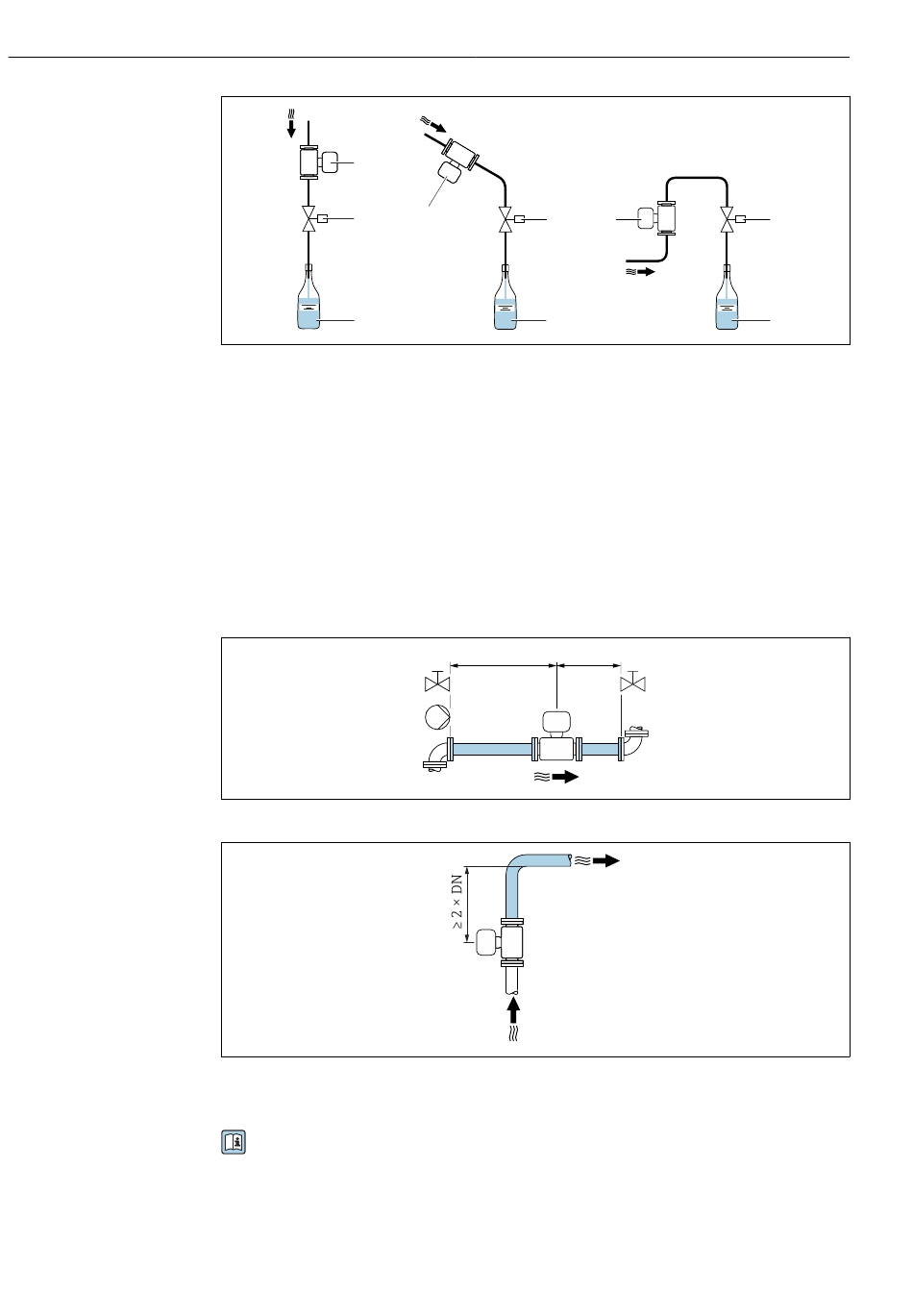

 3 Filling system
1 Measuring device
2 Filling valve
3 Vessel
Inlet and outlet runs
Installation with inlet and outlet runs
To avoid a vacuum and to maintain the specified level of measurement accuracy, install the
device upstream from assemblies that produce turbulence (e.g. valves, T-sections) and
downstream from pumps.
Maintain straight, unimpeded inlet and outlet runs.
Installation dimensions
For the dimensions and installation lengths of the device, see the "Technical
Information" document, "Mechanical construction" section
2
1
3
≥ 5 × DN
≥ 2 × DN
Dosimag IO-Link
1 2
3
