Mounting
16
Information on the measuring system' s resistance to vibration and shock →  59

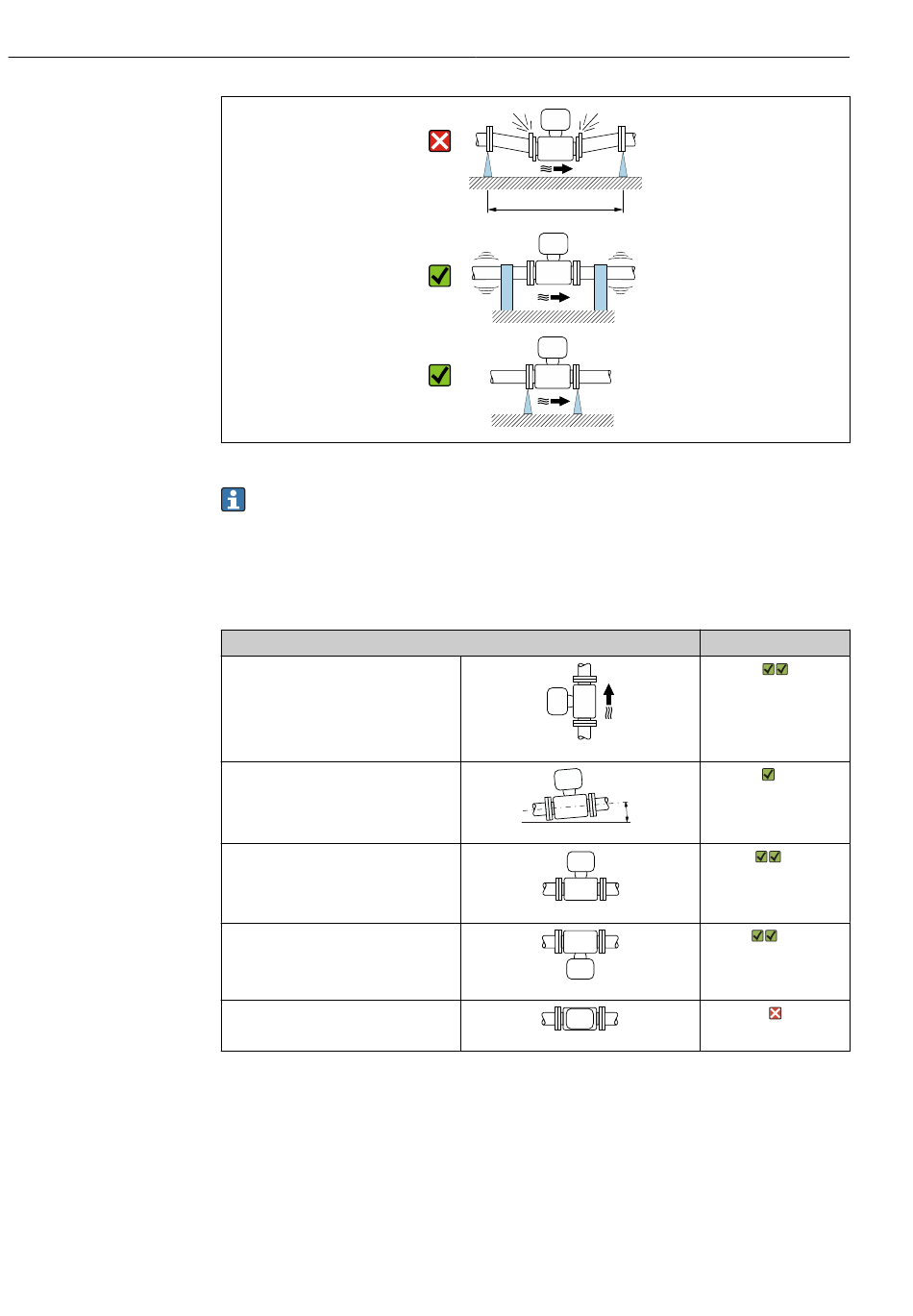

Orientation
The direction of the arrow on the nameplate helps you to install the measuring device
according to the flow direction (direction of medium flow through the piping).
Vertical orientation
Horizontal orientation
Horizontal orientation, transmitter at top
Horizontal orientation, transmitter at
bottom
Horizontal orientation, transmitter at
side
1) The measuring device should be self-draining for hygiene applications. A vertical orientation is
recommended for this. If only a horizontal orientation is possible, an angle of inclination α ≥ 10° is
recommended.
2) Applications with low process temperatures may reduce the ambient temperature. To maintain the
minimum ambient temperature for the transmitter, this orientation is recommended.
3) Applications with high process temperatures may increase the ambient temperature. To maintain the
maximum ambient temperature for the transmitter, this orientation is recommended.
4) To prevent the electronics from overheating in the event of strong heat formation (e.g. CIP or SIP cleaning
process), install the device with the transmitter part pointing downwards.
L > 10 m (33 ft)
Orientation
Dosimag IO-Link
Recommendation
A0015591
1)
α
A0041328
2)
A0015589
3) 4)
A0015590
A0015592
Endress+Hauser
A0041092
