Dosimag IO-Link
Endress+Hauser

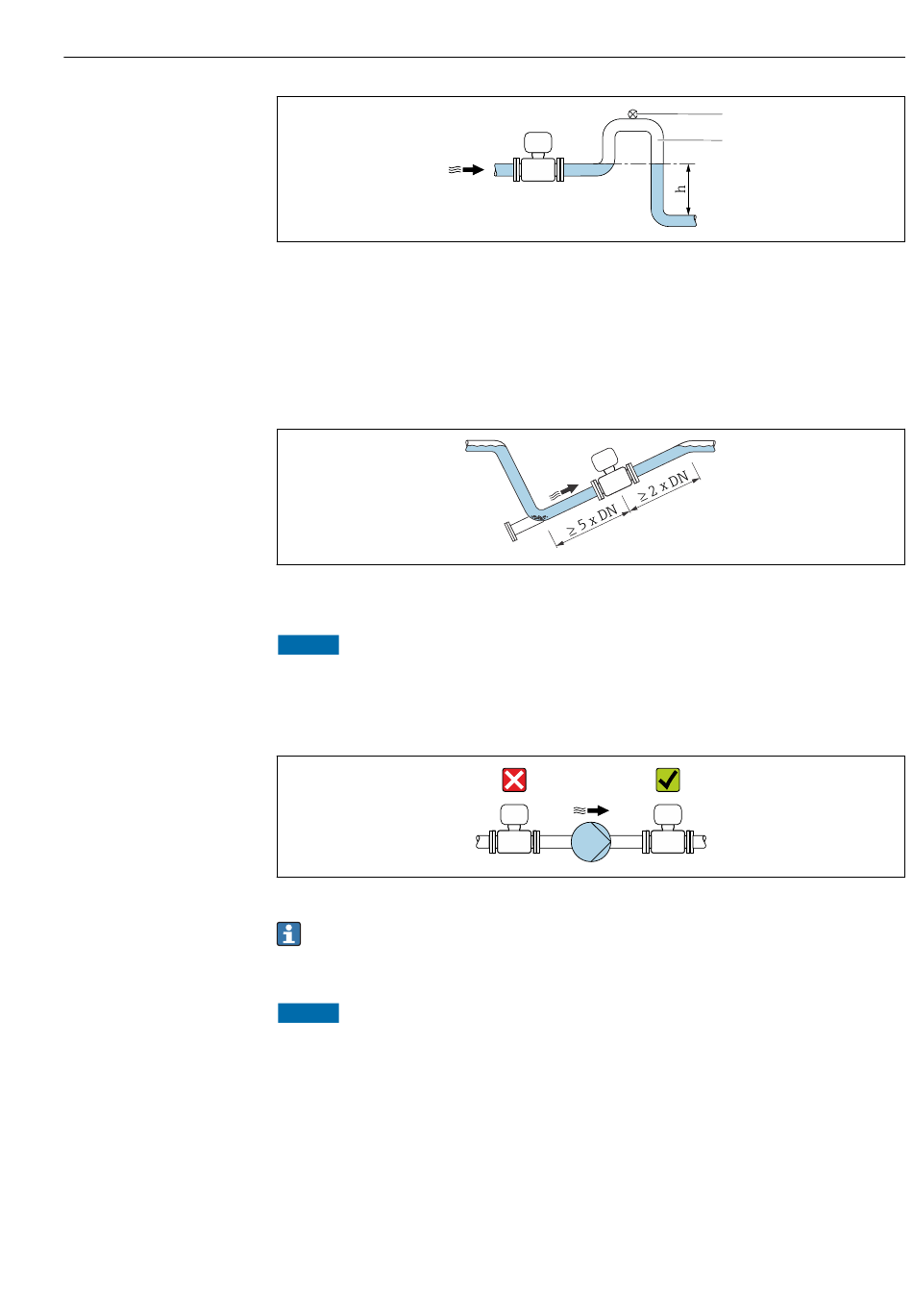

1 Vent valve
2 Pipe siphon
h Length of down pipe
Installation with partially filled pipes
• Partially filled pipes with a gradient require a drain-type configuration.
• The installation of a cleaning valve is recommended.
Installation near pumps
NOTICE
Negative pressure in the measuring tube can damage the liner!
‣
In order to maintain the system pressure, install the device in the flow direction
downstream from the pump.
‣
Install pulsation dampers if reciprocating, diaphragm or peristaltic pumps are used.
• Information on the liner' s resistance to partial vacuum →  60
• Information on the measuring system' s resistance to vibration and shock →  59
Installation in event of pipe vibrations
NOTICE
Pipe vibrations can damage the device!
‣
Do not expose the device to strong vibrations.
‣
Support the pipe and fix it in place.
‣
Support the device and fix it in place.
Mounting
1
2
A0028981
A0041088
A0041083
