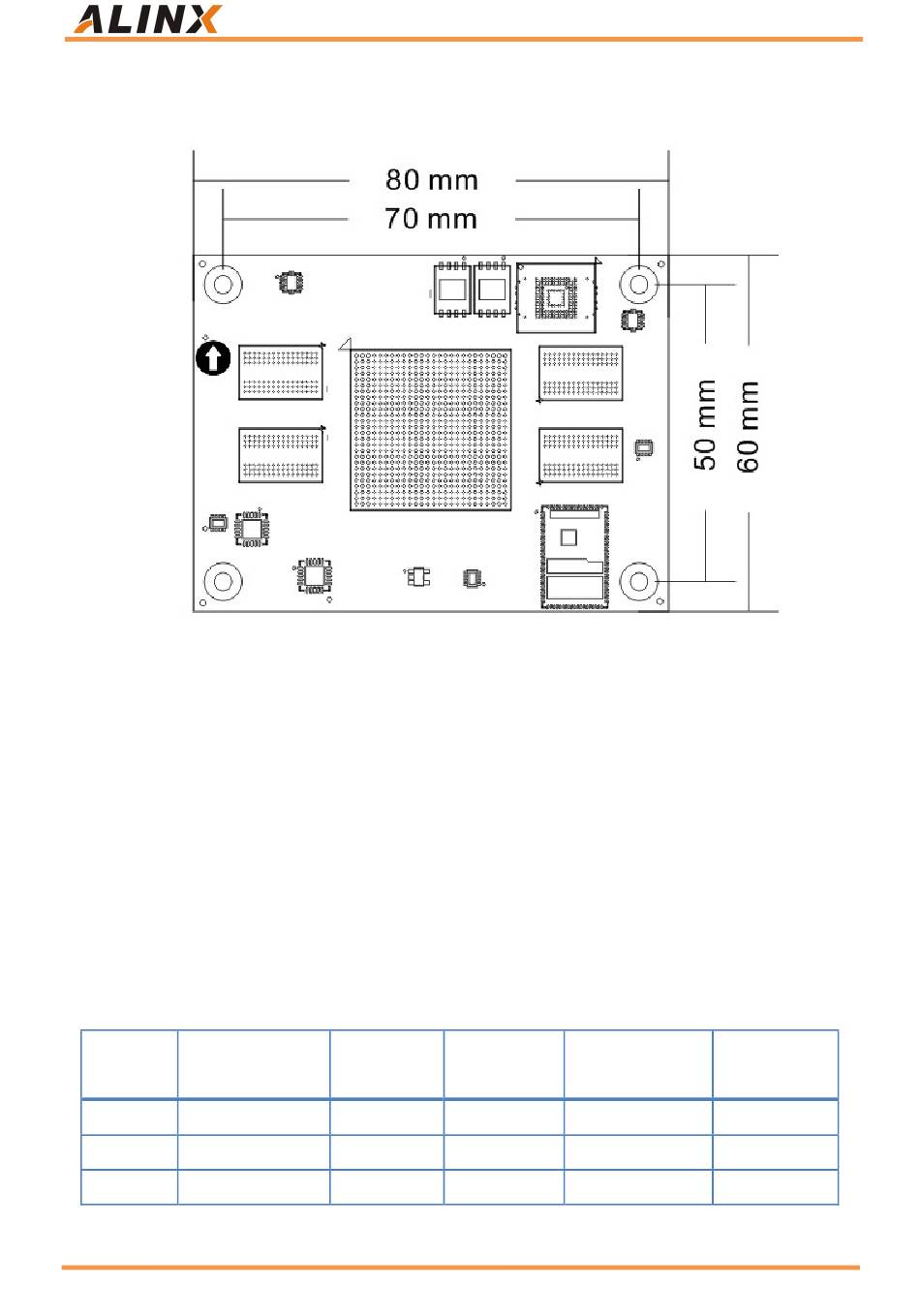

2.10 Size Dimension

2.11 Connectors Pin Assignment

The core board has a total of 4 high-speed expansion ports, which are
connected to the carrier board using four 120Pin board-to-board connectors
(J29~J32). The connectors use Panasonic's AXK5A2137YG, and the corresponding
connectors' model on the carrier board is AXK6A2337YG. J29 connects to BANK12's
and BANK13's IO, J30 connects to GTX's transceiver signal, J31 connects to JTAG's
and BANK35's IO
and+5V power supply.
J29 connector pin assignment:
J29 Pin Signal Name
1 B13_L8_P
3 B13_L8_N
5 GND
27 / 58
(1.8V level standard), J32 connects to PS's MIO, BANK13's IO,
ZYNQ Pin
No.
AE23
AF23
-
AX7Z035B User Manual
Top View
J29 Pin Signal Name
2 B13_L9_N
4 B13_L9_P
6
ZYNQ Pin
No.
AB22
AB21
GND -
