AX7Z035B User Manual
2x SD card, SDIO, MMC compatible controllers.
-
2x SPIs, 2x UARTs, 2x I2C interfaces.
-
54x multi-function Ios, which can be configured as normal IO or peripheral
-
control interfaces.
High bandwidth connection within PS and PS to PL.
-
The main parameters of the PL logic are as follows:
Logic Cells：275K；
-
LUTs: 171,900
-
Flip-flops: 343,800
-
18x25MACCs：900;
-
Block RAM：17.6Mb；
-
8-lane high-speed GTX transceivers, support PCIE Gen2x8；
-
2x AD converters for on-chip voltage, temperature sensing and up to 17
-
external differential input channels, 1MBPS.
XC7Z035-2FFG676I chip speed grade is -2, industrial grade, package is FGG676,
pin pitch is 1.0mm, the specific chip model naming definition of ZYNQ7000 series is
shown in Figure 2-2-2:

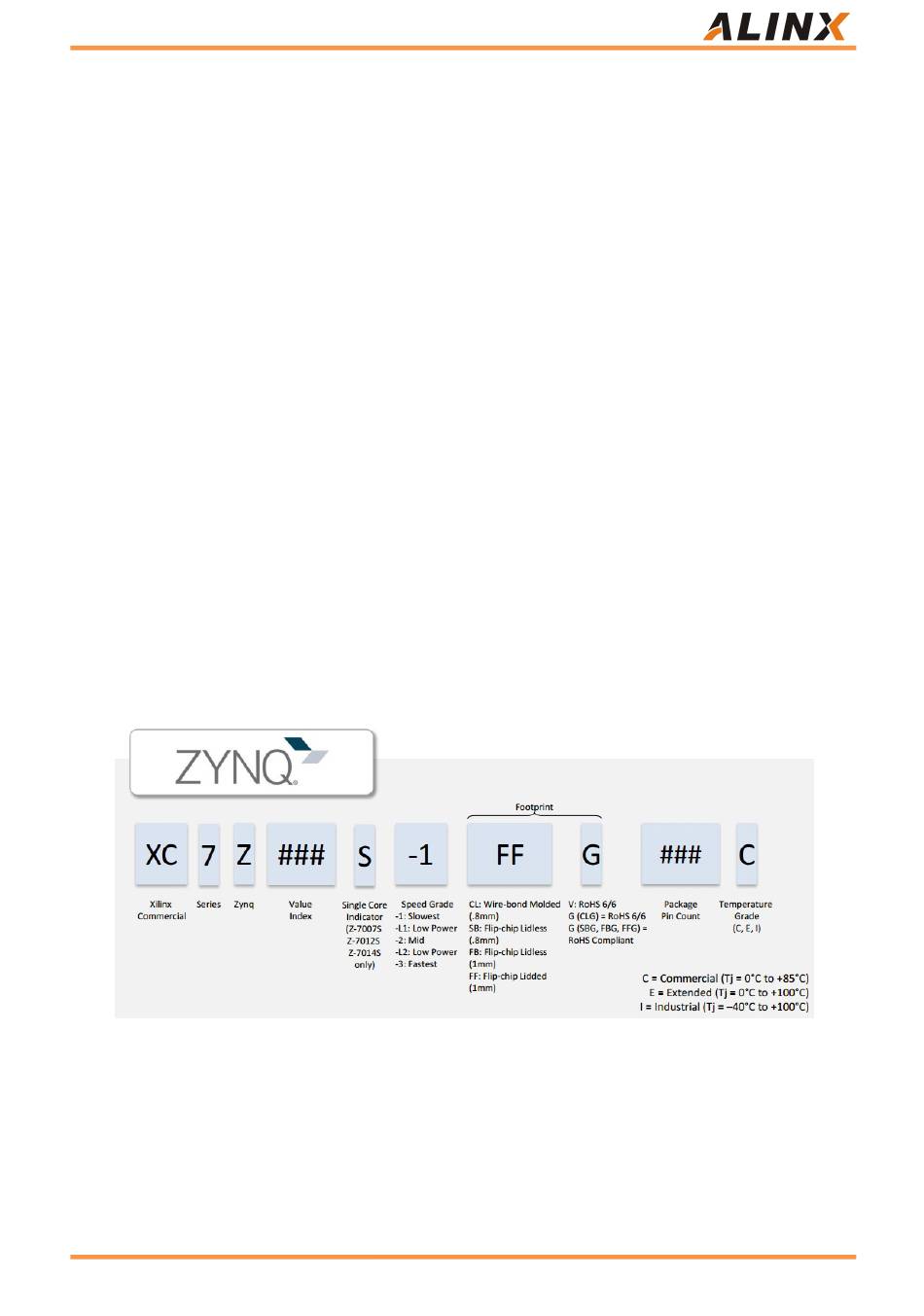

Figure 2-2-2: Specific Chip Model Definition of ZYNQ7000 Series
