Summary of Contents for Jasic Plasma Cut 60
-

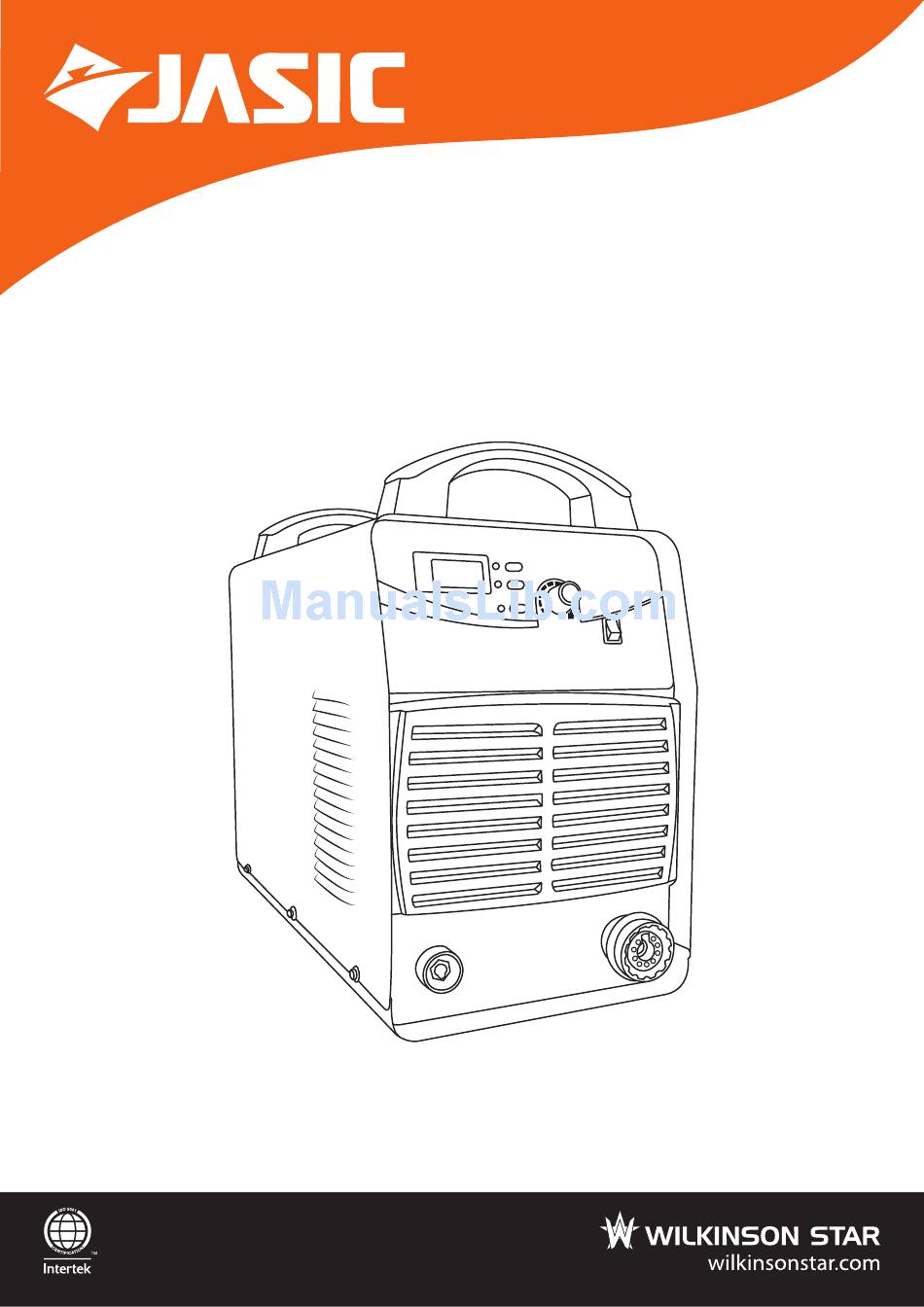

Page 1: Operator Manual
Plasma Cut Series Plasma Cut 60 (JP-60) Plasma Cut 80 (JP-80) Plasma Cut 100 (JP-100) Operator Manual... - Page 2 Your new product Thank you for selecting this Jasic Technology, Wilkinson Star product. This product manual has been designed to ensure that you get the most from your new product. Please ensure that you are fully conversant with the information provided paying particular attention to the safety precautions.
-
Page 3: Safety Precautions
Safety Precautions These general safety norms cover both arc welding Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent any physical contact machines and plasma cutting machines unless with the work ground. otherwise noted. Never touch the electrode if you are in contact with the work The equipment must only be used for the purpose it was ground, or another electrode from a different machine. - Page 4 Do not weld or cut coated metals, unless the coating is Replace the coverings and protections and close all doors removed from the weld area, the area is well ventilated, and when the intervention is finished, and before starting the while wearing an air-supplied respirator.
- Page 5 RF Declaration Keep your head and face away from the cylinder valve outlet when opening the cylinder valve. Equipment that complies with directive 2004/108/EC Always secure the cylinder safely concerning electromagnetic compatibility (EMC) and the technical requirements of EN60974-10 is designed for use in Never deface or alter any cylinder industrial buildings and not those for domestic use where electricity is provided via the low voltage public distribution...
-
Page 6: Product Overview

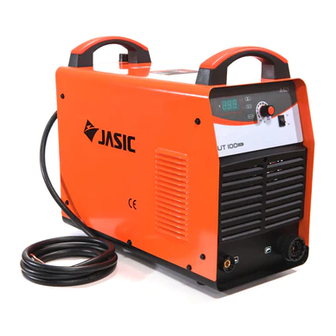

Product Overview The CUT series are inverter cutting machines using manufacturing, chemical container manufacturing, advanced inverter technology. power plant installation and construction industry, metallurgy, chemical engineering, aerospace, They are products with stable performance. automobile and engineering vehicles manufacturing With PWM technology and high power component and construction, etc. -
Page 7: Technical Data
Technical data Model CUT60 CUT80 Cut 100 Rated input voltage AC400V±15%(3 phases) , 50/60Hz AC400V±15%(3 phases) , 50/60Hz AC400V±15%(3 phases) , 50/60Hz Rated output 60A/104V 80A/112V 100A/120V Rated input capacity (KVA) 14.3 Rated input current(A) 21.7 Cutting current range (A) 20-60 20-80 20-100... -
Page 8: Panel Layout
Controls PANEL LAYOUT FRONT REAR CONTROL PANEL WORK RETURN SOCKET MAINS SWITCH TORCH CONNECTION SOCKET MAINS CABLE AIR REGULATOR... -
Page 9: Control Panel
CONTROL PANEL DIGITAL METER CURRENT ADJUSTMENT 2T/4T (AUTOMATION) ALARM INDICATOR PURGE - RUN SWITCH MAINS INDICATOR AIR REGULATOR AND GUAGE DIGITAL METER CUTTING CURRENT ADJUSTER 2T/4T (AUTOMATIC OPERATION) OVER TEMPERATURE ALARM PURGE - RUN SWITCH MAINS INDICATOR... -
Page 10: Installation
Installation Unpacking Check the packaging for any signs of damage. Carefully remove the machine and retain the packaging until the installation is complete. Location The machine should be located in a suitable position and environment. Care should be taken to avoid moisture, dust, steam, oil or corrosive gases Place on a secure level surface and ensure that there is adequate clearance around the machine (at... -
Page 11: Air Inlet
Connection of the air supply Introduction of the cutting torch The unit should be connected to a suitable, clean The plasma cutter CUT100 uses the P150 plasma cutting torch for its standard configuration. The plasma cutters CUT60 and Cut 80 use the PT100 plasma cutting torch for its standard configuration Pressure adjuster... - Page 12 PT-100 Plasma Cutting Torch Current: 30-120 Amps • Duty Cycle: 120 Amps @ 60 % • Gas: Air /N2 • Gas Pressure: 70-80 psi (4.6-5.0 Bar) • Gas Flow: 420scfh (200 lpm) TORCH PACKAGE Item No Description 09721/LG 6mtr Cable Central Connection MAIN CONSUMABLES &...
- Page 13 P150LT COMPATIBLE CEBORA Gas: Single • Air Flow: 220 Litres Per Min • Rating: 150 Amp @ 60% Duty Cycle • Cutting Capacity: 35mm Most Materials TORCH PACKAGES MAIN CONSUMABLES Item No Description List Price Each £ Item Part Description Pack List Price C1576LT...
-
Page 14: Operation
Operation Before starting any cutting activity ensure that you have Ensure spatter comes from the bottom of workpiece while cutting. If spatter comes upward from the top of suitable eye protection and protective clothing. Also take workpiece, it indicates that the workpiece has not been fully cut through. - Page 15 Cutting speed (m/min) when cutting current is 60A Do not carry out cutting with the cutting machine placed on a platform with a pitch greater than 15°. Overcurrent/overvoltage/overheating protection circuit is installed in this machine. When the mains voltage, output current or inner temperature exceeds the set standard, the machine will stop automatically.
-
Page 16: Maintenance And Troubleshooting
Maintenance and troubleshooting The following operation requires sufficient professional Troubleshooting knowledge on electric aspects and comprehensive Before arc cutting machines are dispatched from the factory, safety knowledge. Make sure the input cable of the they have already been checked thoroughly. The machine should not be tampered with or altered. -
Page 17: Parts List
Parts List Cut 60 /80... - Page 18 Part number Description Part number Description 10052709 Digital display board 10035518 Relief valve 10004944 Transform switch 10046002 IGBT 10040930 Knob 10004887 Cable clip 10047358 Front panel blinds 10021936 Power switch 10004637 Quick socket 10049874 Column 10051490 Front panel 10006256 Rectifier 10053206 Plasma center socket &...
- Page 19 Cut 100 Part number Description Part number Description 10046896 Handle 10048690 Arc striking board 10046712 Digital display 10035518 Relief valve 10004917 Knob 10021936 Power switch 10004944 2T / 4T switch 10004886 Cable clip 10047339 Front grill 10022274 Switch Angle support 10004637 Quick connector 10043995...
- Page 20 CUT 60/80/100 AIR PLASMA CUTTING MACHINE Order codes ! J P-60, JP-80, JP-100 © Wilkinson Star Limited Issue 1 June 2015 Product is subject to change without notice...
