List Price €0000

Order Code: 14.13.01000000

Key Features

• IGBT plasma cutting inverter

• Lightweight, portable modern design

• Variable cutting control

• HF ignition

• LED display

• Smooth precise cutting

• Simple operation

• Suitable for automated cutting (optional)

• PI50LT hand plasma torch 6m

• Generator friendly

Technical Data

AC 400V - 50/60 Hz

20 - 100

Clean 30mm

Severance 35mm

Power Factor 0.93

Dimensions LxWxH

565 x 255 x 440

Accessories/Optional Items

Part Number

Description

* 14.00.00203001 Earth Clamp and 3m Cable

* 14.00.01576000 P150 LT 6MT Torch

* 14.00.02001000 LT150 Torch Head

* 14.00.01376000 Electrode

* 14.00.01378000 Di user

* 14.00.01377000 Swirl Ring

14.00.01371000 Cutting Tip 1.1

14.00.01372000 Cutting Tip 1.35

14.00.01373000 Cutting Tip 1.6

* 14.00.01374000 Cutting Tip 1.8

14.00.01375000 Gouging Tip 3.0

* 14.00.01389000 Nozzle Retaining Cap

14.00.01018000 Extended Di user

14.00.01517000 Extended Electrode

14.00.01001000 Extended Tip 1.35 - 90amp

14.00.01002000 Extended Tip 1.60 - 120amp

14.00.01003000 Extended Tip 1.8 - 150amp

14.00.01386000 Spacer Spring

14.00.01408000 Double Pointed Spacer

14.09.01409000 Crown Spacer

* Comes as Standard

List Price €1562.00

Ieﬀ

17A

15.8

100A @ 60%

220 Ltr/Min @ 5 bar

(73 psi)

Class: IP21S/F

26.5

€ List Price

19.00

390.00

130.00

2.50

2.44

8.34

2.18

23.32

8.76

4.28

5.36

1.58

11.00

15.60

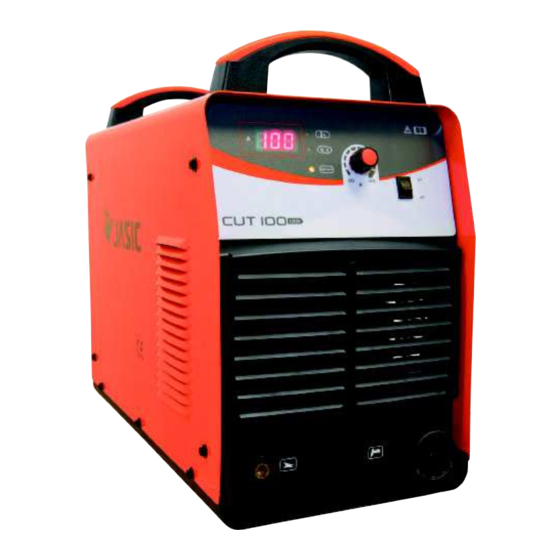

The Jasic Pro Plasma Cut 100 is professional high-end

cutting inverter equipped with the latest IGBT technology.

This technologically advanced plasma inverter is extremely

user-friendly and oﬀers reliable cutting performance.

The machine provides variable cutting control that allows

the operator to produce precise smooth cuts.

Digital Display

Warning Indicator

Amperage Control Dial

2T/4T Indicator

Plasma Cut 100

* *

31.

Table of Contents

Need help?

Do you have a question about the Plasma Cut 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jasic Plasma Cut 100

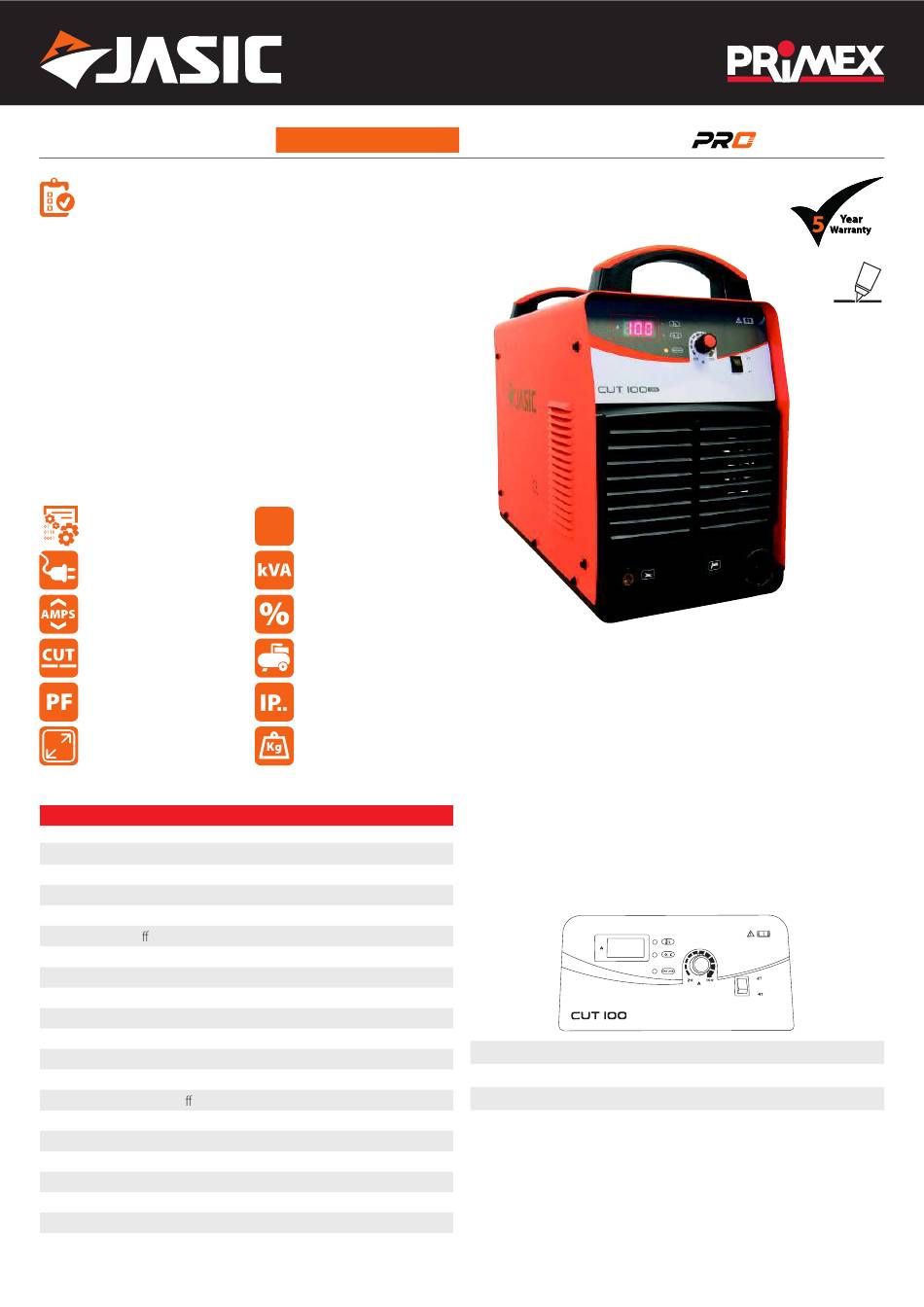

Page 1 Clean 30mm 220 Ltr/Min @ 5 bar Severance 35mm (73 psi) The Jasic Pro Plasma Cut 100 is professional high-end cutting inverter equipped with the latest IGBT technology. Power Factor 0.93 Class: IP21S/F This technologically advanced plasma inverter is extremely Dimensions LxWxH user-friendly and oﬀers reliable cutting performance.
Page 2 Plasma Cut Series Plasma Cut 60 (JP-60) Plasma Cut 80 (JP-80) Plasma Cut 100 (JP-100) Operator Manual...
Page 3 Your new product Thank you for selecting this Jasic Technology, Wilkinson Star product. This product manual has been designed to ensure that you get the most from your new product. Please ensure that you are fully conversant with the information provided paying particular attention to the safety precautions.
Page 4: Safety Precautions
Safety Precautions These general safety norms cover both arc welding Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent any physical contact machines and plasma cutting machines unless with the work ground. otherwise noted. Never touch the electrode if you are in contact with the work The equipment must only be used for the purpose it was ground, or another electrode from a diﬀerent machine.
Page 5 Do not weld or cut coated metals, unless the coating is Replace the coverings and protections and close all doors removed from the weld area, the area is well ventilated, and when the intervention is ﬁnished, and before starting the while wearing an air-supplied respirator.
Page 6 RF Declaration Keep your head and face away from the cylinder valve outlet when opening the cylinder valve. Equipment that complies with directive 2004/108/EC Always secure the cylinder safely concerning electromagnetic compatibility (EMC) and the technical requirements of EN60974-10 is designed for use in Never deface or alter any cylinder industrial buildings and not those for domestic use where electricity is provided via the low voltage public distribution...
Page 7: Product Overview
Product Overview The CUT series are inverter cutting machines using manufacturing, chemical container manufacturing, advanced inverter technology. power plant installation and construction industry, metallurgy, chemical engineering, aerospace, They are products with stable performance. automobile and engineering vehicles manufacturing With PWM technology and high power component and construction, etc.
Page 8: Technical Data
Technical data Model CUT60 CUT80 Cut 100 Rated input voltage AC400V±15%(3 phases) , 50/60Hz AC400V±15%(3 phases) , 50/60Hz AC400V±15%(3 phases) , 50/60Hz Rated output 60A/104V 80A/112V 100A/120V Rated input capacity (KVA) 14.3 Rated input current(A) 21.7 Cutting current range (A) 20-60 20-80 20-100...
Page 9: Panel Layout
Controls PANEL LAYOUT FRONT REAR CONTROL PANEL WORK RETURN SOCKET MAINS SWITCH TORCH CONNECTION SOCKET MAINS CABLE AIR REGULATOR...
Page 10: Control Panel
CONTROL PANEL DIGITAL METER CURRENT ADJUSTMENT 2T/4T (AUTOMATION) ALARM INDICATOR PURGE - RUN SWITCH MAINS INDICATOR AIR REGULATOR AND GUAGE DIGITAL METER CUTTING CURRENT ADJUSTER 2T/4T (AUTOMATIC OPERATION) OVER TEMPERATURE ALARM PURGE - RUN SWITCH MAINS INDICATOR...
Page 11: Installation
Installation Unpacking Check the packaging for any signs of damage. Carefully remove the machine and retain the packaging until the installation is complete. Location The machine should be located in a suitable position and environment. Care should be taken to avoid moisture, dust, steam, oil or corrosive gases Place on a secure level surface and ensure that there is adequate clearance around the machine (at...
Page 12 Connection of the air supply Introduction of the cutting torch The unit should be connected to a suitable, clean The plasma cutter CUT100 uses the P150 plasma cutting torch for its standard conﬁguration. The plasma cutters CUT60 and Cut 80 use the PT100 plasma cutting torch for its standard conﬁguration Pressure adjuster...
Page 13 PT-100 Plasma Cutting Torch Current: 30-120 Amps • Duty Cycle: 120 Amps @ 60 % • Gas: Air /N2 • Gas Pressure: 70-80 psi (4.6-5.0 Bar) • Gas Flow: 420scfh (200 lpm) TORCH PACKAGE Item No Description 09721/LG 6mtr Cable Central Connection MAIN CONSUMABLES &...
Page 14 P150LT COMPATIBLE CEBORA Gas: Single • Air Flow: 220 Litres Per Min • Rating: 150 Amp @ 60% Duty Cycle • Cutting Capacity: 35mm Most Materials TORCH PACKAGES MAIN CONSUMABLES Item No Description List Price Each £ Item Part Description Pack List Price C1576LT...
Page 15: Operation
Operation Before starting any cutting activity ensure that you have Ensure spatter comes from the bottom of workpiece while cutting. If spatter comes upward from the top of suitable eye protection and protective clothing. Also take workpiece, it indicates that the workpiece has not been fully cut through.
Page 16 Cutting speed (m/min) when cutting current is 60A Do not carry out cutting with the cutting machine placed on a platform with a pitch greater than 15°. Overcurrent/overvoltage/overheating protection circuit is installed in this machine. When the mains voltage, output current or inner temperature exceeds the set standard, the machine will stop automatically.
Page 17: Maintenance And Troubleshooting
Maintenance and troubleshooting The following operation requires suﬃcient professional Troubleshooting knowledge on electric aspects and comprehensive Before arc cutting machines are dispatched from the factory, safety knowledge. Make sure the input cable of the they have already been checked thoroughly. The machine should not be tampered with or altered.
Page 18: Parts List
Parts List Cut 60 /80...
Page 19 Part number Description Part number Description 10052709 Digital display board 10035518 Relief valve 10004944 Transform switch 10046002 IGBT 10040930 Knob 10004887 Cable clip 10047358 Front panel blinds 10021936 Power switch 10004637 Quick socket 10049874 Column 10051490 Front panel 10006256 Rectifier 10053206 Plasma center socket &...
Page 20 Cut 100 Part number Description Part number Description 10046896 Handle 10048690 Arc striking board 10046712 Digital display 10035518 Relief valve 10004917 Knob 10021936 Power switch 10004944 2T / 4T switch 10004886 Cable clip 10047339 Front grill 10022274 Switch Angle support 10004637 Quick connector 10043995...
Page 21 CUT 60/80/100 AIR PLASMA CUTTING MACHINE Order codes ! J P-60, JP-80, JP-100 © Wilkinson Star Limited Issue 1 June 2015 Product is subject to change without notice...
