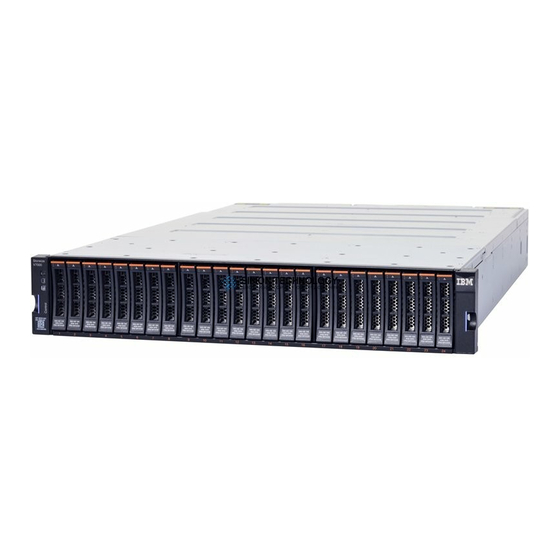

IBM Storwize V7000 Gen2 and Gen2+
MTM 2076-524, 2076-624, 2076-U7A, 2076-AF6, and
2076-92F
Quick Installation Guide
IBM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Storwize V7000 Gen2+ and is the answer not in the manual?

Questions and answers

Related Manuals for IBM Storwize V7000 Gen2+

Summary of Contents for IBM Storwize V7000 Gen2+

  • Page 1 IBM Storwize V7000 Gen2 and Gen2+ MTM 2076-524, 2076-624, 2076-U7A, 2076-AF6, and 2076-92F Quick Installation Guide...
  • Page 2 The information in the “Safety and environmental notices” on page ix v The information in the IBM Environmental Notices and User Guide (provided on a DVD) This edition applies to version 8, release 2, modification 1, and to all subsequent modifications until otherwise indicated in new editions.

  • Page 3: Table Of Contents

    2076-92F . . 51 system . 151 Installing or replacing an expansion canister: Adding a control enclosure to an existing system 2076-92F . . 54 Removing or moving the cable-management arm: 2076-92F . . 55 © Copyright IBM Corp. 2014, 2018...
  • Page 4 Appendix A. Accessibility features for Japan Electronics and Information Technology Industries Association (JEITA) Notice . . 161 the system ... . 153 Japan Voluntary Control Council for Interference (VCCI) Notice . .

  • Page 5: Figures

    89. Removing the 2076-92F enclosure from the 45. Install the expansion canister. . 55 rack . . 96 46. Upper and lower cable-management arms 90. Releasing the power supply handles . . 98 91. Removed power supply . . 99 © Copyright IBM Corp. 2014, 2018...
  • Page 6 92. Drive assembly . . 100 117. Connecting the SAS cables . . 124 93. Drive locations in a 2076-92F expansion 118. SAS port orientation on expansion enclosures 125 enclosure . . 101 119. Features on the front of the 2076-92F 94.

  • Page 7: Tables

    Tables IBM websites for help, services, and Examples of supported SAS chain information . . xix combinations. . 125 Storwize V7000 library . . xx Display panel LEDs . . 130 IBM websites for help, services, and Power supply unit LEDs .
  • Page 8 viii Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 9: Safety And Environmental Notices

    A danger notice indicates the presence of a hazard that has the potential of causing death or serious personal injury. (D002) 2. Locate the IBM Storwize V7000 Safety Notices with the user publications that were provided with your system hardware.

  • Page 10: Caution Notices For The System

    “Labels” section. Note: You can find and download the current IBM System Safety Notices by searching for Publication number G229-9054 in the IBM Publications Center.
  • Page 11 CAUTION: > _ 33.6-46.3 kg (74-102 lbs) 46.3-61.7 kg (102-136 lbs) 61.7-100 kg (136-220 lbs) The weight of this part or unit is more than 55 kg (121.2 lb). It takes specially trained persons, a lifting device, or both to safely lift this part or unit. (C011) CAUTION: To avoid personal injury, before lifting this unit, remove all appropriate subassemblies per instructions to reduce the system weight.
  • Page 12 CAUTION: CAUTION regarding IBM provided VENDOR LIFT TOOL: v Operation of LIFT TOOL by authorized personnel only v LIFT TOOL intended for use to assist, lift, install, remove units (load) up into rack elevations. It is not to be used loaded transporting over major ramps nor as a replacement for such designated tools like pallet jacks, walkies, fork trucks and such related relocation practices.
  • Page 13 v Do not operate while under the influence of drugs or alcohol. v Do not support ladder against LIFT TOOL. v Tipping hazard. Do not push or lean against load with raised platform. v Do not use as a personnel lifting platform or step. No riders. v Do not stand on any part of lift.

  • Page 14: Danger Notices For The System

    Ensure that you are familiar with the danger notices for your system. Use the reference numbers in parentheses at the end of each notice (for example, D005) to find the matching translated notice in IBM Storwize V7000 Safety Notices. Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...
  • Page 15 Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: v If IBM supplied a power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product.
  • Page 16 DANGER: Serious injury or death can occur if loaded lift tool falls over or if a heavy load falls off the lift tool. Always completely lower the lift tool load plate and properly secure the load on the lift tool before moving or using the lift tool to lift or move an object.

  • Page 17: Special Caution And Safety Notices

    Do not transport the rack via fork truck unless it is properly packaged, secured on top of the supplied pallet. (R004) DANGER: Main Protective Earth (Ground): This symbol is marked on the frame of the rack. The PROTECTIVE EARTHING CONDUCTORS should be terminated at that point. A recognized or certified closed loop connector (ring terminal) should be used and secured to the frame with a lock washer using a bolt or stud.

  • Page 18: Handling Static-Sensitive Devices

    Environmental notices This information contains all the required environmental notices for IBM Systems products in English and other languages. The IBM Systems Environmental Notices includes statements on limitations, product...

  • Page 19: About This Guide

    Support for IBM System Storage and IBM TotalStorage products www.ibm.com/support ® IBM Redbooks publications www.redbooks.ibm.com/ Each PDF publication in the library is available in the IBM Knowledge Center by clicking the title in the “Link to PDF” column: © Copyright IBM Corp. 2014, 2018...

  • Page 20: Related Websites

    Sending your comments Your feedback is important in helping to provide the most accurate and highest-quality information. To submit any comments, send your comments by email to ibmkc@us.ibm.com. Include the following information in your email: v Exact publication title and version.

  • Page 21: How To Get Information, Help, And Technical Assistance

    Before you call for support, be sure to have your IBM Customer Number available. If you are in the US or Canada, you can call 1 (800) IBM SERV for help and service. From other parts of the world, see http://www.ibm.com/planetwide for the number that you can call.
  • Page 22 Knowledge Center contains procedures to help you diagnose problems. v Go to the IBM Support website at www.ibm.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.

  • Page 23: Chapter 1. Before You Begin The Installation

    Important information: v This guide presumes that you have read the planning information regarding your physical environment that is available in the IBM Knowledge Center for Storwize V7000 . v Ensure that any cables that you are supplying are available for installation.

  • Page 24: Enclosure

    Table 4. Steps for different installation scenarios. New system (control Adding control enclosure and one or Adding expansion enclosures and New system (control more expansion enclosures to an expansion enclosures enclosure only) enclosures) existing system to an existing system “Reviewing your “Reviewing your “Reviewing your “Reviewing your...
  • Page 25 Table 4. Steps for different installation scenarios (continued). New system (control Adding control enclosure and one or Adding expansion enclosures and New system (control more expansion enclosures to an expansion enclosures enclosure only) enclosures) existing system to an existing system “Powering on the “Connecting Ethernet “Adding an...
  • Page 26 Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: – If IBM supplied a power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product.

  • Page 27: Reviewing Your Packing Slip

    IBM Storwize V7000 Gen2+ Control Enclosure 6195-524 3 years IBM Storwize V7000 Gen2 Control Enclosure 2076-12F 3 years IBM Storwize V7000 12-slot Expansion Enclosure for 3.5-inch drives 2076-24F 3 years IBM Storwize V7000 24-slot Expansion Enclosure for 2.5-inch drives 2076-AFF 3 years IBM Storwize V7000 24-slot Expansion Enclosure for 2.5-inch...

  • Page 28: Identify The Hardware Components

    Options applicable to control enclosures Note: All options other than cables are preinstalled. __ v 64 GB main memory upgrade __ v Cache memory upgrade __ v Four-port 8 Gbps Fibre Channel host interface adapter with two small form-factor pluggable (SFP) transceivers installed __ v Fibre Channel cables __ v SAS cables __ v Four-port 10 Gbps iSCSI / FCoE host interface adapter...

  • Page 29: Data Ports In The Rear Of The Storwize V7000

    2 Power supply units Data ports Figure 2 shows the rear view of a Storwize V7000 control enclosure and identifies the location of the ports. Figure 2. Data ports in the rear of the Storwize V7000 control enclosure 1 USB ports. Each canister has two USB ports. 2 Ethernet ports.

  • Page 30: Control Enclosure Support Rails

    Figure 3. Control enclosure support rails Expansion enclosure components Figure 4 shows the location of the power supply units and expansion canisters. 1 Expansion canisters 2 Power supply units Figure 4. Rear view of a Storwize V7000 expansion enclosure Figure 5 on page 9 shows the LEDs and SAS port locations from the rear view of an expansion canister.

  • Page 31: Sas Ports And Leds In Rear View Of A Storwize

    Figure 5. SAS ports and LEDs in rear view of a Storwize V7000 expansion canister Expansion enclosure support rails The left and right expansion enclosure support rails (Figure 6) are designed specifically for installation of an expansion enclosure. v The ledge on the inside of each rail supports the entire length of an expansion enclosure.

  • Page 32: Identifying Storwize V7000 2076-624 And Storwize V7000 2076-U7A Node Canisters

    Identifying Storwize V7000 2076-624 and Storwize V7000 2076-U7A node canisters The Storwize V7000 2076-624 node canister and the Storwize V7000 2076-U7A node canister include hardware changes that are significantly different than the Storwize V7000 2076-524 node canister. The changes can facilitate distinguishing between the two types of node canisters.

  • Page 33: Verify Environmental Requirements

    If you have not done the environmental planning for your system, see the “Storwize V7000 physical installation planning” topic in the IBM Knowledge Center for Storwize V7000 . Review enclosure location guidelines Before you install the enclosures, you must be familiar with these enclosure location guidelines.
  • Page 34 Installing a control enclosure and one or more expansion enclosures If you are installing a control enclosure plus one or more expansion enclosures, follow these guidelines. v A system can support up to 1056 drives that are installed into control and expansion enclosures.

  • Page 35: Chapter 2. Installing The System Hardware

    2. Working at the front of the rack cabinet, identify the two standard rack units (2U) of space in the rack into which you want to install the support rails. Figure 9 on page 14 shows two rack units with the front mounting holes identified. © Copyright IBM Corp. 2014, 2018...

  • Page 36: Hole Locations In The Front Of The Rack

    Figure 9. Hole locations in the front of the rack 1 Upper rail-mounting bracket pin 2 Lower rail-mounting bracket pin 3 Rack mounting screw hole 3. Ensure that the appropriate bracket pins are installed in the front and rear bracket of each rail. Each rail comes with four medium pins preinstalled (two in the front bracket and two in the rear bracket).

  • Page 37: Opening The Hinge Brackets

    Figure 10. Opening the hinge brackets 5. Align the holes in the rail bracket with the holes on the front and rear rack cabinet flanges. Ensure that the rails are aligned on the inside of the rack cabinet. 6. On the rear of the rail, press the two bracket pins into the holes in the rack flanges.

  • Page 38: Installing Support Rails For 2U Expansion Enclosures

    Installing support rails for 2U expansion enclosures Before you install 2U expansion enclosures, you must first install support rails. Procedure To install the support rails, complete the following steps. 1. Locate the expansion enclosure rails (Figure 12). The rail assembly consists of two rails that must be installed in the rack cabinet.

  • Page 39: Installing The Rail Spring

    Figure 13. Installing the rail spring 4. Working at the front of the rack cabinet, identify the two standard rack units (2U) of space in the rack into which you want to install the support rails. Figure 14 on page 18 shows two rack units with the front mounting holes identified.

  • Page 40: Hole Locations In The Front Of The Rack

    Figure 14. Hole locations in the front of the rack 1 Upper rail mounting bracket pin 2 Lower rail mounting bracket pin 3 Rack mounting screw hole 5. Ensure that the appropriate bracket pins are installed in the front and rear bracket of each rail.

  • Page 41: Opening The Hinge Brackets

    Figure 15. Opening the hinge brackets 7. Align the holes in the rail bracket with the holes on the front and rear rack cabinet flanges. Ensure that the rails are aligned on the inside of the rack cabinet. 8. On the rear of the rail, press the two bracket pins into the holes in the rack flanges.

  • Page 42: Installing A Storwize V7000 Gen2 And Storwize V7000 Gen2+ Control Enclosure

    Installing a Storwize V7000 Gen2 and Storwize V7000 Gen2+ control enclosure Following your enclosure location plan, install each control enclosure. About this task The installation procedure applies equally to control enclosures and expansion enclosures. v Lifting a control enclosure requires at least three people. v Lifting an expansion enclosure requires at least two people.

  • Page 43: Inserting The Enclosure

    Note: The rails are not designed to hold an enclosure that is partially inserted. The enclosure must always be in a fully inserted position. Control enclosures must be installed only on the supplied control enclosure rails. Do not install a control enclosure on expansion enclosure rails.

  • Page 44: Connecting Storwize V7000 Gen2 And Expansion Enclosures To The Control Enclosure

    Figure 20. Reinstalling enclosure end caps What to do next If you removed components from the enclosure to lift it, reinstall the components into the slots of the enclosure from which they were removed. Connecting Storwize V7000 Gen2 and expansion enclosures to the control enclosure If you have installed expansion enclosures in the rack, you must connect them to the control enclosure.

  • Page 45: Connecting The Sas Cables

    Figure 21. Connecting the SAS cables 2. Using the supplied SAS cables, connect the control enclosure to the expansion enclosure at rack position 1, as shown in Figure 22 on page 24. a. Connect SAS port 1 of the upper node canister in the control enclosure to SAS port 1 of the left expansion canister in the first expansion enclosure.

  • Page 46: Connecting The Sas Cables

    Figure 22. Connecting the SAS cables 3. To add a second expansion enclosure chain to the control enclosure, use the supplied SAS cables to connect the control enclosure to the expansion enclosure at rack position 2. Refer to Figure 21 on page 23 for an example. a.

  • Page 47: Sas Cabling Guidelines

    Note: A control enclosure can support up to 20 expansion enclosures (10 above the control enclosure and 10 below the control enclosure). 6. If additional expansion enclosures are installed, connect each one to the previous expansion enclosure in a chain; use two Mini SAS HD to Mini SAS HD cables, as shown in Figure 22 on page 24.
  • Page 48 Be aware of the following guidelines when you attach the cables to the SAS ports in 2U expansion enclosures. v No more than ten expansion enclosures can be chained to SAS port 1 of a node canister. The expansion enclosures in this chain should be installed below the control enclosure (as shown in Figure 24 on page 27).

  • Page 49: Connecting The Sas Cables

    Figure 24. Connecting the SAS cables For information about the SAS cabling requirements for 5U expansion enclosures, see “Connecting optional SAS expansion enclosures: 2076-92F” on page 122. Be aware of the following guidelines when you connect a Storwize V7000 control enclosure to the SAS ports in 2U and 5U expansion enclosures.

  • Page 50: Installing An Optional 5U Sas Expansion Enclosure

    v A connected port on the node canister must connect to a single port on an expansion canister. Cables that split the connector out into separate physical connections are not supported. v Attach cables serially between enclosures; do not skip an enclosure. v The last expansion enclosure in a chain must not have cables in port 1 of canister 1 or port 1 of canister 2.

  • Page 51: Safety Notices And Considerations: 2076-92F

    Safety notices Use the reference numbers in parentheses at the end of each notice (for example, D005) to find the matching translated notice in IBM Storwize V7000 Safety Notices. DANGER DANGER: Serious injury or death can occur if loaded lift tool falls over or if a heavy load falls off the lift tool.
  • Page 52 >240VA Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with metal, which might result in splattered metal, burns, or both. (L005) DANGER: Observe the following precautions when working on or around your IT rack system: v Heavy equipment–personal injury or equipment damage might result if mishandled. v Always lower the leveling pads on the rack cabinet.
  • Page 53 CAUTION: v Do not install a unit in a rack where the internal rack ambient temperatures will exceed the manufacturer's recommended ambient temperature for all your rack-mounted devices. v Do not install a unit in a rack where the air flow is compromised. Ensure that air flow is not blocked or reduced on any side, front, or back of a unit used for air flow through the unit.
  • Page 54 CAUTION: Removing components from the upper positions in the rack cabinet improves rack stability during a relocation. Follow these general guidelines whenever you relocate a populated rack cabinet within a room or building. v Reduce the weight of the rack cabinet by removing equipment starting at the top of the rack cabinet.
  • Page 55 This symbol is marked on the frame of the rack. The PROTECTIVE EARTHING CONDUCTORS should be terminated at that point. A recognized or certified closed loop connector (ring terminal) should be used and secured to the frame with a lock washer using a bolt or stud. The connector should be properly sized to be suitable for the bolt or stud, the locking washer, the rating for the conducting wire used, and the considered rating of the breaker.
  • Page 56 CAUTION: CAUTION regarding IBM provided VENDOR LIFT TOOL: v Operation of LIFT TOOL by authorized personnel only v LIFT TOOL intended for use to assist, lift, install, remove units (load) up into rack elevations. It is not to be used loaded transporting over major ramps nor as a replacement for such designated tools like pallet jacks, walkies, fork trucks and such related relocation practices.

  • Page 57: Weight Considerations: 5U Sas Expansion Enclosure

    v Do not operate while under the influence of drugs or alcohol. v Do not support ladder against LIFT TOOL. v Tipping hazard. Do not push or lean against load with raised platform. v Do not use as a personnel lifting platform or step. No riders. v Do not stand on any part of lift.
  • Page 58 v Always use a suitably rated mechanical lift or four persons when you are performing any of the following tasks: – Removing the expansion enclosure from its packing material – Lifting and installing the expansion enclosure in the rack for the first time –...

  • Page 59: Weight Of Expansion Enclosure Parts

    Table 8. Weight of expansion enclosure parts (continued) Weight per unit Total weight FRU part Quantity description number shipped Top cover 01LJ132 3.720 8.201 3.720 8.201 Fan interface 01LJ134 0.118 0.260 0.236 0.260 board Weight of expansion enclosure SAS drives The SAS drives are shipped in a separate package from the 5U expansion enclosure.

  • Page 60: Weight Of An Enclosure With 92 Sas Drives

    Weight increases as FRUs are installed The 5U expansion enclosure supports up to 92 SAS drives. As Table 10 shows, substantial weight is added to the enclosure when all drives are installed. Table 10. Weight of an enclosure with 92 SAS drives Approximate weigh per unit Approximate extra weight Maximum...
  • Page 61 Table 11. Enclosure weight as FRUs are installed (continued) Enclosure assembly Approximate weight FRUs installed FRUs not installed 127.9 v Enclosure (01LJ607 or v Drives 01LJ112) v Cover v Secondary expansion modules v Fascia (1U and 4U) v PSUs v Expansion canisters v Fan modules v Fan interface board v Display assembly...

  • Page 62: Identify The Hardware Components: 2076-92F

    Table 11. Enclosure weight as FRUs are installed (continued) Enclosure assembly Approximate weight FRUs installed FRUs not installed 138.6 305.6 v Enclosure (01LJ607 or v Cover 01LJ112) v Secondary expansion modules v Fascia v PSUs v Expansion canisters v Fan modules v Fan interface board v 92 3.5-inch Near-Line SAS hard disk drives...

  • Page 63: Front Fascia Of The 2076-92F Expansion

    4 Power supply units (PSUs) 5 PSU fascia (1U) 6 Front fascia (4U) However, as Figure 27 shows, the 4U and 1U fascias are packaged separately. You must attach them to the front of the 2076-92F expansion enclosure as part of the initial installation process.

  • Page 64: Features On The Rear Of The 2076-92F Expansion

    Figure 28. Features on the rear of the 2076-92F expansion enclosure 1 Power cable connector for PSU 2 2 Power cable retention clamps 3 Fan module 4 Fan release latch 5 Fan fault indicator 6 Expansion canister 7 SAS ports and indicators 8 Expansion canister indicators 9 Power cable connector for PSU 1 Support rails...

  • Page 65: Unpacking And Installing The Enclosure: 2076-92F

    Figure 29. 2076-92F support rails Cable management arm The cable management arm (CMA), which consists of an upper and lower assembly, are packaged separately from the expansion enclosure. As Figure 30 shows, each CMA assembly is attached to the rear end of the support rails. Figure 30.

  • Page 66: Tray Containing Expansion Enclosure Parts

    Before you begin CAUTION: > _ 33.6-46.3 kg (74-102 lbs) 46.3-61.7 kg (102-136 lbs) 61.7-100 kg (136-220 lbs) The weight of this part or unit is more than 55 kg (121.2 lb). It takes specially trained persons, a lifting device, or both to safely lift this part or unit. (C011) CAUTION: To avoid personal injury, before lifting this unit, remove all appropriate subassemblies per instructions to reduce the system weight.

  • Page 67: Packaging Materials

    1 Slide rail kit 2 Cable management arm 3 Fascia Other parts, such as the cover, secondary expander modules, and fans, are installed in the enclosure. However, due to weight considerations, you must remove some parts and then reinstall them as part of the initial installation process. Note: Drives are not included in installation package for the enclosure;...

  • Page 68: Packaging For Fascia

    7. Separate the inner section of the support rails and attach them to each side of the expansion enclosure, as described in steps 3 on page 49 through 5 on page 49 in “Installing or replacing the support rails: 2076-92F” on page 48. 8.

  • Page 69: Removing The Top Cover: 2076-92F

    17. Remove the cable management arm assembly from its packaging ( 2 in Figure 31 on page 44). 18. Attach the cable management arm, as described in “Installing or replacing the cable-management arm: 2076-92F” on page 60. 19. Connect the SAS cables, as described in “Removing and installing a SAS cable: 2076-92F”...

  • Page 70: Installing Or Replacing The Support Rails: 2076-92F

    Figure 35. Removing the 2076-92F cover 5. Place the cover in a safe location. Replace the cover 6. To reinstall the cover, or replace it with one from FRU stock, follow the procedure in “Installing or replacing the top cover: 2076-92F” on page 65. Installing or replacing the support rails: 2076-92F You must install the support rails before you can install a 2076-92F expansion enclosure in a rack.

  • Page 71: Detaching The Inner Rail Section

    2. Select an available 5U space in your rack to install the expansion enclosure. Important notes: v When you select a rack location, ensure that the enclosure and its parts are easily accessible. Allow enough space for the lid to be easily removed and for internal components, such as drives and secondary expansion modules, to be serviced.

  • Page 72: Attaching The Inner Rail Section To The

    M4x6L Figure 39. Attaching the inner rail section to the enclosure 6. Use the M5 screws to install the outer rail member and bracket assembly to the rack, as shown in Figure 40. For example, Figure 41 on page 51 shows the front of the rail that is attached to M5x13L Rear Bracket Front Bracket...

  • Page 73: Installing Or Replacing An Expansion Enclosure In A Rack: 2076-92F

    Figure 41. Example of the required rack space 7. Repeat steps 5 on page 49 through 6 on page 50 to install the opposite rail. 8. Install the expansion enclosure in the rack, as described in “Installing or replacing an expansion enclosure in a rack: 2076-92F.” Installing or replacing an expansion enclosure in a rack: 2076-92F Use the following procedure to place the 2076-92F expansion enclosure in a rack...

  • Page 74: Example Installation Of The Enclosure In The

    Figure 42. Example installation of the enclosure in the rack v Ensure that the drives are easily accessible. Avoid installing the 2076-92F expansion enclosure above position 22U in the rack. If you are reinstalling the expansion enclosure in the rack after you performed a service task (for example, replacing the enclosure), you must also perform the following tasks: v Reinstall all of the following parts:...

  • Page 75: Replacing The 2076-92F Enclosure In The Rack

    Figure 43. Replacing the 2076-92F enclosure in the rack 2. Ensure that the ball bearing retainer clicks into place inside the front of the left and right drawer sections ( 2 in Figure 43). Reinstalling parts into the enclosure 3. If you took the enclosure out of the rack, reinstall the following parts inside of the enclosure, as described in the following Knowledge Center removal and replacement procedures.

  • Page 76: Installing Or Replacing An Expansion Canister: 2076-92F

    Installing or replacing an expansion canister: 2076-92F You can reinstall an expansion canister in a 2076-92F expansion enclosure or replace a faulty expansion canister with one from FRU stock. Before you begin Important: You can replace an expansion canister without powering off the expansion enclosure.

  • Page 77: Removing Or Moving The Cable-Management Arm: 2076-92F

    Figure 45. Install the expansion canister 5. Reconnect all the SAS cables to the appropriate SAS ports on the expansion canister, as described in “Removing and installing a SAS cable: 2076-92F” on page 82. 6. Reconnect the elbow of the lower cable management arm to the inner member of the slide rail.

  • Page 78: Upper And Lower Cable-Management Arms

    Figure 46. Upper and lower cable-management arms To complete many service tasks, you can swing the CMA assemblies away from the expansion enclosure. You do not have to completely remove the CMA assemblies from the enclosure. For these service tasks, complete step 1 on page 59 through step 4 on page 60 in “Moving the cable management arms”...

  • Page 79: Connectors For The Upper Cable Management

    Figure 47. Connectors for the upper cable management arm 1 Inner connector on the upper CMA 2 Connector base on inner rail member 3 Outer connector on the upper CMA 4 Connector base on outer rail member 5 Support rail connector on the upper CMA 6 Connector base on outer rail member 1.

  • Page 80: Components Of The Lower Cma Assembly

    Figure 48. Components of the lower CMA assembly 6. Remove the connector base on the lower CMA assembly ( 11 ) from the connector on the left support rail ( 12 ), as Figure 48. 7. Remove the inner connector of the lower CMA assembly ( 9 ) from the outer member of the right support rail ( 10 ), as shown in Figure 48.

  • Page 81: Upper And Lower Cma Assemblies Moved

    Figure 49. Upper and lower CMA assemblies moved aside Figure 50 shows that the lower CMA assembly is swung away from the rear of the enclosure so that the expansion canister is accessible. Figure 50. Lower CMA assembly moved Procedure 1.

  • Page 82: Installing Or Replacing The Cable-Management Arm: 2076-92F

    s i s Figure 51. Release the upper CMA assembly 2. Move the upper CMA to the left to swing it out of the way. a. To reattach the upper CMA to the rail, reverse the procedure. 3. To release the lower CMA, push the latch on the support rail connector 11 to release it from the connector base 12 on the left rail.

  • Page 83: Upper And Lower Cable-Management Arms

    Figure 53. Upper and lower cable-management arms As Figure 54 shows, the support rail connectors of each CMA assembly are installed on the rail hooks at the end of the support rails. Figure 54. Upper and lower cable-management arms Procedure 1.

  • Page 84: Connectors For The Cable Management Arm

    Figure 55. Connectors for the cable management arm 1 Inner connector on upper CMA 2 Connector base on inner rail member 3 Outer connector on upper CMA 4 Connector base on outer rail member 5 Support rail connector on upper CMA 6 Connector base on outer rail member 2.

  • Page 85: Install The Outer Connector Of The Upper Cma

    Figure 57. Install the outer connector of the upper CMA to the outer member of the support rail 4. Attach the support rail connector on the upper CMA assembly ( 5 ) to the connector base on the right support rail ( 6 ), as shown in Figure 58. Figure 58.

  • Page 86: Support Rails

    Figure 59. Comparing the location of the components of the CMA assemblies 7 Inner connector on lower CMA 8 Connector base on inner rail member 9 Outer connector on lower CMA 10 Connector base on outer rail member 11 Support rail connector the lower CMA 12 Connector base on outer rail member 5.

  • Page 87: Installing Or Replacing The Top Cover: 2076-92F

    Installing or replacing the top cover: 2076-92F You can replace the top cover on a 2076-92F expansion enclosure during the installation process or after you complete a service task. Before you begin Important: You can install the cover while the expansion enclosure is powered on. To maintain operating temperature, replace the cover within 15 minutes of completing other service tasks.

  • Page 88: Installing Or Replacing A Drive: 2076-92F

    Figure 61. Replacing the 2076-92F top cover 4. Verify that the cover correctly engages the cover release latch and all of the inset tabs on the expansion enclosure. 5. Lock the cover into position by sliding the release lever 4 , as shown in Figure 62 Figure 62.

  • Page 89: Drive Assembly

    management GUI. The fix procedures minimize the risk of losing data or access to data; the procedures also manage the system's use of the drive. About this task The 2076-92F expansion enclosure supports 92 drives. Figure 63 shows an example of a drive assembly.

  • Page 90: Drive Locations In A 2076-92F Expansion

    Figure 64. Drive locations in a 2076-92F expansion enclosure The drive slots must be populated sequentially, starting from the back-left corner position (slot 1, grid A1). Sequentially install the drive in the slots from left to right and back row to front. Always complete a full row before you install drives in the next row.

  • Page 91: Incorrect Drive Installation

    Figure 66. Incorrect drive installation 5. Touch the static-protective package that contains the drive to any unpainted metal surface on the enclosure. Wear an anti-static wrist strap to remove the drive from the package. 6. Ensure that the drive handle ( 1 in Figure 67 on page 70) of the drive assembly is in the open (unlocked) position.
  • Page 92 Figure 67. Replace the drive 9. Rotate the handle down to lock the drive assembly into the chassis ( 3 in Figure 67). Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 93: Installing Or Replacing A Secondary Expander Module: 2076-92F

    (L005) CAUTION: v Only an IBM Service Support Representative (SSR) can remove or replace the secondary expander module from an enclosure (FRU P/N 01LJ112) that is powered on. If the 01LJ112 enclosure is powered on, use caution and avoid contact with the connectors on the main board.

  • Page 94: Location Of Secondary Expander Modules

    v You can replace a secondary expander module without powering off the expansion enclosure. However, to maintain operating temperature, do not keep the cover off an operational enclosure for more than 15 minutes. The reduction in airflow through the enclosure might cause the enclosure or its components to shut down to protect from overheating.

  • Page 95: Leds On A Secondary Expander Module

    2. Identify the secondary expander module to be replaced; Figure 69 shows the LEDs on top of a secondary expander module. Figure 69. LEDs on a secondary expander module 1 Online indicator 2 Fault indicator 3. Rotate both handles on the new secondary expander module to an open position, as shown in Figure 70.

  • Page 96: Installing Or Replacing The Fascia: 2076-92F

    Figure 71. Replace the secondary expander module 5. Press the secondary expander module down into position in the enclosure. 6. Rotate the handles on the secondary expander module to the closed position to lock it in the enclosure. 7. If needed, repeat step 3 on page 73 through step 6 to replace the other secondary expander module.

  • Page 97: Fascia Components On The Expansion Enclosure

    Figure 72. Fascia components on the expansion enclosure Note: When the expansion enclosure is shipped, the 4U and 1U fascia are not installed. You must install them as part of the initial installation process. Procedure 1. Use the slide rails to pull the enclosure out of the rack, as described in “Removing an expansion enclosure from a rack: 2076-92F”...

  • Page 98: Installing Or Replacing A Power Supply: 2076-92F

    Figure 73. Replace fascia components on the expansion enclosure Installing or replacing a power supply: 2076-92F Use the following procedures to replace either of the redundant power supplies in the 2076-92F expansion enclosure. The redundant power supplies operate in parallel; one continues to provide power to the enclosure if the other fails. Before you begin Important: You can replace a PSU without powering off the expansion enclosure.

  • Page 99: Preparing To Install The Power Supply

    About this task This task assumes that the following conditions are met: v You removed the PSU, following the procedure described in “Removing a power supply: 2076-92F” on page 97. v You removed the fascia that covers the PSU from the front of the expansion enclosure, as described in “Removing the fascia: 2076-92F”...

  • Page 100: Install The Power Supply

    Figure 75. Install the power supply 4. Close the handles on the PSU and ensure the handle lock clicks in to place. 5. Verify that the AC input and the DC power indicators are lit on the front of the PSU, as shown in Figure 76 on page 79.

  • Page 101: Removing The Fascia: 2076-92F

    Figure 76. Power supply indicators For more information about the power supply indicators, see “ Storwize V7000 2076-92F expansion enclosure LEDs and indicators” on page 129. Removing the fascia: 2076-92F To complete some service tasks, you can remove each component of the fascia from the front of a 2076-92F expansion enclosure.

  • Page 102: Fascia Components On The Expansion Enclosure

    Figure 77. Fascia components on the expansion enclosure Procedure 1. Use the slide rails to pull the enclosure out of the rack, as described in “Removing an expansion enclosure from a rack: 2076-92F” on page 89. Ensure that a mechanical lift is available to support the weight of the enclosure. Remove the front (4U) fascia 2.
  • Page 103 Figure 78. Remove fascia components from the expansion enclosure Remove the bottom (1U) fascia 3. Gently pull on each side of the PSU fascia to remove it from the chassis, as shown in Figure 78. The PSU fascia disengages from the slot and pin that connect it to each side of the chassis.

  • Page 104: Removing And Installing A Sas Cable: 2076-92F

    Figure 79. Fascia removed from the PSUs Replace the fascia 4. To reinstall the front or PSU fascia, or replace them with parts from FRU stock, follow the procedure in “Installing or replacing the fascia: 2076-92F” on page Removing and installing a SAS cable: 2076-92F Use the following procedures to attach SAS cables to the 2076-92F enclosure during the initial installation process.

  • Page 105: Correct Orientation For Sas Cable Connectors

    1. Locate the connector at the end of the SAS cable that is to be removed from the expansion enclosure. 2. Grasp the connector by its blue tag. Pull the tag. 3. Release the connector and slide it out of the SAS port. 4.

  • Page 106: Example Of Sas Cables Routed Through The Cable Management Arms

    Figure 81. Example of SAS cables routed through the cable management arms 9. When both ends of a SAS cable are correctly connected, the green link-LED next to the connected SAS ports are lit. For example, Figure 82 on page 85 shows the LEDs of expansion canister 1 on a 2076-92F expansion enclosure.

  • Page 107: Installing Or Replacing A Fan Module: 2076-92F

    Figure 82. SAS cable correctly inserted into the SAS port Installing or replacing a fan module: 2076-92F You can reinstall a fan module or replace a faulty fan module in a 2076-92F expansion enclosure. Before you begin Important: You can replace a fan module without powering off the expansion enclosure.

  • Page 108: Installing Or Replacing A Fan Interface Board: 2076-92F

    Figure 83. Fan module orientation 2. Carefully insert the fan module into the chassis until it clicks in place, as shown in Figure 84. Replacing all fan modules Figure 84. Replace fan module 3. Repeat steps 1 on page 85 and 2 for each fan module to be replaced. 4.

  • Page 109: Fib Parts For The Chassis

    v The expansion enclosure is removed from the rack, as described in “Removing an expansion enclosure from a rack: 2076-92F” on page 89. v A lift is supporting the weight of the enclosure. v The top cover, fans, drives, and other heavy FRUs are removed from the enclosure.

  • Page 110: Insert The New Fib In The Chassis

    Figure 86. Insert the new FIB in the chassis 3. Use a cross head screwdriver to tighten the retaining screws that secure the FIB to the drive board, as shown in Figure 87. Figure 87. Secure the FIB to the drive board Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 111: Removing An Expansion Enclosure From A Rack: 2076-92F

    4. If needed, repeat steps 2 on page 87 and 3 on page 88 to replace the other FIB. 5. Replace the narrow metal cover, which is shown in Figure 88, over the FIB assemblies. The attachment screws are on each side of the chassis. Figure 88.
  • Page 112 (L003) Use the reference numbers in parentheses at the end of each notice (for example, D005) to find the matching translated notice in IBM Storwize V7000 Safety Notices. DANGER: Observe the following precautions when working on or around your IT rack system: v Heavy equipment–personal injury or equipment damage might result if mishandled.
  • Page 113 CAUTION: v Do not install a unit in a rack where the internal rack ambient temperatures will exceed the manufacturer's recommended ambient temperature for all your rack-mounted devices. v Do not install a unit in a rack where the air flow is compromised. Ensure that air flow is not blocked or reduced on any side, front, or back of a unit used for air flow through the unit.
  • Page 114 CAUTION: Removing components from the upper positions in the rack cabinet improves rack stability during a relocation. Follow these general guidelines whenever you relocate a populated rack cabinet within a room or building. v Reduce the weight of the rack cabinet by removing equipment starting at the top of the rack cabinet.
  • Page 115 This symbol is marked on the frame of the rack. The PROTECTIVE EARTHING CONDUCTORS should be terminated at that point. A recognized or certified closed loop connector (ring terminal) should be used and secured to the frame with a lock washer using a bolt or stud. The connector should be properly sized to be suitable for the bolt or stud, the locking washer, the rating for the conducting wire used, and the considered rating of the breaker.
  • Page 116 CAUTION: CAUTION regarding IBM provided VENDOR LIFT TOOL: v Operation of LIFT TOOL by authorized personnel only v LIFT TOOL intended for use to assist, lift, install, remove units (load) up into rack elevations. It is not to be used loaded transporting over major ramps nor as a replacement for such designated tools like pallet jacks, walkies, fork trucks and such related relocation practices.
  • Page 117 v Do not operate while under the influence of drugs or alcohol. v Do not support ladder against LIFT TOOL. v Tipping hazard. Do not push or lean against load with raised platform. v Do not use as a personnel lifting platform or step. No riders. v Do not stand on any part of lift.

  • Page 118: Removing The 2076-92F Enclosure From The

    even after you remove the drives, power supply units, secondary expander modules, canisters, fans, and cover, the enclosure weighs 43 kg (95 lbs). Procedure Sliding the expansion enclosure out of the rack Note: You can accomplish most service actions when the expansion enclosure is fully extended from the rack on its slide rails.

  • Page 119: Removing A Power Supply: 2076-92F

    7. With the help of multiple persons or a mechanical lift, lift and remove the enclosure from the rack. Replace the enclosure in the rack 8. To reinstall or return the expansion enclosure in the rack, follow the procedure in “Installing or replacing an expansion enclosure in a rack: 2076-92F” on page Removing a power supply: 2076-92F You can remove either of the redundant power supply units in a 2076-92F expansion enclosure.

  • Page 120: Releasing The Power Supply Handles

    Figure 90. Releasing the power supply handles 5. Carefully pull the PSU out of the expansion enclosure chassis and place it in a safe location, as shown in Figure 91 on page 99. Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 121: Removing A Drive: 2076-92F

    Figure 91. Removed power supply 6. If you are instructed to return the power supply, follow all packaging instructions. Use any packaging materials for shipping that are supplied to you. Replace the power supply 7. To reinstall the PSU, or replace it with one from FRU stock, follow the procedure in “Installing or replacing a power supply: 2076-92F”...

  • Page 122: Drive Assembly

    Important: You can remove a drive assembly without powering off the expansion enclosure. However, to maintain operating temperature, complete the following tasks. v Do not remove a faulty drive assembly until its replacement is ready to be installed. v Do not keep the cover off an operational enclosure for more than 15 minutes. The reduction in airflow through the enclosure might cause the enclosure or its components to shut down to protect from overheating.

  • Page 123: Drive Locations In A 2076-92F Expansion Enclosure

    The drive locations are also marked on the enclosure itself. The rows (A-G) are marked on the left and right edges of the enclosure. The columns (1-14) are marked on the front edge of the enclosure. The row and column marks are visible when the top cover is removed.

  • Page 124: Removing A Secondary Expander Module: 2076-92F

    Figure 94. Remove the drive assembly 6. Lift the handle ( 2 ) to unlock the drive carrier from the partition, as shown in Figure 94. Ensure the toe on the bottom of the latch is fully disengaged. 7. Carefully lift the drive carrier up to remove it from the expansion enclosure. 8.
  • Page 125 (L005) CAUTION: v Only an IBM Service Support Representative (SSR) can remove or replace the secondary expander module from an enclosure (FRU P/N 01LJ112) that is powered on. If the 01LJ112 enclosure is powered on, use caution and avoid contact with the connectors on the main board.

  • Page 126: Location Of Secondary Expander Modules

    communicate only with SAS port 1 on each drive. Similarly, if secondary expander module 1 is missing or is faulty, the expansion canisters can communicate only with SAS port 2 on each drive. The two secondary expansion modules are already installed when the 2076-92F expansion enclosure is shipped, as Figure 95 shows.
  • Page 127 Table 12. LEDs on the secondary expander modules Color Status Description Power 1 Green The secondary expander module is receiving power. The secondary expander module is not receiving power. Fault 2 Amber Not used. Blink The secondary expander module is being identified. Normal operation.

  • Page 128: Remove The Secondary Expander Module

    Figure 97. Remove the secondary expander module Important: To avoid electric shock after you remove the secondary expander module, do not touch the connectors inside the enclosure (FRU P/N 01LJ112), which are shown in Figure 98. Figure 98. Secondary expander module connectors 5.

  • Page 129: Removing An Expansion Canister: 2076-92F

    Figure 99. Secondary expander module removed from the enclosure 6. If needed, repeat step 2 on page 105 through step 5 on page 106 to remove the other secondary expander module. Replace the secondary expansion module 7. To reinstall the secondary expansion module, or replace it with one from FRU stock, follow the procedure in “Installing or replacing a secondary expander module: 2076-92F”...

  • Page 130: Removing The Expansion Canister

    Figure 100. Expansion canister 1 Canister fault indicator 2 Canister status 3 Canister power indicator 4 and 6 SAS link fault indicators 5 and 7 SAS link operational indicators 8 Canister release handles Procedure 1. Read all safety information. 2. Locate the expansion canister to be removed. 3.

  • Page 131: Removing A Fan Module: 2076-92F

    7. To reinstall an expansion canister, or replace it with one from FRU stock, follow the procedure in “Installing or replacing an expansion canister: 2076-92F” on page 54. Removing a fan module: 2076-92F You can remove a faulty fan module from a 2076-92F expansion enclosure. Before you begin Important: You can remove a fan module without powering off the expansion enclosure.

  • Page 132: Removing A Fan Interface Board: 2076-92F

    Figure 103. Fan module release tab 3. Use the handle to pull the fan module out of the expansion enclosure chassis, as shown in Figure 104. Figure 104. Remove fan module 4. Repeat steps 2 on page 109 and 3 for each additional fan module you need to remove.

  • Page 133: Fan Module Led

    Before you begin This task assumes that the following conditions were met: v All power cables were removed from the enclosure, as described in “Powering off the expansion enclosure: 2076-92F” on page 129. v The top cover, fan modules, and the other heavy FRUs (drives, secondary expander modules) were removed before the enclosure was removed from the rack.

  • Page 134: Location Of The Fib Cover

    Figure 106. Location of the FIB cover 2. Use a cross head screwdriver to loosen the retaining screws on the FIB, as shown in Figure 107 on page 113. Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 135: Loosen The Fib Screws

    Figure 107. Loosen the FIB screws 3. Use the handle to pull the FIB out of the expansion enclosure chassis, as shown in Figure 108. Figure 108. Remove the FIB from the chassis Chapter 2. Installing the system hardware...

  • Page 136: Replacing An Enclosure: 2076-92F

    4. Place the FIB (shown in Figure 109) in a safe location. Figure 109. FIB parts removed from the chassis 5. If needed, repeat steps 2 on page 112 through 3 on page 113 to remove the other FIB. Replace the fan interface board 6.
  • Page 137 (C012) Notes: v Perform the following procedure only if directed to do so by IBM Remote Technical support or by a fix procedure in the management GUI. v An enclosure can have FRU P/N 01LJ112 or FRU P/N 01LJ607. When needed, an enclosure with FRU P/N 01LJ607 is used to replace FRU P/N 01LJ112.

  • Page 138: Removing The Display Panel Assembly: 2076-92F

    Procedure 1. Remove the front display (4U) and PSU (1U) fascia from the old enclosure, as described in “Removing the fascia: 2076-92F” on page 79. a. Install the front display (4U) and PSU (1U) fascia on the new enclosure, as described in “Installing or replacing the fascia: 2076-92F”...

  • Page 139: Removing The Display Panel Assembly

    Figure 110. Removing the display panel assembly 4. Carefully pull the display panel assembly, which is shown in Figure 111 on page 118, out of the chassis. Chapter 2. Installing the system hardware...

  • Page 140: Installing Or Replacing The Display Panel Assembly: 2076-92F

    Figure 111. Display panel assembly Replace the display panel assembly 5. To reinstall the display panel assembly, or replace it with one from FRU stock, follow the procedure in “Installing or replacing the display panel assembly: 2076-92F.” Installing or replacing the display panel assembly: 2076-92F You can replace the display panel assembly in a 2076-92F expansion enclosure.
  • Page 141 About this task This task assumes that the following conditions were met: v The expansion enclosure was moved out from the rack on the slide rails, as described in “Removing an expansion enclosure from a rack: 2076-92F” on page v The top cover was removed, as described in “Removing the top cover: 2076-92F” on page 47.

  • Page 142: Display Panel Assembly

    Figure 112. Display panel assembly 2. Carefully align the display panel assembly in the slot at the front of the expansion enclosure, as shown in Figure 113 on page 121. Ensure the display panel assembly, which is shown in Figure 112, faces toward the outside of the chassis.

  • Page 143: Removing The Support Rails: 2076-92F

    Figure 113. Installing the display panel assembly 3. Insert the display panel assembly until it clicks into position. 4. Replace the top cover, as described in “Installing or replacing the top cover: 2076-92F” on page 65. 5. Ensure the LEDs on the display panel are lit correctly. See “ Storwize V7000 2076-92F expansion enclosure LEDs and indicators”...

  • Page 144: Connecting Optional Sas Expansion Enclosures: 2076-92F

    Figure 115. Remove the rail assembly from the rear frame bracket 4. Pull the rail forward, away from the rear bracket, as shown in Figure 115. 5. Repeat step 1 on page 121 through step 4 for the other side of the rail assembly. Replace the support rails 6.
  • Page 145 v No cable can be connected between a port on a left canister and a port on a right canister of the expansion enclosures. v Ensure that cables are installed in an orderly way to reduce the risk of cable damage when replaceable units are removed or inserted.

  • Page 146: Connecting The Sas Cables

    Figure 117. Connecting the SAS cables 2. If more I/O groups are configured, repeat the cabling procedure for the other I/O groups. Each system can have a maximum of four I/O groups, with two chains of expansion enclosures attached to each I/O group. Two chains of expansion enclosures can be attached to each I/O group.

  • Page 147: Powering On The Optional 2076-92F Expansion Enclosures

    Example Table 13 shows example of different combinations of SAS weights. Table 13. Examples of supported SAS chain combinations Combined chain 2145-12F Enclosures Enclosures 2076-92F Enclosures weight 4.5 (as shown in Figure 117 on page 124) In addition, the orientation of the Input and Output SAS ports on the 2U and 5U SAS enclosures differs.

  • Page 148: Features On The Front Of The 2076-92F

    v To support the 2076-92F expansion enclosure, a Storwize V7000 Gen2 or Storwize V7000 Gen2+ system requires software version 7.8.0. If software version 7.8.0 is not installed on the system, do not connect or power on the expansion enclosure. The Storwize V7000 2076-724 control enclosure (Gen3) requires software version 8.2.0 at the latest available fix level or later.

  • Page 149: Secure Power Cables

    2. Secure the power cables in the cable retainer at each power connector on the rear of the enclosure, as shown in Figure 120. Also, ensure that each cable is installed along one of the cable management arms. The cable management arms also support the SAS cables.

  • Page 150: Power And Sas Cable Connections On The Back

    Figure 121. Power and SAS cable connections on the back of the enclosure 3. Verify that the expansion enclosure and its components are operating as expected. On the back of the expansion enclosure, all four fans and the expansion canister indicators ( 3 and 8 in Figure 122) become active when the power is connected.

  • Page 151: Powering Off The Expansion Enclosure: 2076-92F

    7 SAS ports and indicators 8 Expansion canister indicators 9 Power cable connector for PSU 1 4. Verify that the system recognizes the expansion enclosure. In the management GUI, view information about the system status and the expansion enclosure. v If a new expansion enclosure was installed, make sure that the enclosure was discovered by the system.

  • Page 152: Leds On The Front Of The Expansion Enclosure

    LEDs on the front of the expansion enclosure As Figure 123 shows, the front of the 2076-92F expansion enclosure contains LEDs for the display panel ( 1 ) and for each of the power supply units ( 3 ). Figure 123. LEDs on the front of the expansion enclosure 1 Display panel LEDs 2 Rack retention thumb screws 3 Power supply unit LEDs...

  • Page 153: Leds On The Front Of A Power Supply Unit

    Table 14. Display panel LEDs (continued) Function Color Status Description Enclosure fault Amber The expansion enclosure is coming up or a fault is detected against a component within the enclosure. No faults are detected. The 2076-92F expansion enclosure contains two PSUs ( 4 in Figure 123 on page 130) that are accessible from the front of the enclosure.

  • Page 154: Leds On A Drive Assembly

    Figure 125 shows the components of a drive assembly. Each drive has an online indicator ( 2 ) and fault indicator ( 3 ). Figure 125. LEDs on a drive assembly Table 16 describes the meaning of the LEDs on each drive. Table 16.

  • Page 155: Leds On A Secondary Expansion Module

    Figure 126. LEDs on a secondary expansion module 1 Online indicator 2 Fault indicator Table 17 describes the meaning of the LEDs on each secondary expansion module. Table 17. LED indicators on secondary expansion modules Function Color Status Description 1 Power Green The secondary expansion module is receiving power.

  • Page 156: Module

    Drive 79 Drive 65 Drive 53 Drive 41 Drive 29 Drive 15 Drive 01 Drive 80 Drive 66 Drive 54 Drive 42 Drive 30 Drive 16 Drive 02 Drive 81 Drive 67 Drive 55 Drive 43 Drive 31 Drive 17 Drive 03 Canister PSU 1...

  • Page 157: Leds On The Back Of The Expansion Enclosure

    Table 18. LEDs on drives and secondary expansion modules (continued) Function Color Status Description Fault Amber v A fault occurred on the drive. The LED is turned off when the drive is removed and replaced. v Not used for secondary expansion modules.

  • Page 158: Expansion Canister And Sas Port Leds

    Figure 129. The LEDs provide status information about the expansion canister itself and the SAS connections. Figure 129. LEDs on the back of the expansion canister 1 Canister fault 2 Canister status 3 Canister power 4 and 6 SAS link fault 5 and 7 SAS link operational 8 Canister release handles Table 19 describes the values and meaning of each LED.

  • Page 159: Storwize V7000 2076-92F Expansion Enclosure Parts

    Table 19. Expansion canister and SAS port LEDs (continued) Name Color State Meaning 4 and 6 SAS link fault Amber No faults are detected. All four phys have a link connection. Several error conditions are possible: v Only 1, 2, or 3 phys are connected, but not all 4.

  • Page 160: Other Expansion Enclosure Parts

    P/N 01LJ112) Note: The secondary expansion modules are Tier 2 CRUs. You can replace them or 01LJ860 (for use request that they be replaced by IBM with enclosure FRU Service. For example, if the enclosure is P/N 01LJ607 FRU P/N 01LJ112 and it is powered on,...

  • Page 161: Connecting Ethernet Cables To The Node Canisters

    Table 21. Other expansion enclosure parts (continued) Description FRU part number Comments Fan interface board 01LJ134 Connecting Ethernet cables to the node canisters On systems, the control enclosure has several Ethernet ports present or optionally present on the rear of each node canister. Ports 1 and 2 provide access to system management facilities.

  • Page 162: Connecting Fibre Channel Cables To A 10 Gbps Iscsi-Fcoe 4-Port Host Interface Adapter

    Connecting Fibre Channel cables to a 10 Gbps iSCSI-FCoE 4-port host interface adapter If 10 Gbps iSCSI-FCoE 4-port host interface adapters are installed on your system, you can use Fibre Channel cables to connect them to your 10 Gbps Ethernet or FCoE SAN.

  • Page 163: Example Configuration With Two Fibre

    Figure 132 shows an example configuration with two Fibre Channel cables connected to each canister. Figure 132. Example configuration with two Fibre Channel cables per canister 2. If you want to connect additional Fibre Channel cables, make sure to connect the same number of cables to each canister.

  • Page 164: Configuration Details For Using Rdma-Capable

    v Configure the network so that every node canister has at least two connections to every node canister in a different control enclosure. v You must configure the network before you attempt to add a control enclosure to an existing system. Configuration details for using RDMA-capable Ethernet ports for node-to-node communications Before you configure a system to use RDMA-capable Ethernet ports for...

  • Page 165: Powering On The System

    For a list of the system hardware models that support RDMA-capable Ethernet ports, see the following website: http://www-03.ibm.com/systems/support/storage/ssic/interoperability.wss For other information about using RDMA-capable Ethernet ports on the system, go to the following website and search for Configuration Limits and Restrictions: www.ibm.com/support...

  • Page 166: Expansion Canister

    Use the cable retainers to secure the power cables from being accidentally pulled out of the enclosure. The cable retainer, which is on the back of each PSU handle, has a curved opening that faces the rear of the PSU. After you plug the power cables in to the PSU, slip the power cable behind the retainer.

  • Page 167: Node Canister Leds

    4. Power on the control enclosure. Use the supplied power cords to connect both power supply units of the enclosure to their power sources. If the power sources have circuit breakers or switches, ensure that they are turned on. The enclosure does not have power switches.
  • Page 168 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 169: Chapter 3. Configuring The System

    Microsoft Internet Explorer (IE) 11 and Microsoft Edge 42 v Google Chrome 70 IBM supports higher versions of the browsers if the vendors do not remove or disable function that the product relies upon. For browser levels higher than the versions that are certified with the product, customer support accepts usage-related and defect-related service requests.
  • Page 170 Procedure To configure your web browser, follow these steps: 1. Enable JavaScript for your web browser. For Mozilla Firefox, JavaScript is enabled by default and requires no additional configuration. For Microsoft Internet Explorer (IE) 11 and Microsoft Edge running on Microsoft Windows 10, JavaScript is enabled by default and requires no additional configuration.

  • Page 171: User Name And Password For System Initialization

    d. Select Accept cookies from sites to enable cookies. e. Click OK. f. Refresh the browser. For Microsoft Internet Explorer, complete the following steps: a. In Internet Explorer, click Tools > Internet Options. b. Click Privacy. Under Settings, move the slider to the bottom to allow all cookies.

  • Page 172: Initializing The System By Using The Technician Port

    Table 22. Default user name and password for the initialization GUI User name Password superuser passw0rd Note: The 0 character in the password is the number zero, not the letter “O”. Initializing the system by using the technician port To initialize a new system, you must connect a personal computer to the technician port on the rear of a node canister and run the initialization tool.

  • Page 173: Adding An Expansion Enclosure To An Existing System

    Refer to “Problem: Cannot initialize or create a Storwize V7000 system” in the Troubleshooting > Resolving a problem section of the Storwize V7000 IBM Knowledge Center. 6. Follow the instructions that are presented by the initialization tool to configure the system with a name and management IP address.

  • Page 174: Adding A Control Enclosure To An Existing System

    Adding a control enclosure to an existing system To add a control enclosure to an existing system, you must first install it in the rack. Then, you must connect it to the system through a zone in the SAN or by using RDMA over Ethernet.

  • Page 175: Appendix A. Accessibility Features For The System

    See your browser or screen-reader software Help for a list of keyboard shortcuts that it supports. IBM and accessibility See the IBM Human Ability and Accessibility Center for more information about the commitment that IBM has to accessibility. © Copyright IBM Corp. 2014, 2018...
  • Page 176 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 177: Appendix B. Where To Find The Statement Of Limited Warranty

    Storwize V7000 IBM Knowledge Center. The Statement of Limited Warranty is included (in hardcopy form) with your product. It can also be ordered from IBM (see Table 2 on page xx for the part number). © Copyright IBM Corp. 2014, 2018...
  • Page 178 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 179: Notices

    Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead.
  • Page 180 The materials at those websites are not part of the materials for this IBM product and use of those websites is at your own risk. IBM may use or distribute any of the information you provide in any way it believes appropriate without incurring any obligation to you.

  • Page 181: Trademarks

    IBM, therefore, cannot guarantee or imply reliability, serviceability, or function of these programs. The sample programs are provided "AS IS", without warranty of any kind. IBM shall not be liable for any damages arising out of your use of the sample programs.

  • Page 182: Germany Notice

    Member States relating to electromagnetic compatibility. IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.

  • Page 183: Japan Electronics And Information Technology Industries Association (Jeita) Notice

    IBM Deutschland GmbH Technical Relations Europe, Abteilung M456 IBM-Allee 1, 71139 Ehningen, Germany Tel: +49 800 225 5426 e-mail: Halloibm@de.ibm.com Generelle Informationen: Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55032 Klasse Japan Electronics and Information Technology Industries Association (JEITA) Notice This statement applies to products less than or equal to 20 A per phase.

  • Page 184: Japan Voluntary Control Council For Interference (Vcci) Notice

    Japan Voluntary Control Council for Interference (VCCI) Notice Korea Notice People's Republic of China Notice Russia Notice Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 185: Taiwan Notice

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors, or by unauthorized changes or modifications to this equipment.
  • Page 186 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...

  • Page 187: Index

    139 ports 7 switch 139, 140 node canister user name 149 expansion canister Ethernet cables 139 2076-92F 129 Fibre Channel cables 140 data ports 8 LEDs 145 LEDs 129 notices ix © Copyright IBM Corp. 2014, 2018...
  • Page 188 web browsers configuring 147 requirements 147 websites xx Storwize V7000 Gen2 and Gen2+: Quick Installation Guide...
  • Page 190 IBM® Printed in USA...

This manual is also suitable for:

Storwize v7000 gen2Mtm 2076-524Mtm 2076-624Mtm 2076-u7aMtm 2076-af6Mtm 2076-92f

Table of Contents
