Components Of The Lower Cma Assembly - IBM Storwize V7000 Gen2+ Quick Installation Manual

12
11

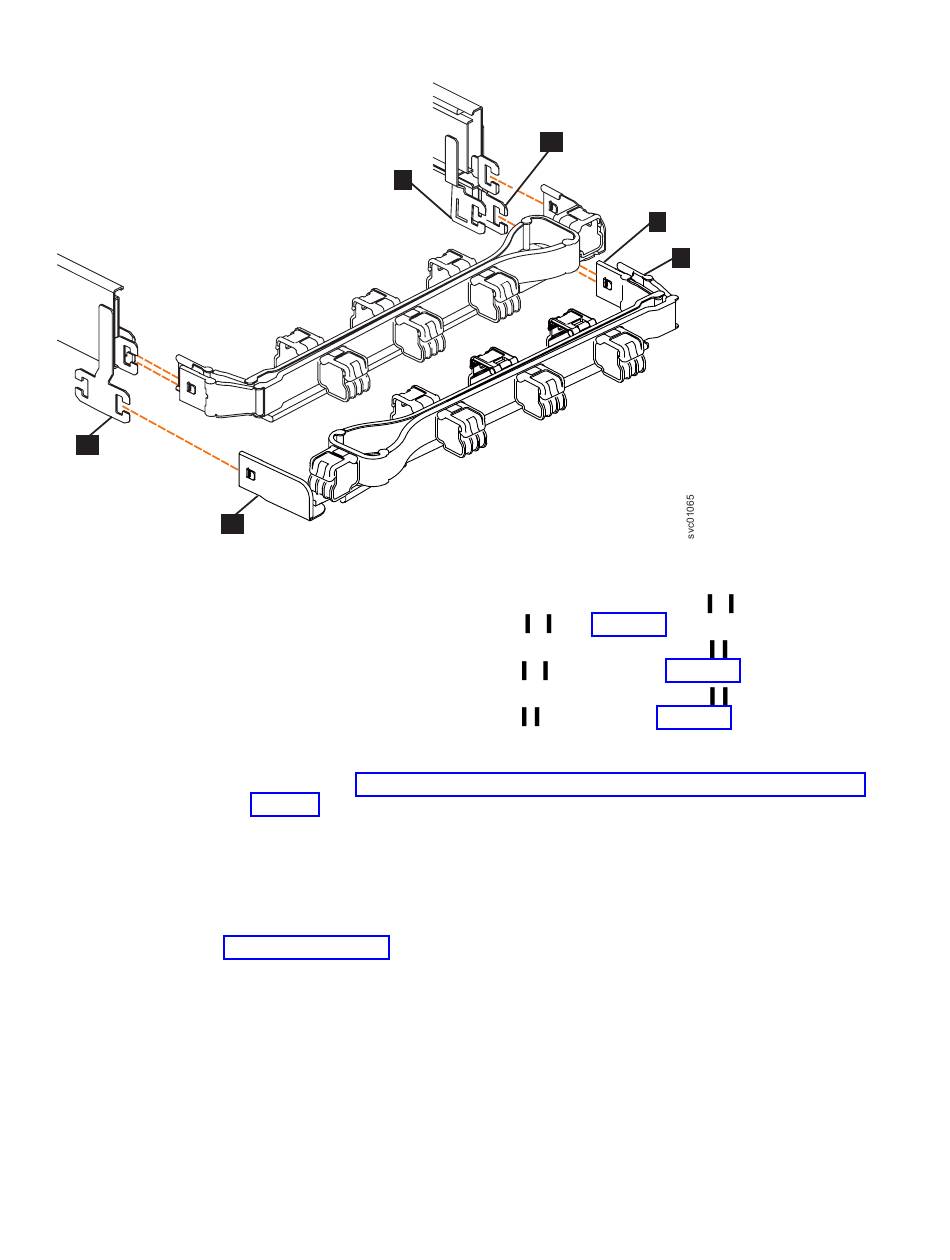

Figure 48. Components of the lower CMA assembly
6. Remove the connector base on the lower CMA assembly ( 11 ) from the
7. Remove the inner connector of the lower CMA assembly ( 9 ) from the outer
8. Remove the outer connector of the lower CMA assembly ( 7 ) from the inner
Replace the CMA assembly
9. To reinstall the CMA, or replace it with one from FRU stock, follow the
Moving the cable management arms
About this task
To complete most service tasks, you can swing the CMA assemblies out of the way.
You can move each arm independently or you can move both arms. For example,
Figure 49 on page 59 shows that both of the CMA assemblies are swung away
from the rear of the enclosure.
58
Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
8
connector on the left support rail ( 12 ), as Figure 48.
member of the right support rail ( 10 ), as shown in Figure 48.
member of the right support rail ( 8 ), as shown in Figure 48.
procedure in "Installing or replacing the cable-management arm: 2076-92F" on
page 60.
10
7
9
