Installing Or Replacing The Fascia: 2076-92F; Replace The Secondary Expander Module; Replace The Top Cover, As Described In "Installing Or Replacing The Top Cover: 2076-92F; Or Replacing The Fascia: 2076-92F - IBM Storwize V7000 Gen2+ Quick Installation Manual

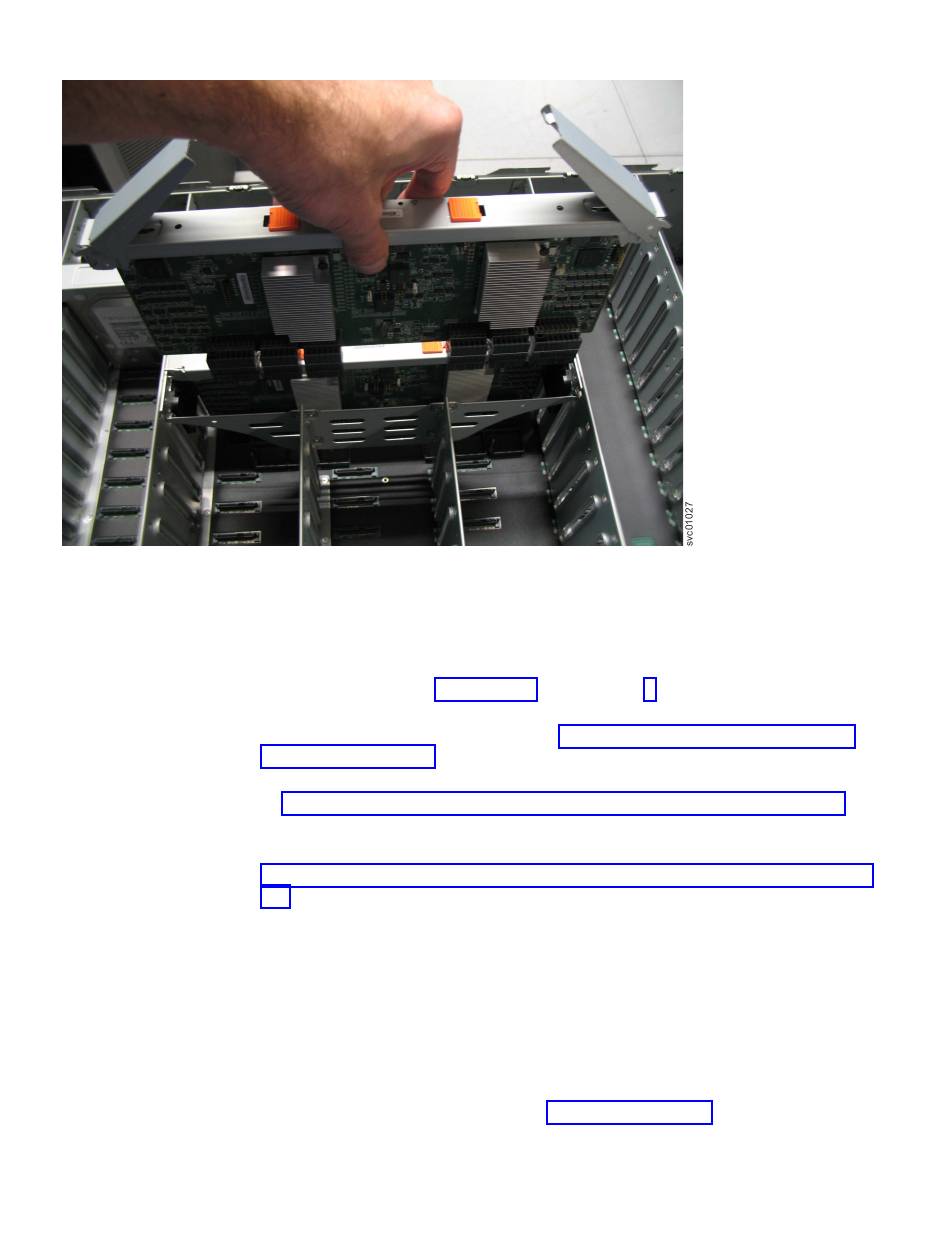

Figure 71. Replace the secondary expander module
10. Check the LEDs on the top of the secondary expander module to verify that it

Installing or replacing the fascia: 2076-92F

During the initial installation process or after you perform service, you can install
the fascia components on the front of a 2076-92F expansion enclosure.
About this task
The 4U fascia covers the display panel of the expansion enclosure. It is attached to
the enclosure by four screws. The bottom 1U fascia covers both of the power
supply units (PSUs) on the enclosure. As Figure 72 on page 75 shows, the fascias
are independent; you can remove or replace one without having to remove or
replace the other.
74
Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
5. Press the secondary expander module down into position in the enclosure.
6. Rotate the handles on the secondary expander module to the closed position
to lock it in the enclosure.
7. If needed, repeat step 3 on page 73 through step 6 to replace the other
secondary expander module.
8. Replace the top cover, as described in "Installing or replacing the top cover:
2076-92F" on page 65.
9. If needed, reconnect the power cables to the expansion enclosure, as described
in "Powering on the optional 2076-92F expansion enclosures" on page 125.
is receiving power.
" Storwize V7000 2076-92F expansion enclosure LEDs and indicators" on page
129 describes the status indicated by the LEDs.
