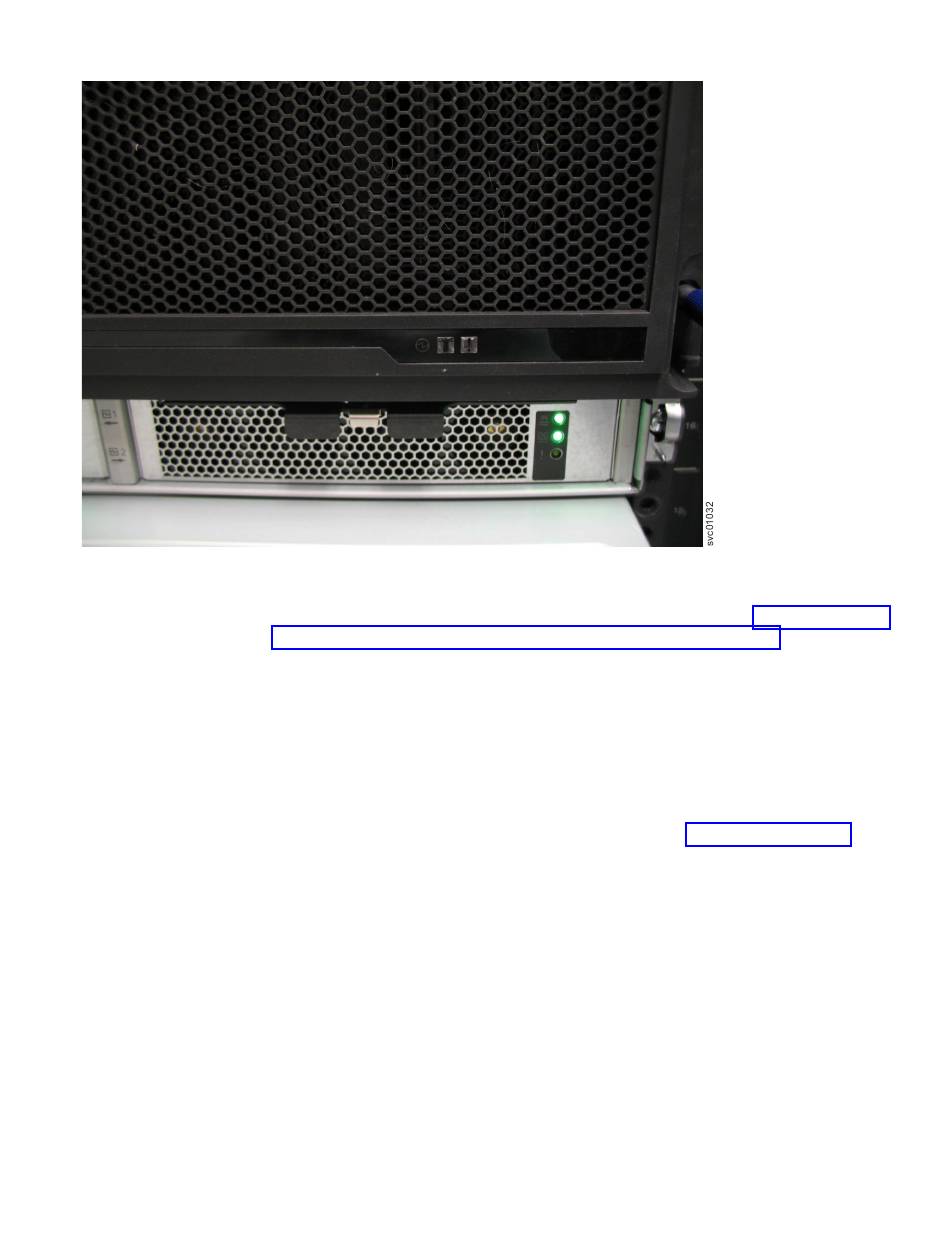

Figure 76. Power supply indicators
Removing the fascia: 2076-92F
To complete some service tasks, you can remove each component of the fascia from
the front of a 2076-92F expansion enclosure.
About this task
The expansion enclosure has a 4U front fascia that covers the display panel and a
1U fascia that covers the power supply units (PSUs). As Figure 77 on page 80
shows, the fascias are independent; you can remove or replace one without having
to remove or replace the other.
For more information about the power supply indicators, see " Storwize V7000
2076-92F expansion enclosure LEDs and indicators" on page 129.
Chapter 2. Installing the system hardware
79
