About this task
This task assumes that the following conditions are met:
v You removed the PSU, following the procedure described in "Removing a power
v You removed the fascia that covers the PSU from the front of the expansion
v You are aware of the procedures for handling static-sensitive devices.
Procedure
1. Read all safety information.
2. Rotate the handles on the PSU outward, as shown in Figure 74.

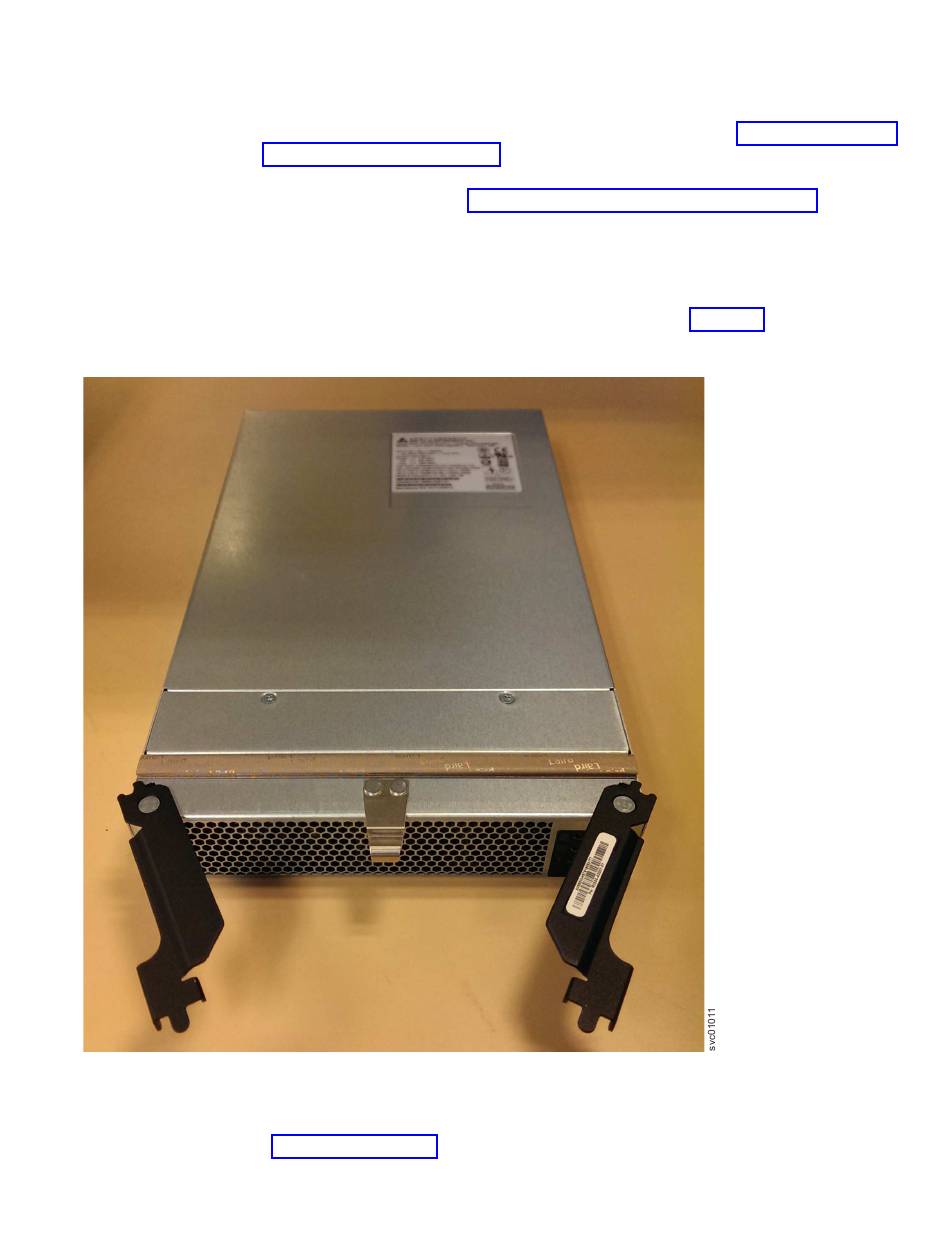

Figure 74. Preparing to install the power supply
3. Slide the PSU forward into the chassis until it clicks in to place, as shown in
supply: 2076-92F" on page 97.
enclosure, as described in "Removing the fascia: 2076-92F" on page 79.
Figure 75 on page 78.
Chapter 2. Installing the system hardware
77
