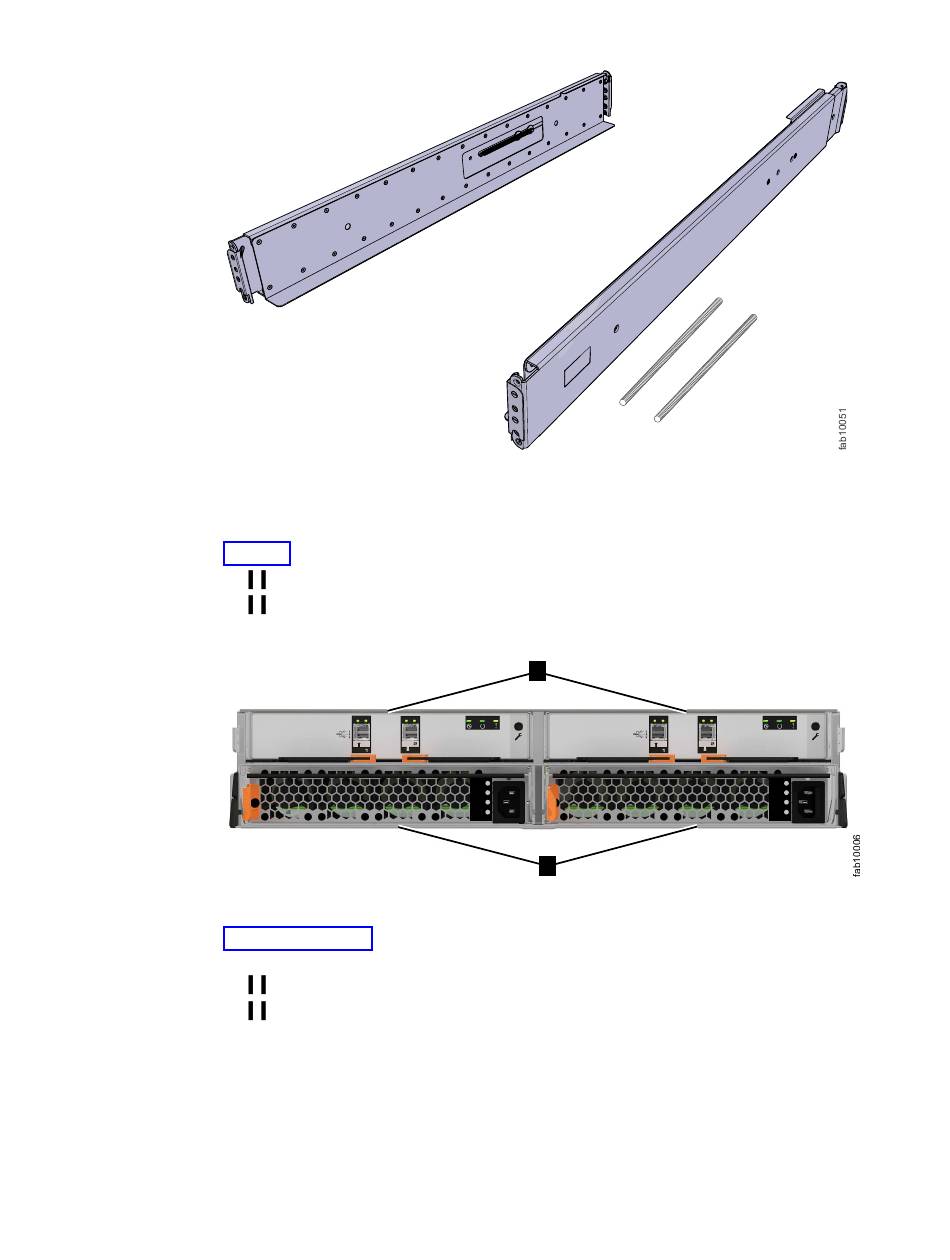

Figure 3. Control enclosure support rails
Expansion enclosure components
Figure 4 shows the location of the power supply units and expansion canisters.
v
v
Figure 4. Rear view of a Storwize V7000 expansion enclosure
Figure 5 on page 9 shows the LEDs and SAS port locations from the rear view of
an expansion canister.
v
v
Each canister has two SAS ports that are numbered 1 on the left and 2 on the right.
Port 1 is used to connect to a SAS expansion port on a node canister or port 2 of
another expansion canister.
8
Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
1 Expansion canisters
2 Power supply units
1 LEDs
2 SAS ports
1
IN
DC
!
OK
2
IN
DC
!
OK
