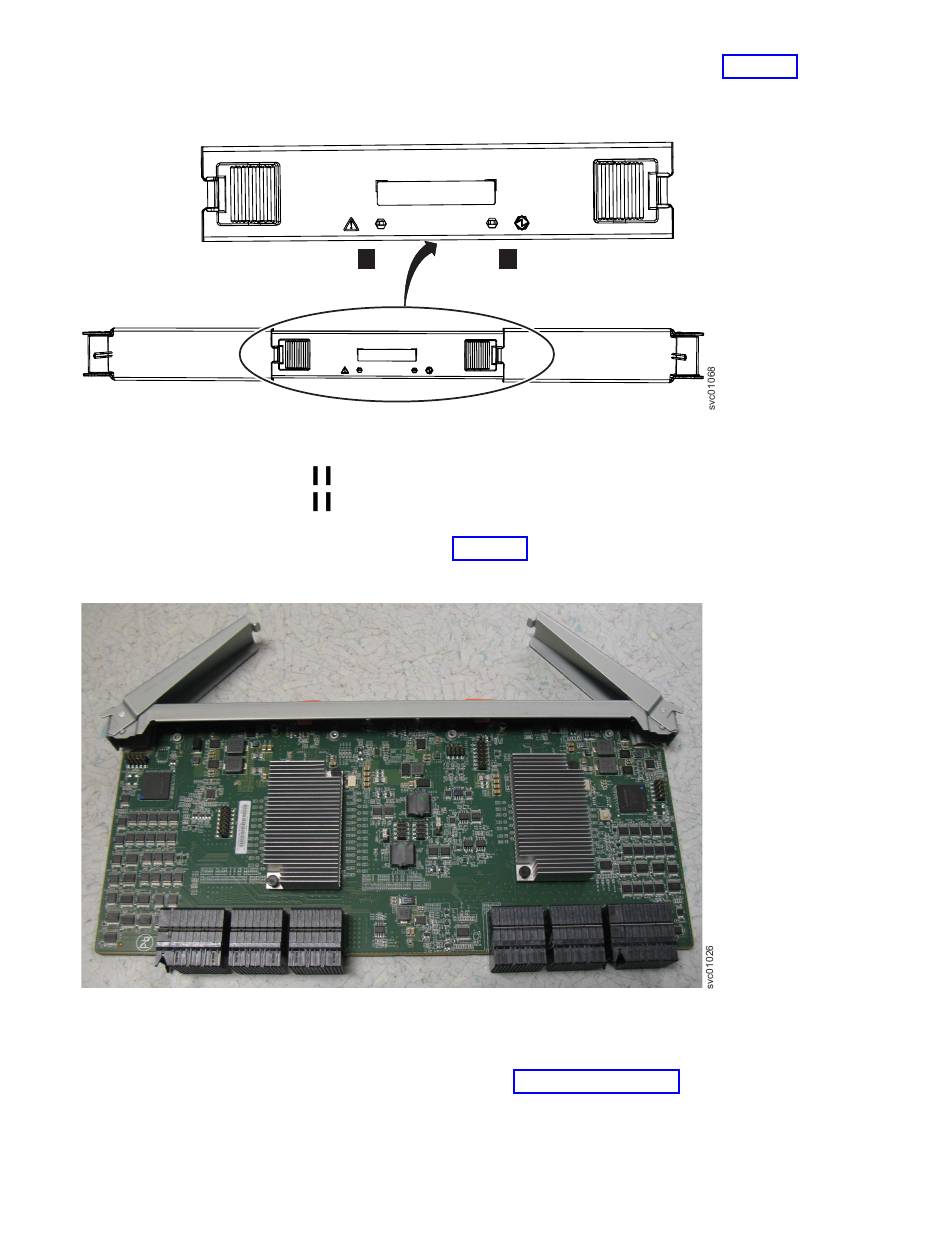

Figure 69. LEDs on a secondary expander module
Figure 70. Open the secondary expander module handles
2. Identify the secondary expander module to be replaced; Figure 69 shows the
LEDs on top of a secondary expander module.
2
1 Online indicator
2 Fault indicator
3. Rotate both handles on the new secondary expander module to an open
position, as shown in Figure 70.
4. Align the edges of the secondary expander module carefully in the guide slot
in the enclosure, as shown in Figure 71 on page 74.
1
Chapter 2. Installing the system hardware
73
