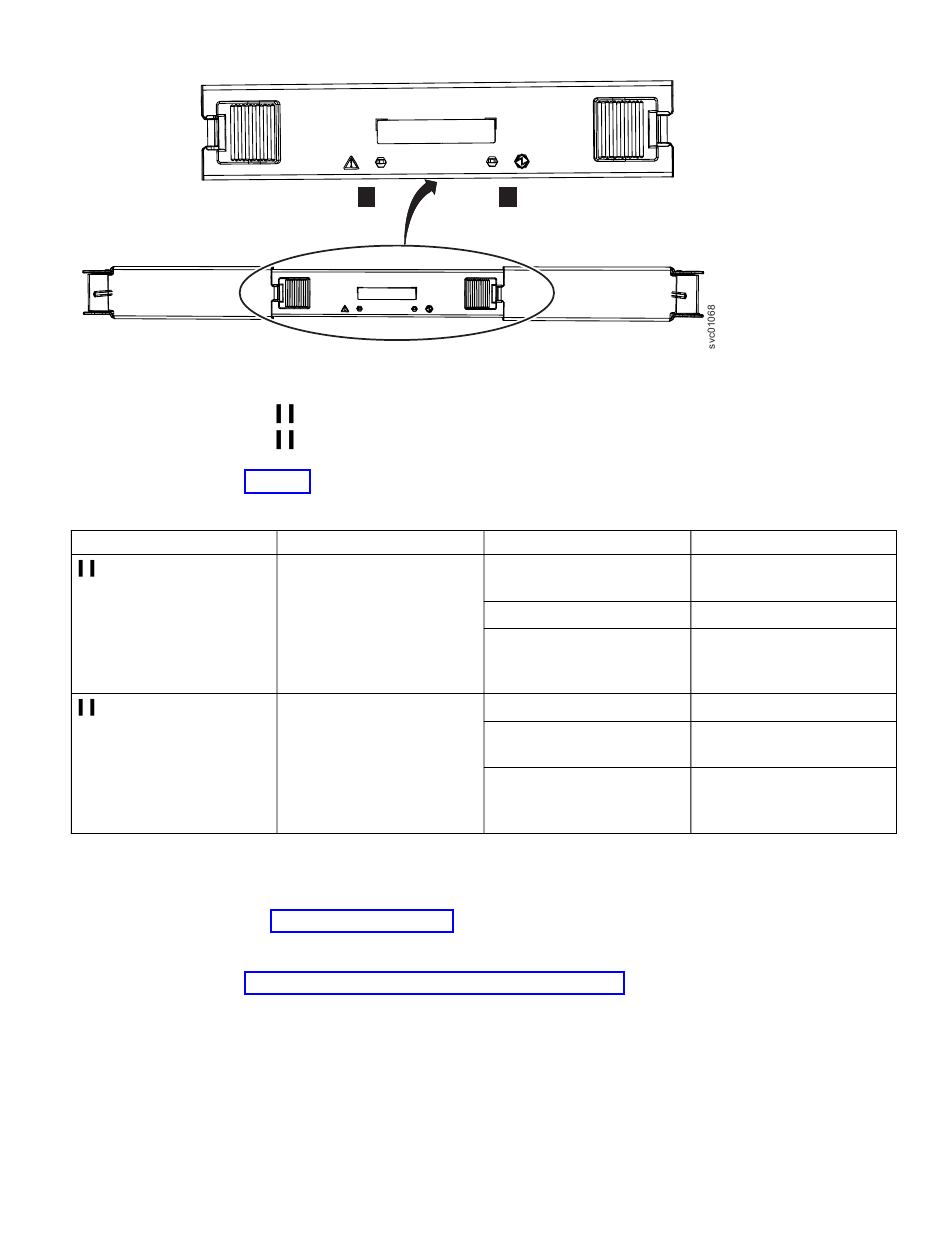

Figure 126. LEDs on a secondary expansion module
Table 17 describes the meaning of the LEDs on each secondary expansion module.
Table 17. LED indicators on secondary expansion modules
Function
1 Power
2 Fault
LEDs inside of the expansion enclosure
As Figure 127 on page 134 shows, each of the drives and secondary expansion
modules within the 2076-92F expansion enclosure has two LEDs. To view the
drives and SEMs, you must remove the cover of the enclosure, as described in
"Removing the top cover: 2076-92F" on page 47.
2
1 Online indicator
2 Fault indicator
Color
Green
Amber
1
Status
On
Flashing
Off
On
Flash
Off
Chapter 2. Installing the system hardware
Description
The secondary expansion
module is receiving power.
Not used.
The secondary expansion
module is not receiving
power.
Not used.
The secondary expansion
module is being identified.
The secondary expansion
module is operating
normally.
