However, as Figure 27 shows, the 4U and 1U fascias are packaged separately. You
must attach them to the front of the 2076-92F expansion enclosure as part of the
initial installation process.

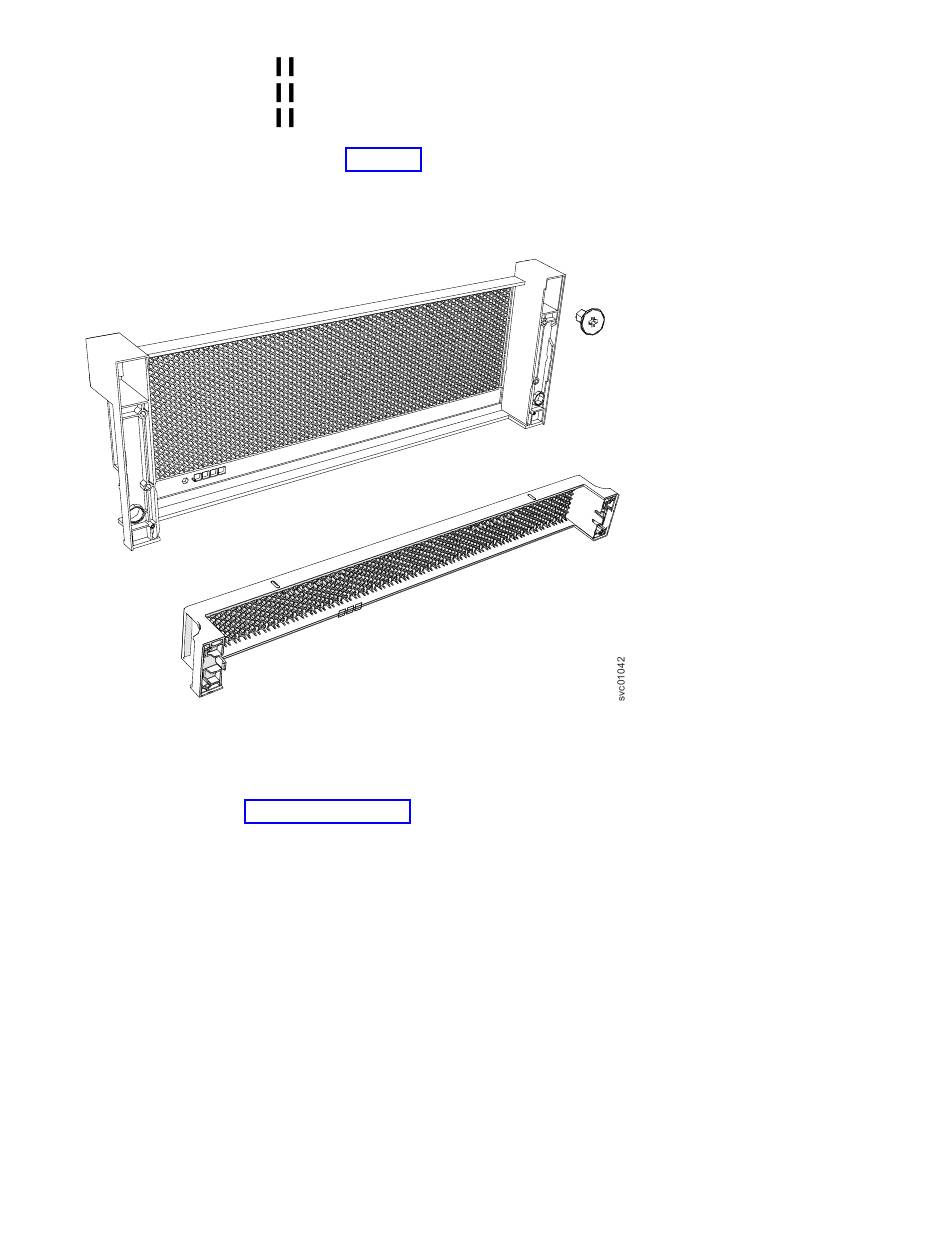

Figure 27. Front fascia of the 2076-92F expansion enclosure
Components on the rear of the enclosure
Figure 28 on page 42 shows the components on the rear of the 2076-92F expansion
enclosure. Four fan modules and two expansion enclosures are accessible from the
back of the enclosure.
4 Power supply units (PSUs)
5 PSU fascia (1U)
6 Front fascia (4U)
x4
Chapter 2. Installing the system hardware
41
