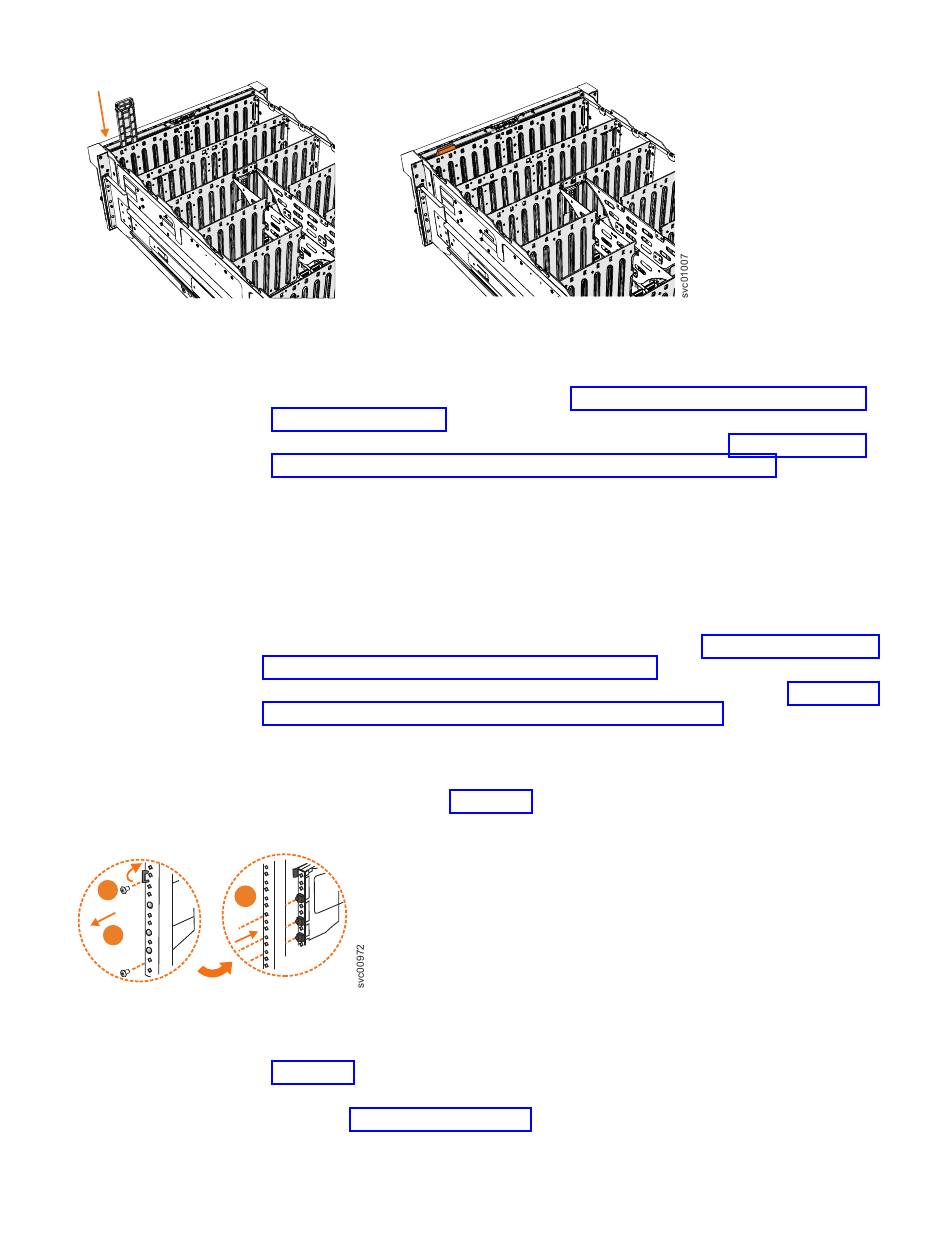

Figure 113. Installing the display panel assembly
3. Insert the display panel assembly until it clicks into position.
4. Replace the top cover, as described in "Installing or replacing the top cover:
5. Ensure the LEDs on the display panel are lit correctly. See " Storwize V7000
Removing the support rails: 2076-92F
You can remove the support rails for the 2076-92F expansion enclosure.
About this task
This task assumes the following conditions:
v The cable management arm is removed, as described in "Removing or moving
v The expansion enclosure is removed from the rack, as described in "Removing
Procedure
1. Remove the two screws that attach the outer rail section to the front bracket
2
3
1
Figure 114. Remove the rail assembly from the front frame bracket
2. Remove the rail section by pulling it away from the front bracket, as shown in
3. Remove the two screws that attach the inner rail section to the rear bracket, as
2076-92F" on page 65.
2076-92F expansion enclosure LEDs and indicators" on page 129 for details.
the cable-management arm: 2076-92F" on page 55.
an expansion enclosure from a rack: 2076-92F" on page 89.
assembly, as shown in Figure 114.
Figure 114.
shown in Figure 115 on page 122.
Chapter 2. Installing the system hardware
121
