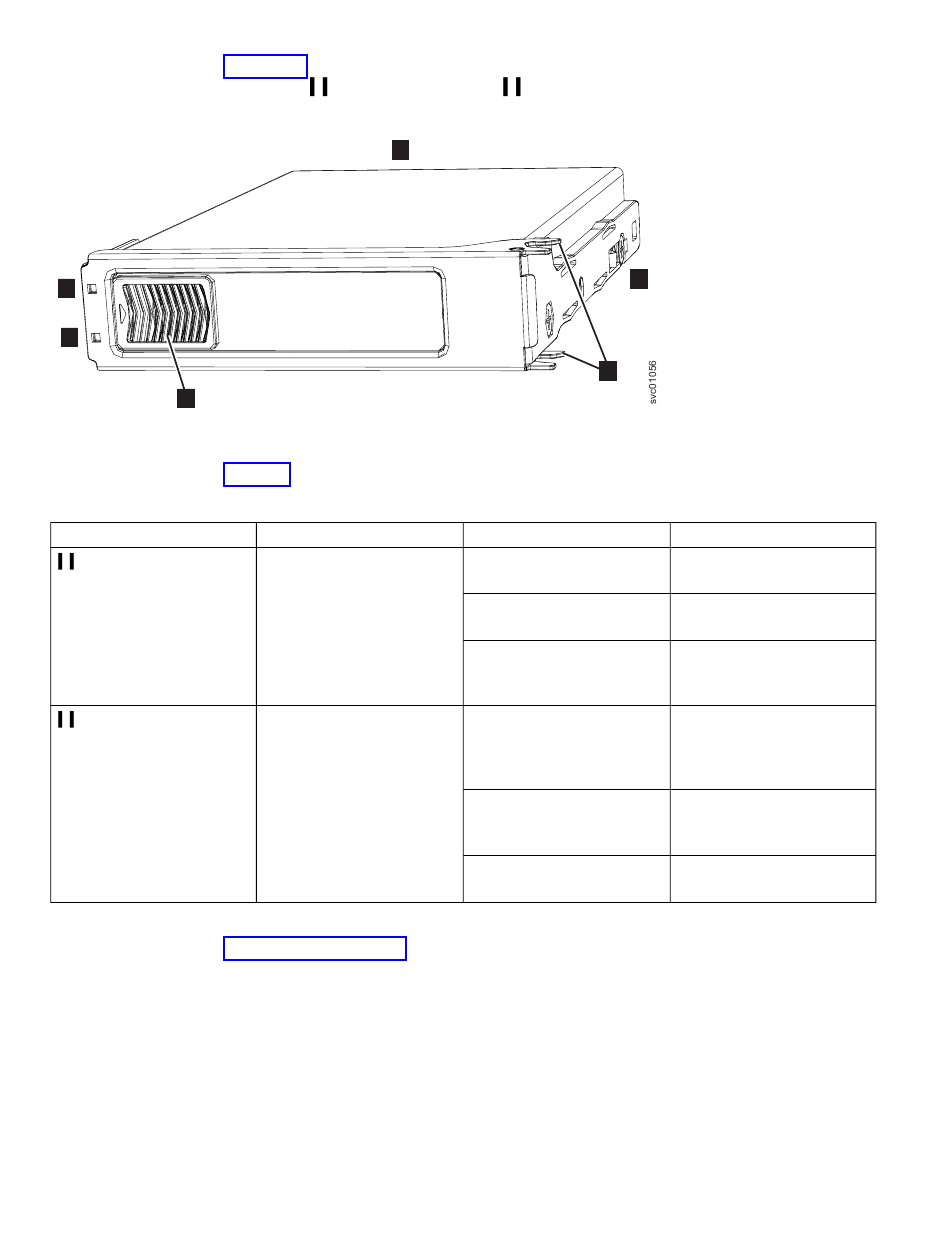

Figure 125 shows the components of a drive assembly. Each drive has an online
indicator ( 2 ) and fault indicator ( 3 ).
2
3
4
Figure 125. LEDs on a drive assembly
Table 16 describes the meaning of the LEDs on each drive.
Table 16. LED indicators on drives
Function
2 Activity
3 Fault
Figure 126 on page 133 shows the LEDs on a secondary expansion module.
132
Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
1
Color
Green
Amber
6
5
Status
On
Flashing
Off
On
Flash
Off
Description
The drive is ready to be
used.
The drive is operating and
I/O is occurring.
The drive is not installed or
an installed drive is not
ready to be used.
A fault occurred on the
drive. The LED is turned
off when the drive is
removed and replaced.
The drive is being
identified, a fault might or
might not be detected.
The installed drive is
operating normally.
