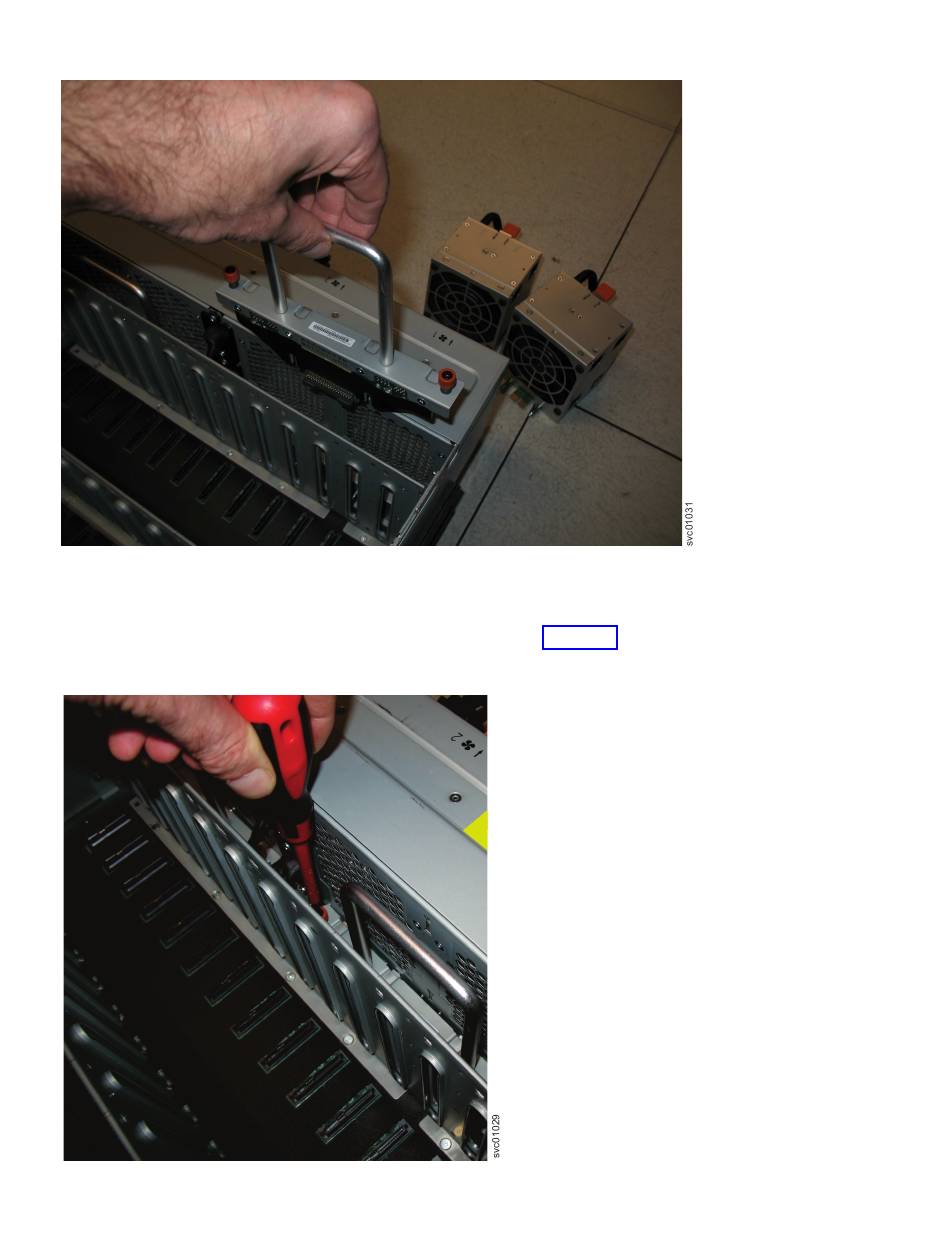

Figure 86. Insert the new FIB in the chassis
3. Use a cross head screwdriver to tighten the retaining screws that secure the
FIB to the drive board, as shown in Figure 87.
Figure 87. Secure the FIB to the drive board
88
Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
