Table 11. Enclosure weight as FRUs are installed (continued)
Enclosure assembly
FRUs installed
v Enclosure (01LJ607 or
01LJ112)
v Secondary expansion
modules
v Fascia
v PSUs
v Expansion canisters
v Fan modules
v Fan interface board
v 92 3.5-inch Near-Line
SAS hard disk drives
Conversely, the overall weight of the expansion enclosure is reduced as you
remove parts. However, even with parts removed, the 5U expansion enclosure is
heavy. Depending on the number of parts that remain, you might need four
persons or a mechanical lift to support the weight of the expansion enclosure.

Identify the hardware components: 2076-92F

You should become familiar with the external components of the 2076-92F
expansion enclosure.
Components on the front of the enclosure

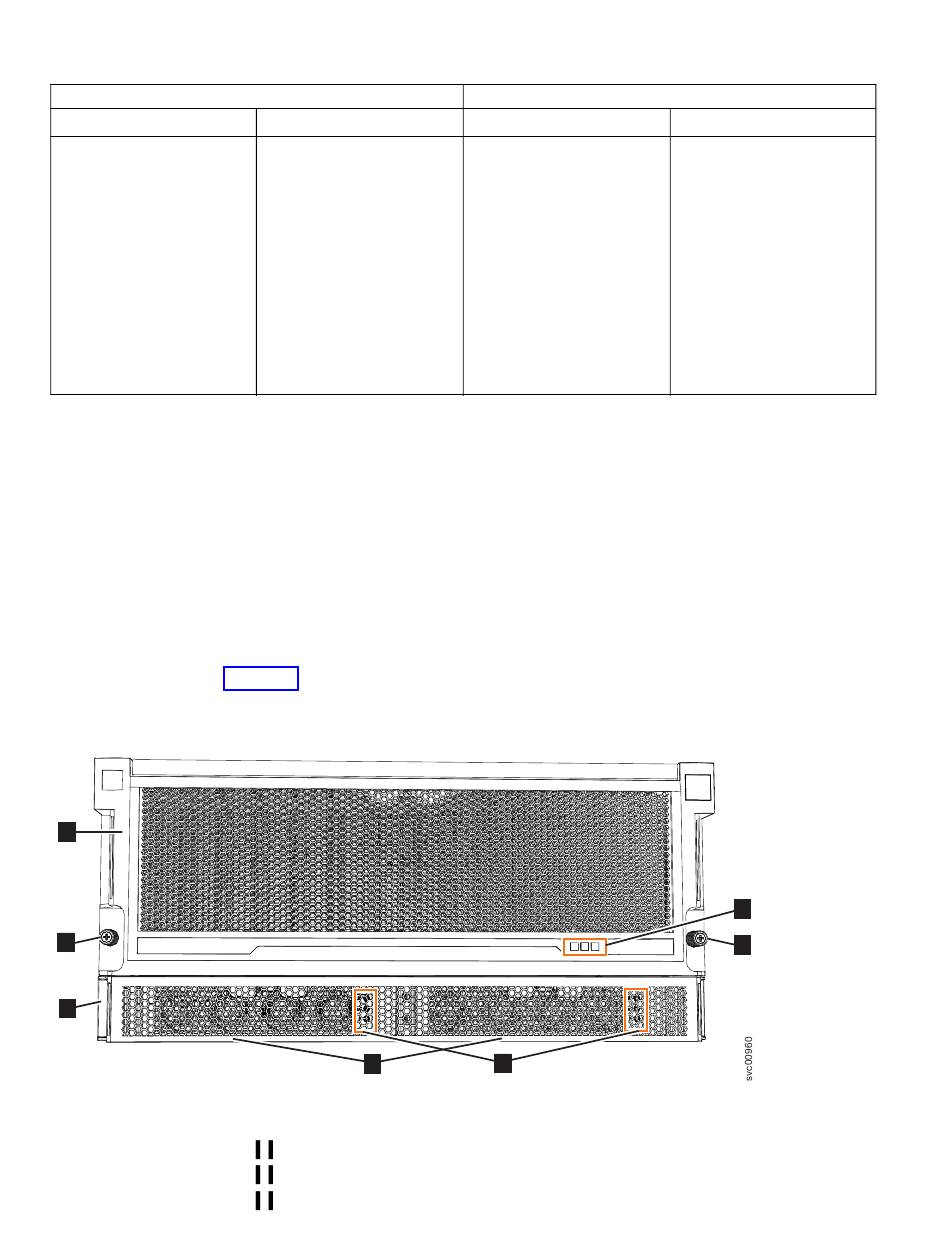

Figure 26 shows the front of the 2076-92F expansion enclosure. In the figure, all
parts are installed in the enclosure.
6
2
5
Figure 26. Features on the front of the 2076-92F expansion enclosure
40
Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
FRUs not installed
v Cover
4
1 Display panel indicators
2 Rack retention thumb screws
3 Power supply unit indicators
Approximate weight
kg
138.6
3
lb
305.6
1
2
