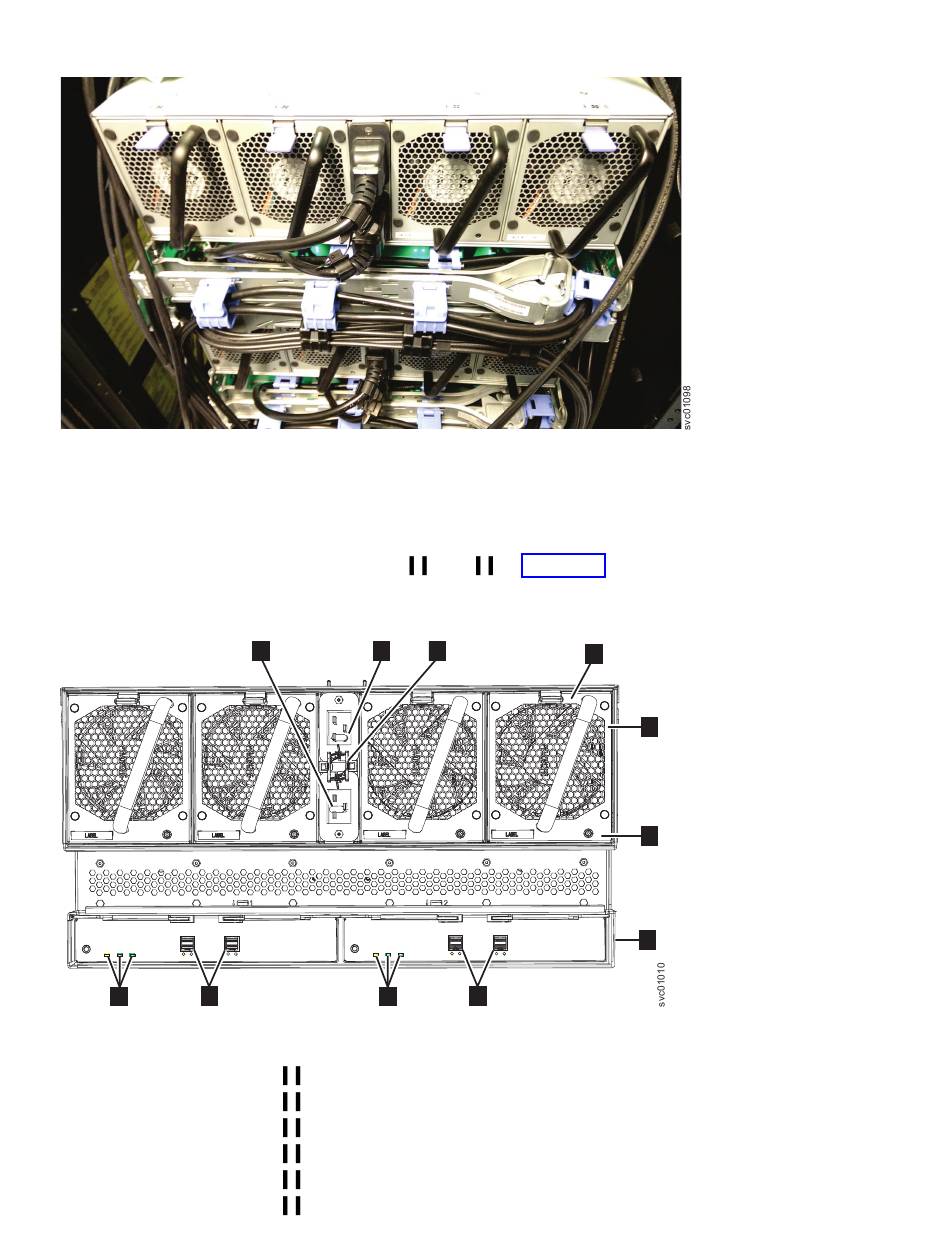

Figure 121. Power and SAS cable connections on the back of the enclosure
3. Verify that the expansion enclosure and its components are operating as
8
7
Figure 122. Features on the rear of the 2076-92F expansion enclosure
128
Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
expected.
On the back of the expansion enclosure, all four fans and the expansion
canister indicators ( 3 and 8 in Figure 122) become active when the power is
connected.
9
1
8
1 Power cable connector for PSU 2
2 Power cable retention clamps
3 Fan module
4 Fan release latch
5 Fan fault indicator
6 Expansion canister
2
4
7
3
5
6
