1
2

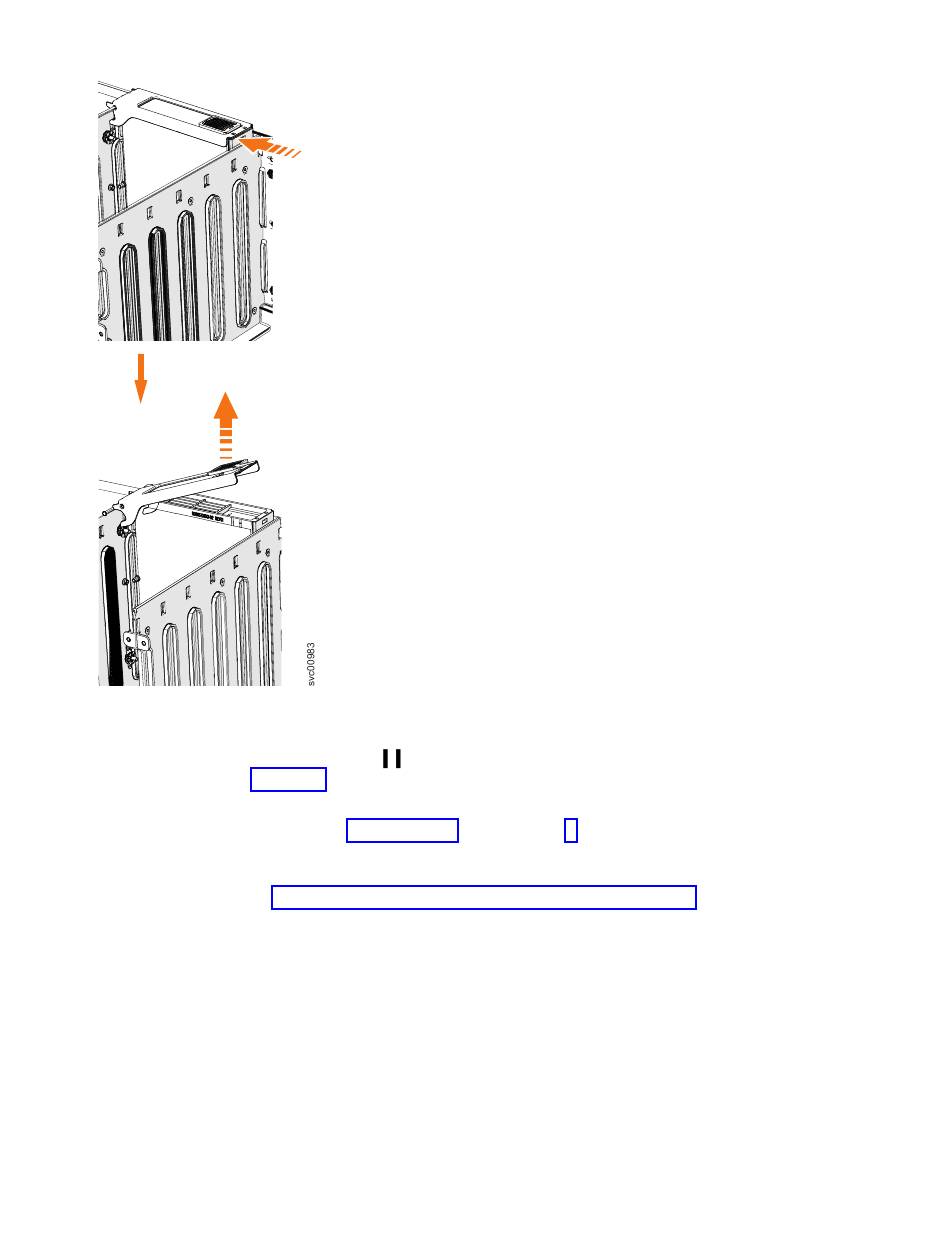

Figure 94. Remove the drive assembly
6. Lift the handle ( 2 ) to unlock the drive carrier from the partition, as shown in
7. Carefully lift the drive carrier up to remove it from the expansion enclosure.
8. Repeat step 4 on page 100 through step 7 for each drive you need to remove.

Replace the drive

9. To reinstall a drive, or replace it with one from FRU stock, follow the procedure

Removing a secondary expander module: 2076-92F

You can remove a secondary expander module from a 2076-92F expansion
enclosure if it is faulty or to perform other service tasks.
102
Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
Figure 94. Ensure the toe on the bottom of the latch is fully disengaged.
in "Installing or replacing a drive: 2076-92F" on page 66.
