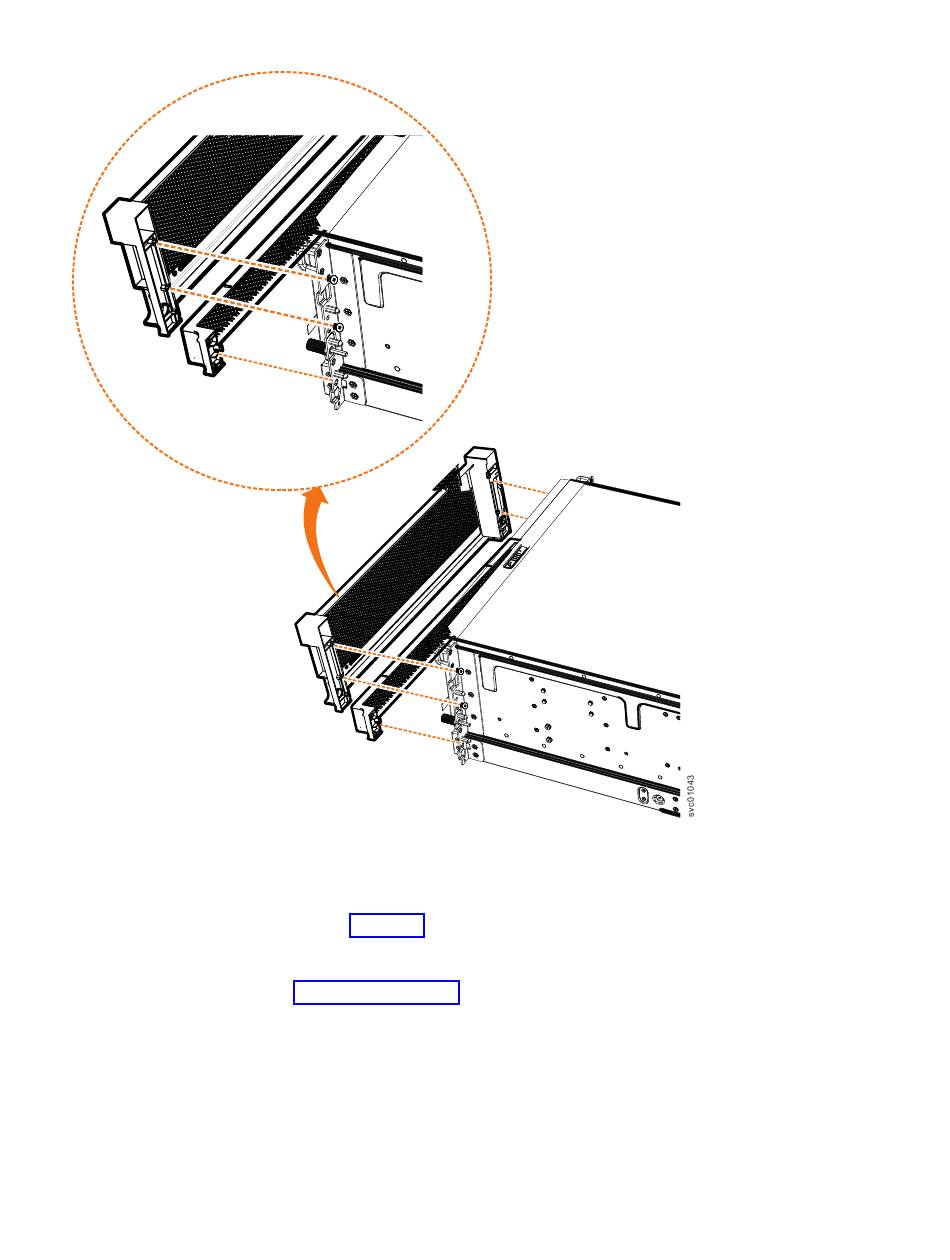

Figure 78. Remove fascia components from the expansion enclosure
Remove the bottom (1U) fascia
3. Gently pull on each side of the PSU fascia to remove it from the chassis, as
shown in Figure 78. The PSU fascia disengages from the slot and pin that
connect it to each side of the chassis.
You must remove the bottom fascia to access and service either PSU. However,
as Figure 79 on page 82 shows, you do not have to remove the front fascia.
Chapter 2. Installing the system hardware
81
