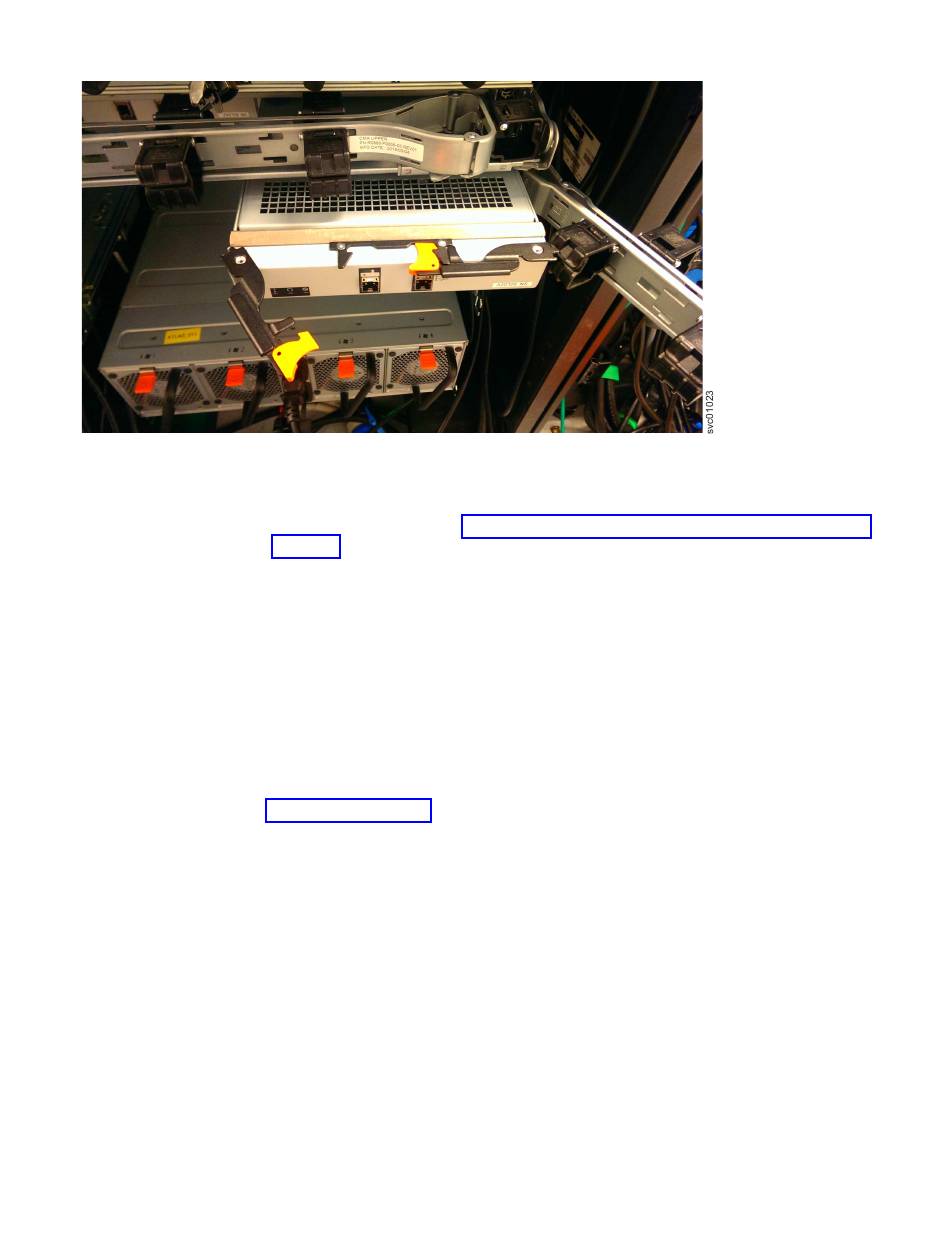

Figure 45. Install the expansion canister
5. Reconnect all the SAS cables to the appropriate SAS ports on the expansion
6. Reconnect the elbow of the lower cable management arm to the inner member

Removing or moving the cable-management arm: 2076-92F

You might need to move the cable-management arm (CMA) aside to complete
service tasks. If needed, you can also remove the CMA from the 2076-92F
expansion enclosure.
About this task
The cable management arm (CMA) consists of an upper and lower arm assembly,
as Figure 46 on page 56 shows. The upper and lower are independent of each
other. They can be installed, moved, or removed from the enclosure individually.
canister, as described in "Removing and installing a SAS cable: 2076-92F" on
page 82.
of the slide rail.
Chapter 2. Installing the system hardware
55
