Machine Type Model 7036-P16 LAN attached remote Asynchronous node (RAN) (FC xxxx)
The 7036-P16 is a 16-Port EIA-232 LAN Attached Remote Asynchronous Node (RAN) for use with IBM
andIBM Systems. The RAN provides connectivity to asynchronous EIA-232 devices, such as modems, TTY terminals, printers, etc.
The RAN, when used with RealPort® software from Digi-Data Corporation, will convert the serial data stream to and from attached
asynchronous EIA-232 devices into Ethernet TCP/IP traffic. Once the data is on the TCP/IP network, a host system attached to the
same network can treat the attached devices as if the devices were connected directly to the host system.
7036-P16 RAN attached remote asynchronous node specifications
Item
Description

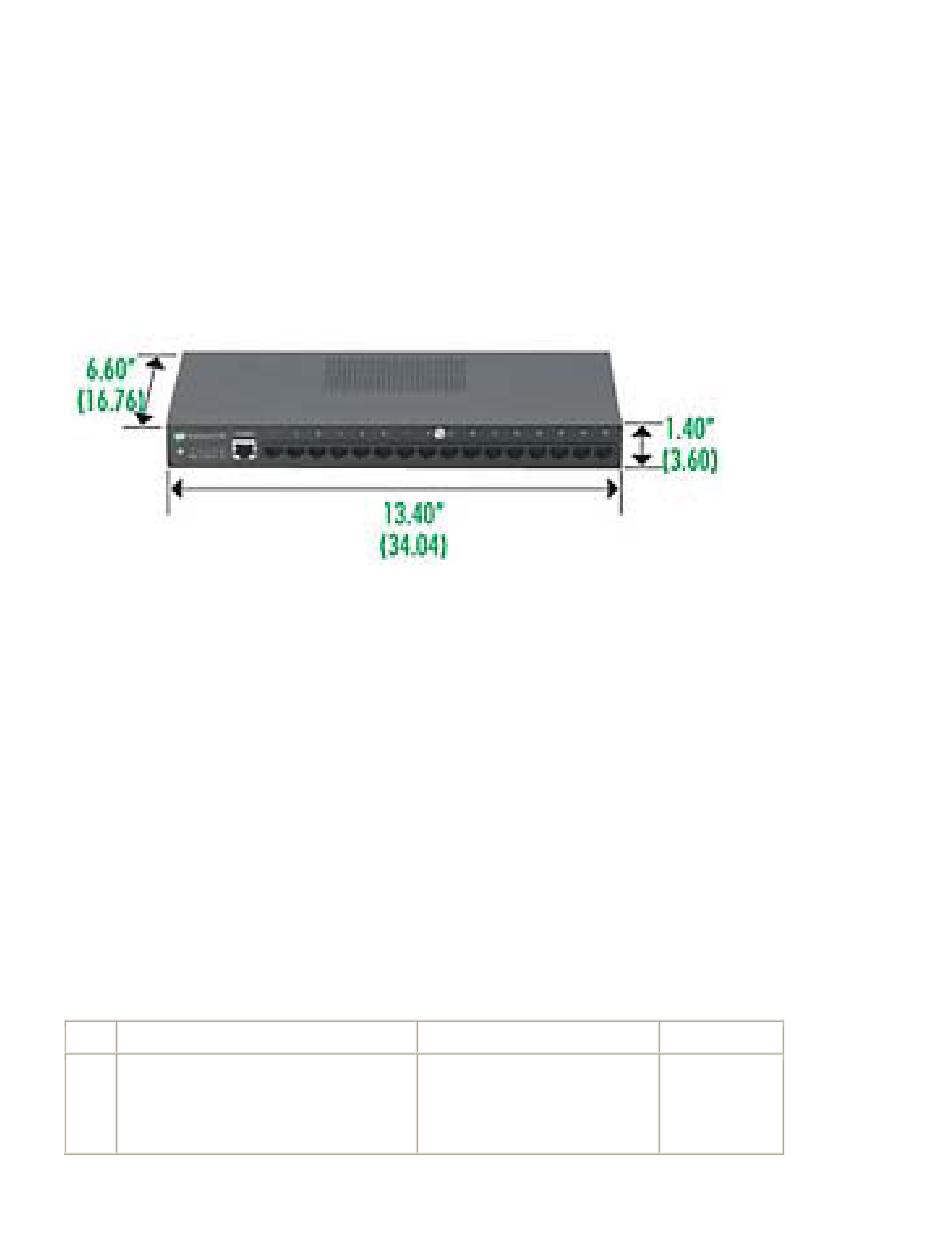

Physical Dimensions:
42.7 cm (16.8 in.) x 16.76 cm (6.6 in.) x 4.06 cm (1.6 in.)
Weight:
3.2 kg (7.05 lb.)
Environmental Limits
Operating
Temperature: 0 to 40 C (Ambient Air Temperature)
Humidity: 5% to 95% (non-condensing)
Wet Bulb: 29 C
Altitude: 0 - 7000 ft
Storage
Temperature: 1 to 60 C
Humidity: 5% to 80% (non-condensing)
Wet Bulb: 29 C
Shipping
Temperature: -40 to 60 C
Humidity: 5% to 100% (non-condensing)
Wet Bulb: 29 C
Power Consumption Table
Input
100 - 250VAC nominal
90 - 264VAC maximum
47 - 63 Hz
7036-P16 throughput considerations
The limits on throughput are a function of the network and the server or server partition to which the 7036-P16 ports are configured.
Serial Port Throughput:
Voltage
Current (amperes)
0.8 A Maximum
40A in rush
2A fuse
®
eServer™ p5 servers
Wattage
12 watts typical

Advertisement

loading

  Related Manuals for IBM 7036-P16

  Summary of Contents for IBM 7036-P16

  • Page 1 40A in rush • • 47 - 63 Hz 2A fuse 7036-P16 throughput considerations The limits on throughput are a function of the network and the server or server partition to which the 7036-P16 ports are configured. Serial Port Throughput:...
  • Page 2 Each 7036-P16 provides 16-Ports of asynchronous EIA-232 connectivity over a 10/100 Ethernet port at speeds up to 128 K bps. Given that any number of 7036-P16 may be attached to a server, a single server, or server partition could in effect have a large number of asynchronous EIA-232 connections.
  • Page 3 Documentation CD that was provided with the product. • Configure the 7036-P16 as a device on the host server. This in effect binds the 7036-P16 to the host server. • Configure the 7036-P16 serial ports for use with the Digi RealPort® software.
  • Page 4 If the RealPort® Package installed correctly the following is displayed: dgr-1.9.1 . Once this step is done successfully, the RealPort® installation on SuSE is complete. 16. After the RealPort® software is successfully installed, the user should configure the IP address, go to 7036-P16 IP address, 7036-P16 Network Configuration.
  • Page 5 -c 1 [IP address of target 7036-P16] If the 7036-P16 responds to the ping, then it is on the network and the user may proceed to 2. If the 7036-P16 does not respond to the ping, then the 7036-P16 is not on the network and the user must go to the 7036-P16 Network Configuration procedure.
  • Page 6 1. Ensure the 7036-P16 and the server are on the network. The user should ping the 7036-P16 by typing the following command: ping -c 1 [IP address of target 7036-P16]. If the 7036-P16 responds to the ping, then it is on the network, go to 2.
  • Page 7 -c 1 [IP address of target 7036-P16]. If the 7036-P16 responds to the ping, then it is on the network and the user may proceed to 2. If the 7036-P16 does not respond to the ping, then the 7036-P16 is not on the network and the user must go to the 7036-P16 IP address Configuration Procedure to perform the network configuration procedure.
  • Page 8 RARP=off 13. If the user plans to use the RealPort® software on the host server to control all the 7036-P16 ports, then the serial ports must be configured for use with the RealPort® software by executing the following command.
  • Page 9 Support Site. 11. If the latest firmware version is not the same as what was found in step 2, then the firmware on the target 7036-P16 is not current and it needs to be updated. Download a copy of the latest firmware to a directory on the host server and make a note of the directory and the file name.
  • Page 10 For example: /tmp/82000684_L.bin 11. If the POST version is not the same as what was found in step 3, then the POST on the target 7036-P16 is not current and it needs to be updated. Download a copy of the POST to a directory on the host server and make a note of the directory and the file name.
  • Page 11 8. If the firmware and POST versions are the same as in step 2, then the firmware and POST on the target 7036-P16 are current and nothing more is needed. Complete this procedure by logging out from the IBM Support Site.
  • Page 12 RJ45 to DB09 (Male) cable. DB09 wired the same as pSeries DB09 connectors. available Same as Digi PN 76000239. from Digi 76000238 None 1.23m (4 ft.) RJ45 to DB25 (Male) cable. DB25 wired to allow direct attachment to an IBM available 3151 TTY Terminal. from IBM 76000239 None 0.61m (2 ft.) RJ45 to DB09 (Male) cable.
