Standard Models and Specifications

XW2B-40J6-9A

■

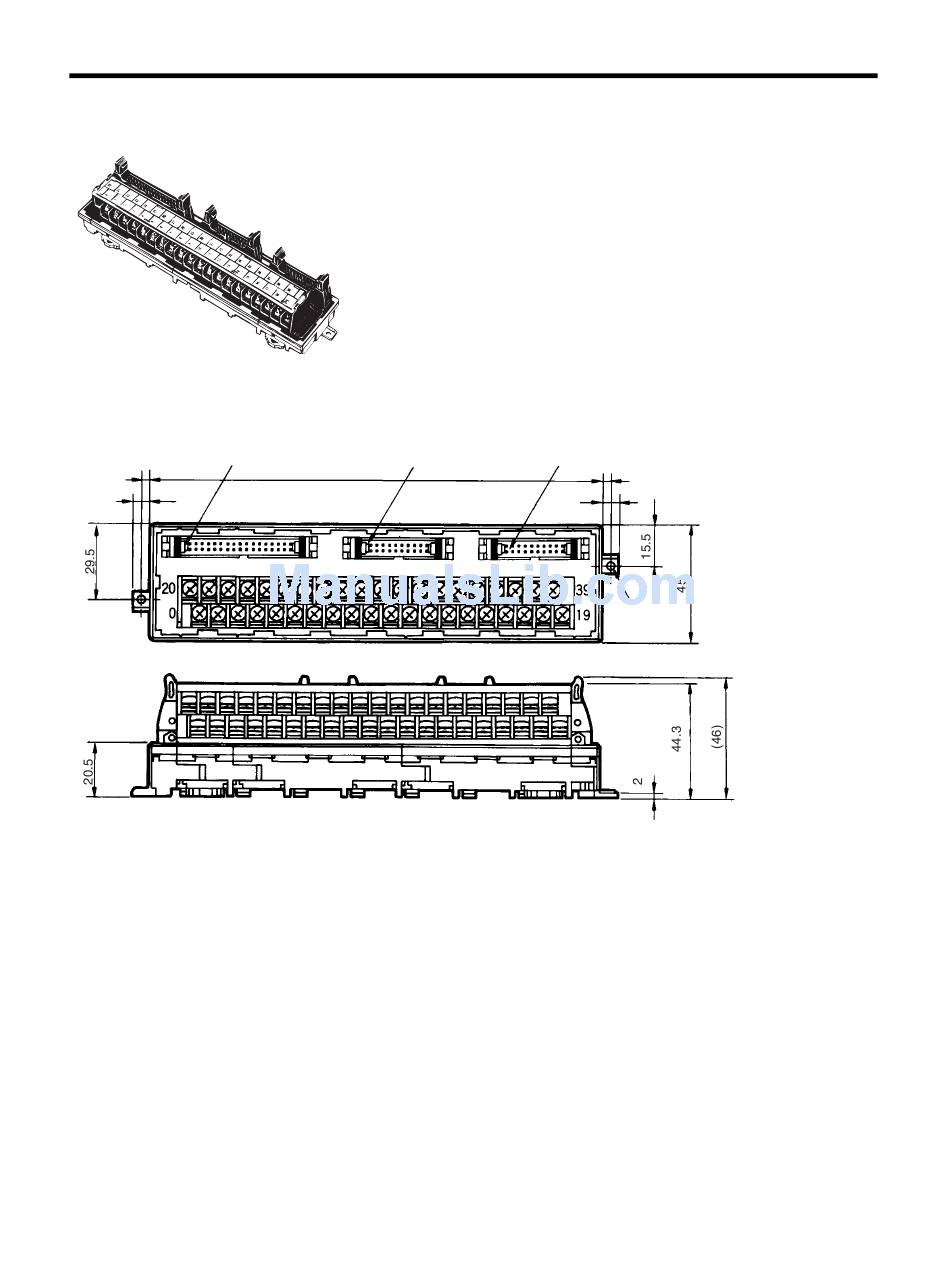

External Dimensions
●
CJ1M-CPU connector
3.5
7
2-64
This Servo Relay Unit connects to the following OMRON
Programmable Controllers. Communications are not sup-
ported.
• CJ1M-CPU21/-CPU22/-CPU23
X-axis Servo Driver connector
180
Y-axis Servo Driver connector
3.5
7
Two, 3.5 dia.
Note Terminal pitch: 7.62 mm
