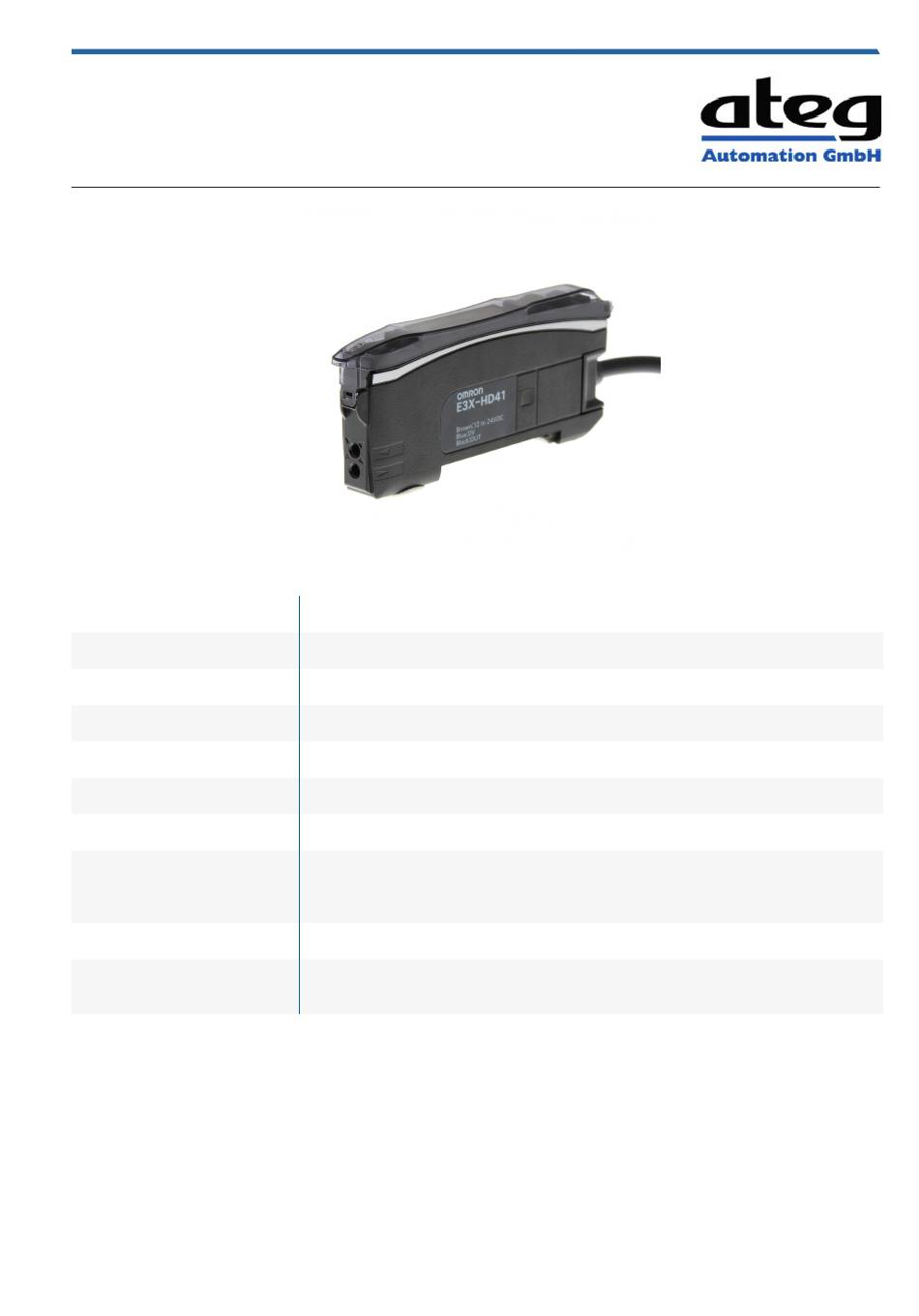

Datenblatt

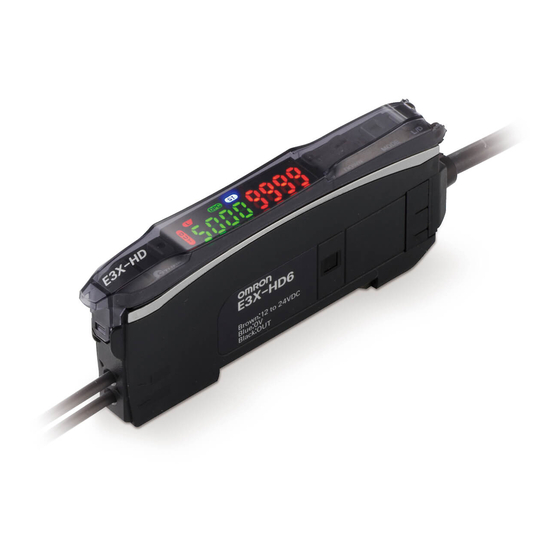

Lichtleiterverstärker E3X-HD
E3X-HD
Bezeichnung
Versorgungsspannung
Anwendung
Typ
Anschlussart
Regelausgang
Ansprechzeit
Schutz gegen
gegenseitige
Beeinflussung
Lichtquelle (Wellenlänge)
Max. anschließbare
Einheiten
Erstellt am 28.09.2020 um 20:20 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten!
|
ATEG Automation GmbH
Intzestraße 50
E3X-HD
12 - 24 VDC
einfache Anwendung
Easy-Teach
Anschlusskabel, Kabelsparender Steckverbinder, M8-Steckverbinder
NPN, PNP
4 Modi: 50 µs / 250 µs / 1 ms
für bis zu 10 Einheiten
rot, 4-Elemente-LED (625 nm)
16
|
|
42859 Remscheid
Germany
|
Tel.: +49 (0)2191 / 591457-0
Seite 1 von 14
|
| www.ateg.de
info@ateg.de
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omron E3X-HD Series
Summary of Contents for Omron E3X-HD Series
- Page 1 Datenblatt Lichtleiterverstärker E3X-HD E3X-HD Bezeichnung E3X-HD Versorgungsspannung 12 - 24 VDC Anwendung einfache Anwendung Easy-Teach Anschlussart Anschlusskabel, Kabelsparender Steckverbinder, M8-Steckverbinder Regelausgang NPN, PNP Ansprechzeit 4 Modi: 50 µs / 250 µs / 1 ms Schutz gegen für bis zu 10 Einheiten gegenseitige Beeinflussung Lichtquelle (Wellenlänge)
- Page 2 (equipped with GIGA RAY II). Refer to the Fiber Sensors Technical Guide and Safety Precautions on page 9. For the most recent information on models that have been certified for safety standards, refer to your OMRON website. Features Easy Greater operability and visibility...
-
Page 3: Accessories (Sold Separately)
Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD Ordering Information Fiber Amplifier Units (Dimensions ➜ page 12) Standard models Models Appearance Connecting method NPN output PNP output Pre-wired (2 m) E3X-HD11 2M E3X-HD41 2M Wire-saving Connector E3X-HD6 E3X-HD8 M8 Connector E3X-HD14 E3X-HD44 (Dimensions ➜ page 12) Model for Sensor Communications Unit Appearance Model... -
Page 4: Ratings And Specifications
Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD Ratings and Specifications Type Standard Model for Sensor Communications Unit *1 E3X-HD11 E3X-HD6 E3X-HD14 output E3X-HD0 E3X-HD41 E3X-HD8 E3X-HD44 output Connecting Wire-saving Connector for Sensor Pre-wired M8 Connector Item method Connector *2 Communications Unit Light source (wavelength) Red, 4-element LED (625 nm) Supplied from the connector through 12 to 24 VDC ±10%, ripple (P-P) 10% max. - Page 5 Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD Sensing Distances Threaded Models Sensing distance (mm) Sensing Sensing direction Size Model High-speed Super-high- method Giga mode Standard mode mode speed mode E32-T11N 2M 2,000 1,000 Right-angle E32-LT11N 2M 4,000 3,500 2,300 Through-beam E32-T11R 2M 2,000 1,000 Straight...
- Page 6 Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD Small-spot, Reflective Models Sensing distance (mm) Center Type Spot diameter distance Model High-speed Super-high- Giga mode Standard mode (mm) mode speed mode 0.1 to 0.6 dia. 6 to 15 E32-C42 1M+E39-F3A Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm. Variable spot 0.3 to 1.6 dia.
- Page 7 Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD Models for Detection without Background Interference Sensing distance (mm) Sensing method Sensing direction Model High-speed Super-high- Giga mode Standard mode mode speed mode E32-L16-N 2M 0 to 15 0 to 12 Flat-view Limited-reflective E32-L24S 2M 0 to 4 Side-view E32-L25L 2M...
- Page 8 Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD Heat-resistant Models Sensing distance (mm) Sensing method Size Model High-speed Super-high- Giga mode Standard mode mode speed mode 100°C E32-T51R 2M 1,600 150°C E32-T51 2M 2,800 1,500 1,000 Through-beam 200°C E32-T81R-S 2M 1,000 350°C E32-T61-S 2M 1,680 100°C E32-D51R 2M...
-
Page 9: I/O Circuit Diagrams
Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD I/O Circuit Diagrams NPN Output Operation Models Timing chart Output circuit mode indicators Incident light No incident light OUT indicator (orange) Display Brown OUT indicator (orange) Not lit Light-ON Load lit. Output Black transistor Control output Load Photoelectric 12 to... -
Page 10: Safety Precautions
Consoles cannot be used. • Mutual interference prevention on the E3X-HD Series does not Do not apply load exceeding the ratings. Otherwise, damage or fire may result. function among the E3NX-FA, E3X-DA-N, E3X-SD, or E3X-NA Do not short the load. - Page 11 Fiber Unit, insert the single-core prevention Fiber Unit to the upper hole (Emitter side) and the multi-core Fiber Unit to E3X-HD series standard models the lower hole (Receiver side). (E3X-HD11/HD41/HD6/HD8) Single Core The cables for the Single-core Fiber Units (Emitters) have identification...
- Page 12 Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD (Unit: mm) Dimensions Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified. Fiber Amplifier Units Pre-wired Amplifier Units E3X-HD11 E3X-HD41 DPC indicator L/D indicator ST indicator 21.7 27.1 Vinyl-insulated round cable, 4 dia., 3 conductors Incident level (conductor cross-section: 0.2 mm , insulation diameter: 1.1 mm),...
- Page 13 Datenblatt Lichtleiterverstärker E3X-HD E3X-HD E3X-HD Amplifier Units with M8 Connectors E3X-HD14 E3X-HD44 DPC indicator ST indicator L/D indicator 21.7 27.1 Incident level OUT indicator red digital display Threshold level green digital display DIN track mounting With Mounting Braket Attached 146.9 146.9 Note: When using E39-L143 Mounting 170 °...
- Page 14 (a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
