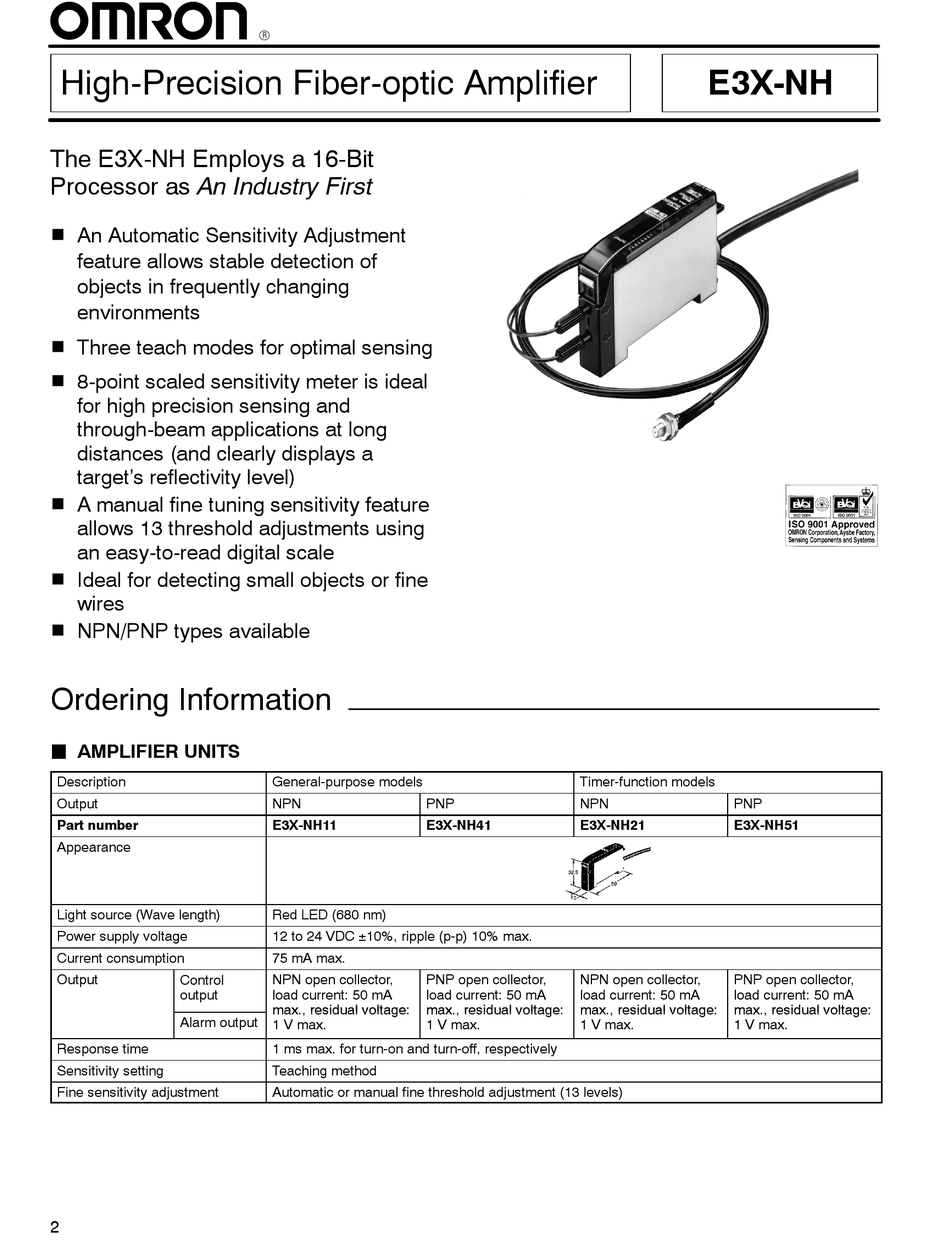

Omron E3X-NH Manual

High-Precision Fiber-optic Amplifier
The E3X-NH Employs a 16-Bit
Processor as An Industry First
An Automatic Sensitivity Adjustment
H
feature allows stable detection of
objects in frequently changing
environments
Three teach modes for optimal sensing
H
8-point scaled sensitivity meter is ideal
H
for high precision sensing and
through-beam applications at long
distances (and clearly displays a
target's reflectivity level)
A manual fine tuning sensitivity feature
H
allows 13 threshold adjustments using
an easy-to-read digital scale
Ideal for detecting small objects or fine
H
wires
NPN/PNP types available
H

Ordering Information

J AMPLIFIER UNITS
Description
Output
Part number
Appearance
Light source (Wave length)
Power supply voltage
Current consumption
Output
Control
output
Alarm output
Response time
Sensitivity setting
Fine sensitivity adjustment
2
R
General-purpose models
NPN PNP
E3X-NH11 E3X-NH41
Red LED (680 nm)
12 to 24 VDC ±10%, ripple (p-p) 10% max.
75 mA max.
NPN open collector, PNP open collector,
load current: 50 mA load current: 50 mA
max., residual voltage: max residual voltage: max residual voltage: max., residual voltage:
1 V max. 1 V max.
1 ms max. for turn-on and turn-off, respectively
Teaching method
Automatic or manual fine threshold adjustment (13 levels)
E3X-NH
Timer-function models
NPN PNP
E3X-NH21 E3X-NH51
NPN open collector, PNP open collector,
load current: 50 mA load current: 50 mA
max., residual voltage: max residual voltage: max., residual voltage: max residual voltage:
1 V max. 1 V max.
