Position Control Unit Cable (Xw2Z-@J-A5) - Omron SMARTSTEP R7D-AP Series User Manual

Standard Models and Specifications

Position Control Unit Cable (XW2Z-@J-A5)

■
These Position Control Unit Cables connect a C200H-NC211, C500-NC113, or C500-NC211 Posi-
tion Control Unit and an XW2B-40J6-2B Servo Relay Unit.
Cable Models
●
Model
XW2Z-050J-A5
XW2Z-100J-A5

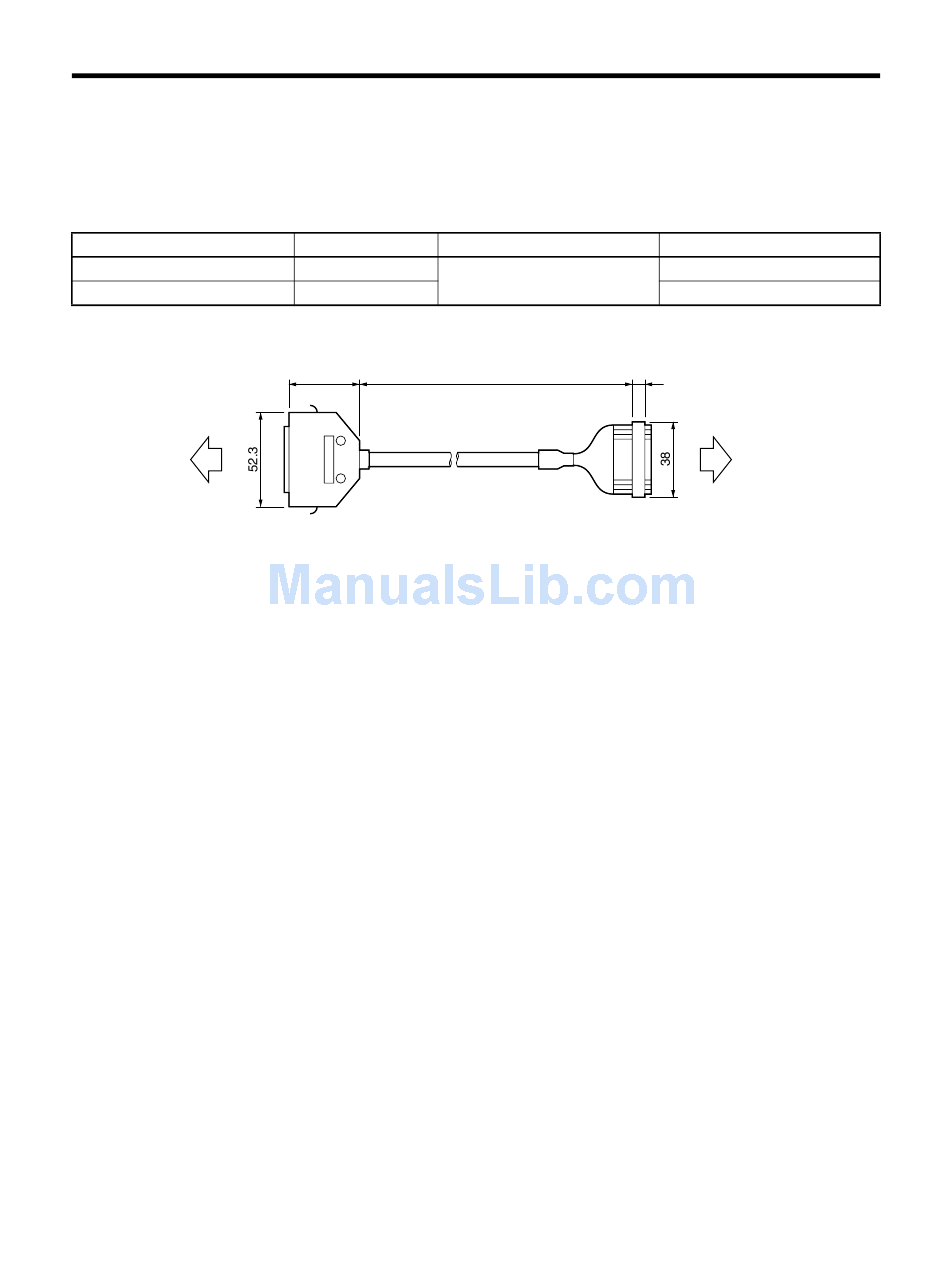

● Connection Configuration and External Dimensions
Position Control Unit
C200H-NC211
C500-NC113
C500-NC211
Length (L) Outer diameter of sheath
50 cm 10.0 dia.
1 m
40.5
t=18
Approx. 0.1 kg
Approx. 0.2 kg
L 6
Chapter 2
Weight
Servo Relay Unit
XW2B-40J6-2B
2-79
