1.8

Connectors

Connectors connect the board with other parts of the system. Loose or improper connection might cause
problems. Make sure all connectors are properly and firmly connected.

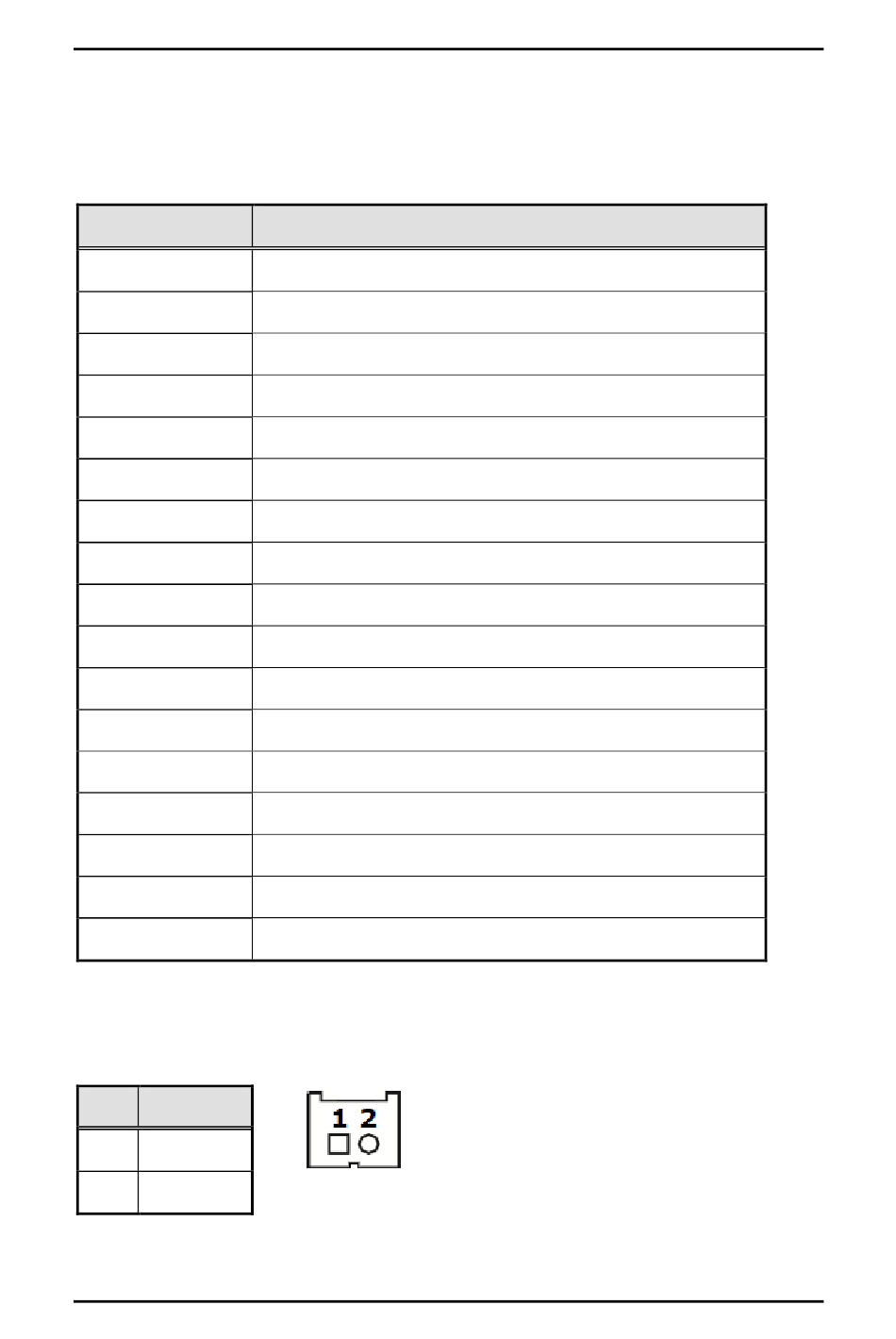

Here is a table summarizing all connectors on the board.
Connector
BAT1
CN1, CN3
CN4, CN5
CN6, CN7
CN9
CN10
CN11, CN17
CN12
CN13, CN14
CN18
CN20
SATA1, SATA2
SCN1
SCN7
SCN8
PWRBT1
PCIE1
1.8.1

RTC battery connector (BAT1)

This connector is for RTC battery.
Pin Signal
1 BAT+
2 GND
Introduction
Description
RTC battery connector
COM port wafer connector (RS-232/422/485)
Digital I/O connector
RJ45 LAN 2.5G Ethernet
RJ45 LAN Gigabit Ethernet
HDMI connector
Dual USB 3.2 Gen2 Type-A connector
Reset wafer connector
SATA power wafer connector
Terminal block (Pitch 5.08mm / 3pin)
DP connector
SATA III connector
M.2 Key M 2280 connector
M.2 Key E 2230 connector
Mini card connector
Remote power switch connector
Riser card - EIO110 1 PCIe x16 Gen3
