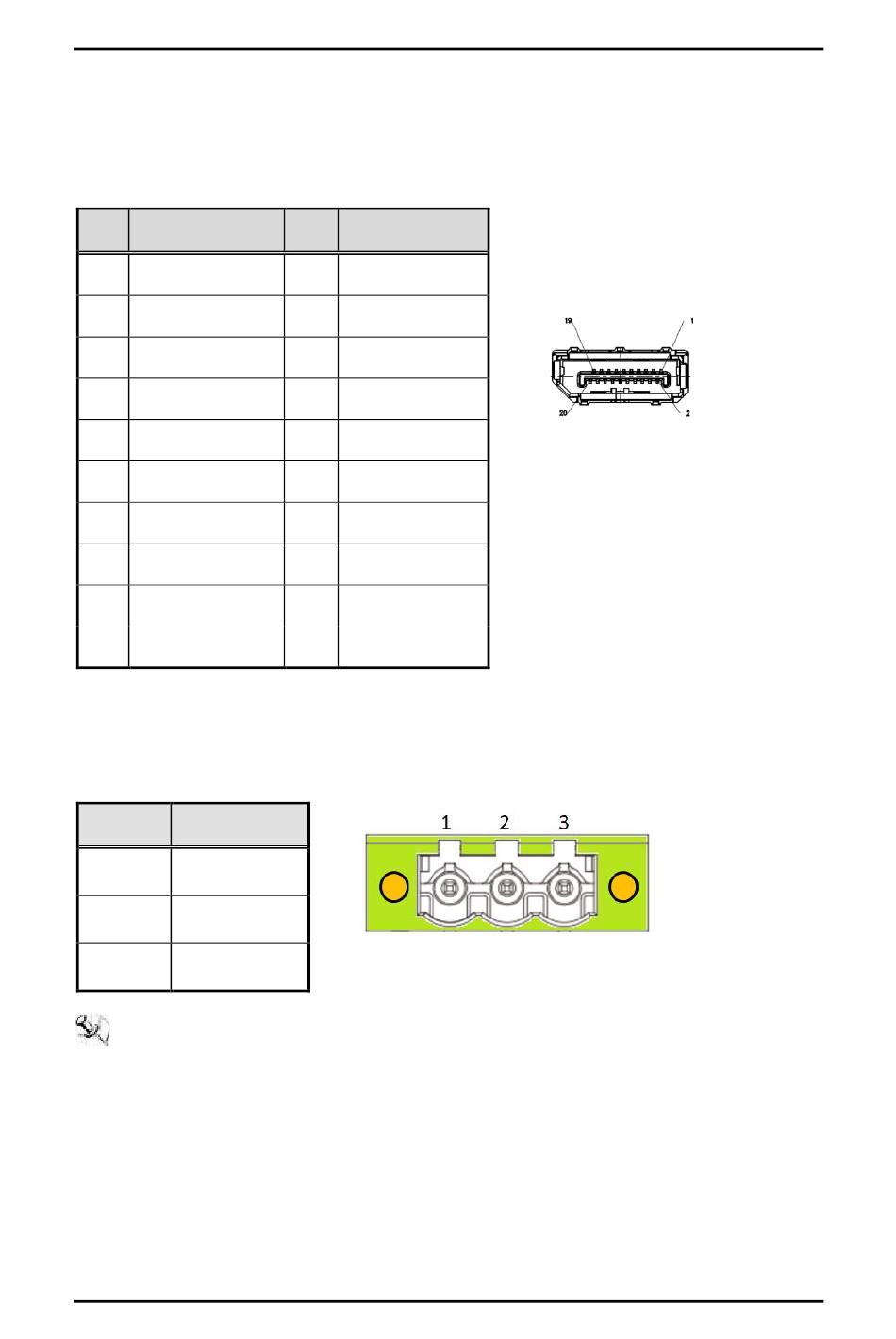

DP connector (CN20)

The DP++ is a compact digital interface which is capable of transmitting high -definition video
and high-resolution audio over a single cable.
Pin Signal
1 LANE 0
3 LANE 0#
5 GND
7 LANE 2
9 LANE 2#
11 GND
13 Detect Pin
15 AUX CH
17 AUX CH#
19 GND
1.8.9

Terminal block (Pitch 5.08mm / 3pin) (CN18)

The system supports 18VDC-36VDC Phoenix DC-in connector for system power input.
Pin Signal
1 DC+
2 DC-
3 IGN
Note For detailed functions, refer to the IGN chapter
:
20
Pin Signal
2 GND
4 LANE 1
6 LANE 1#
8 GND
10 LANE 3
12 LANE 3#
14 GND
16 GND
18 Hot Plug Detect
20 DP_PWR (3.3V)
