1.8.3

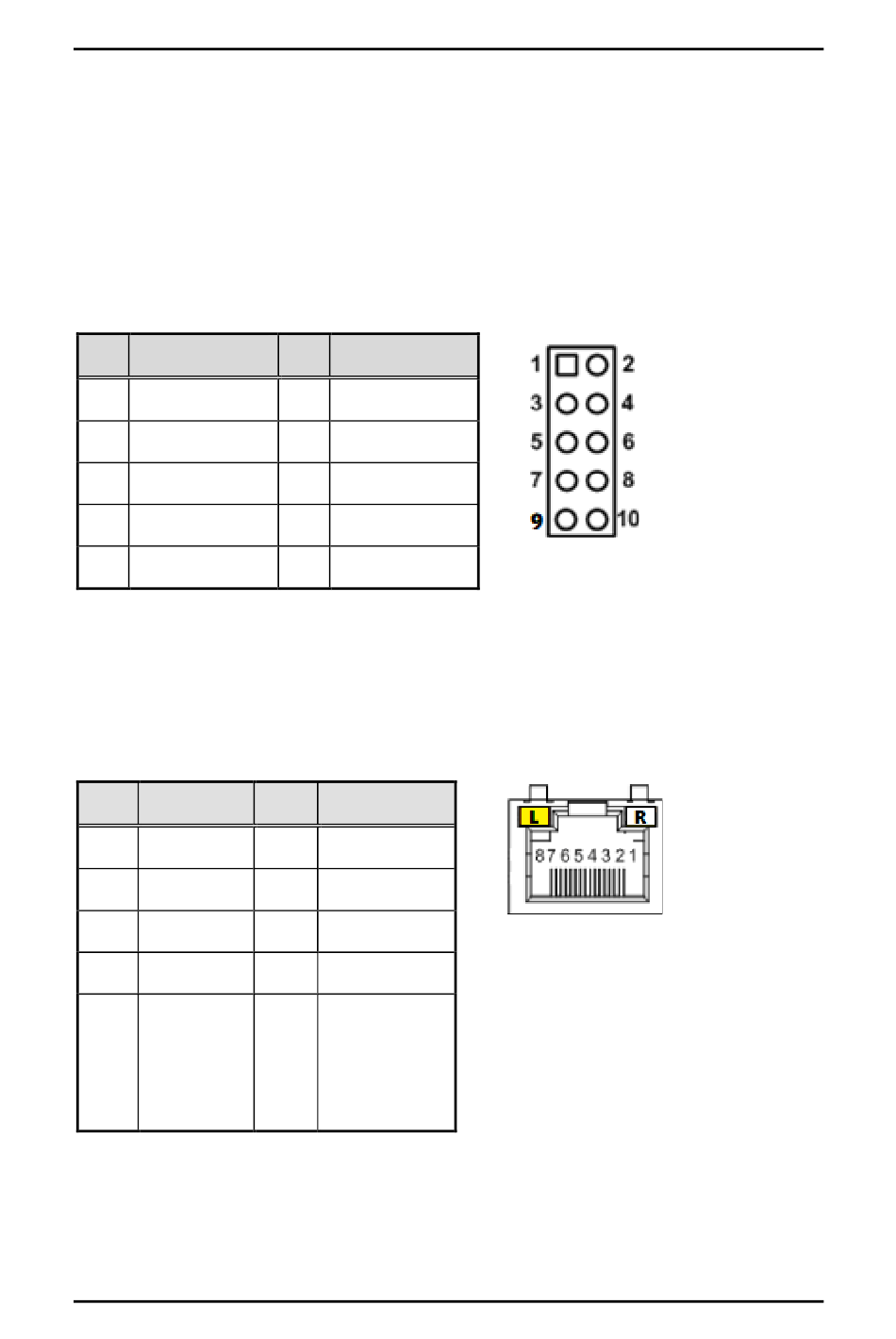

Digital I/O connector (CN4, CN5)

This header (5x2-pin p=2.00mm) is for digital I/O interface.
The voltage of TTL is 5V
The programming is as follow:
- I/O sink current is 8~10mA
- Input/Output can be programmed
Pin
Signal
1
DIO1
3
DIO2
5
DIO3
7
DIO4
9
GND
1.8.4

RJ45 LAN 2.5G Ethernet (CN6, CN7)

The system has two RJ-45 connectors: CN6, CN7. Ethernet connection can be established by plugging one
end of the Ethernet cable into this RJ-45 connector and the other end (phone jack) to a 2500/1000/100-
Base-T hub.
Pin
Signal
1
MDI0+
3
MDI1+
5
MDI2-
7
MDI3+
Active LED
L
(Yellow)
Introduction
Pin
Signal
2
DIO8
4
DIO7
6
DIO6
8
DIO5
10
+5V
Pin
Signal
2
MDI0-
4
MDI2+
6
MDI1-
8
MDI3-
Speed LED
(2500M: Green
R
1000M: Orange
100M: off)
IPC920 Series User's Manual
17
