IPC920 Series User's Manual
1.8.5

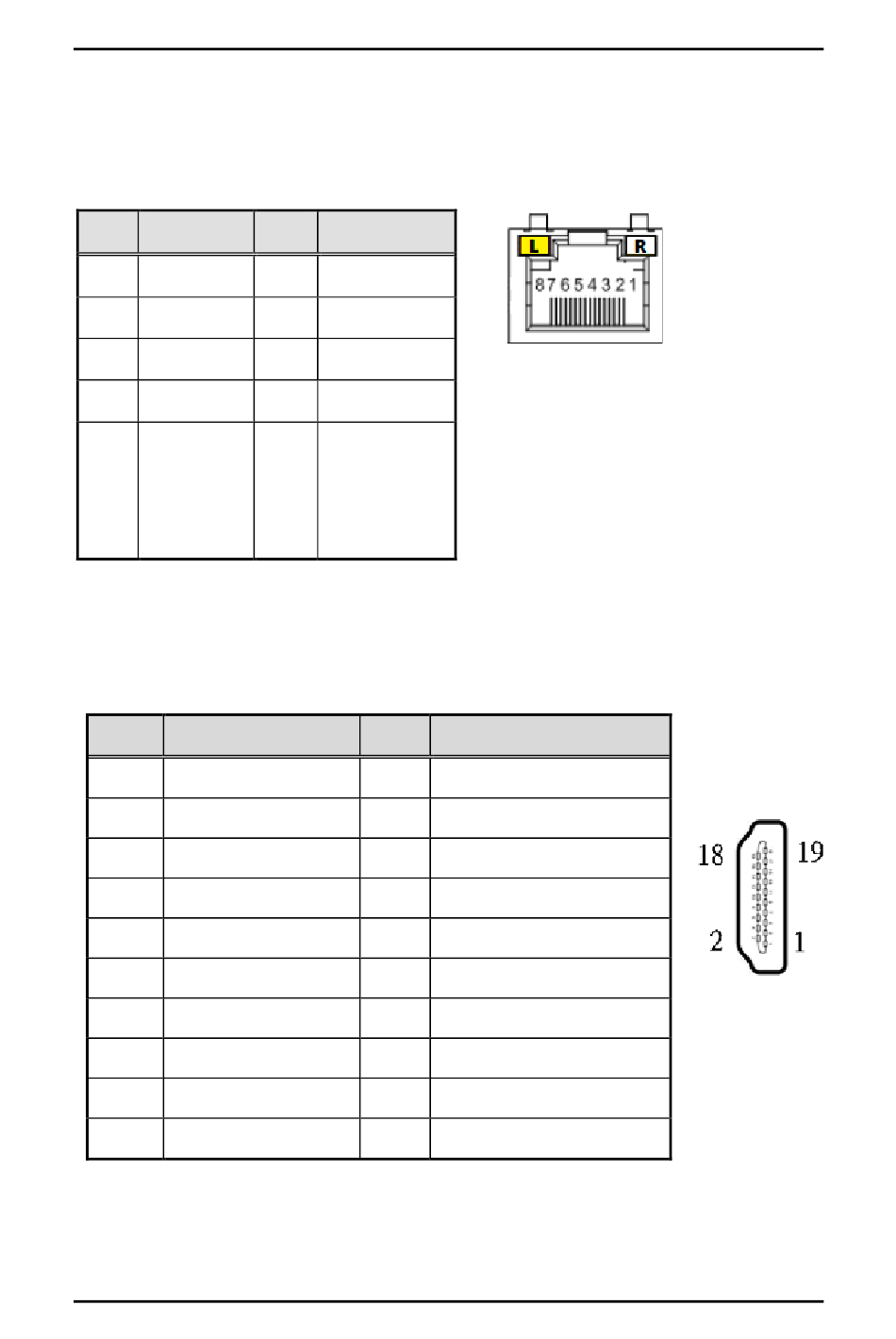

RJ45 LAN Gigabit Ethernet (CN9)

The system has one RJ-45 connectors: CN9. Ethernet connection can be established by plugging one end
of the Ethernet cable into this RJ-45 connector and the other end (phone jack) to a 1000/100/10-Base-T
hub.
Pin Signal
1 MDI0+
3 MDI1+
5 MDI2-
7 MDI3+
Active LED
L
(Yellow)
1.8.6

HDMI Connector (CN10)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is capable of
transmitting high-definition video and high-resolution audio over a single cable.
Pins Signals
1 HDMI OUT_DATA2+
2 GND
3 HDMI OUT_DATA2-
4 HDMI OUT_DATA1+
5 GND
6 HDMI OUT_DATA1-
7 HDMI OUT_DATA0+
8 GND
9 HDMI OUT_DATA0-
10 HDMI OUT Clock+
18
Pin Signal
2 MDI0-
4 MDI2+
6 MDI1-
8 MDI3-
Speed LED
(1000M: Orange
R
100M: Green
10M: off)
Pins
11
12
13
14
15
16
17
18
19
Signals
GND
HDMI OUT Clock-
N.C.
N.C.
HDMI OUT_SCL
HDMI OUT_SDA
GND
+5V
HDMI_HTPLG
