Step 4

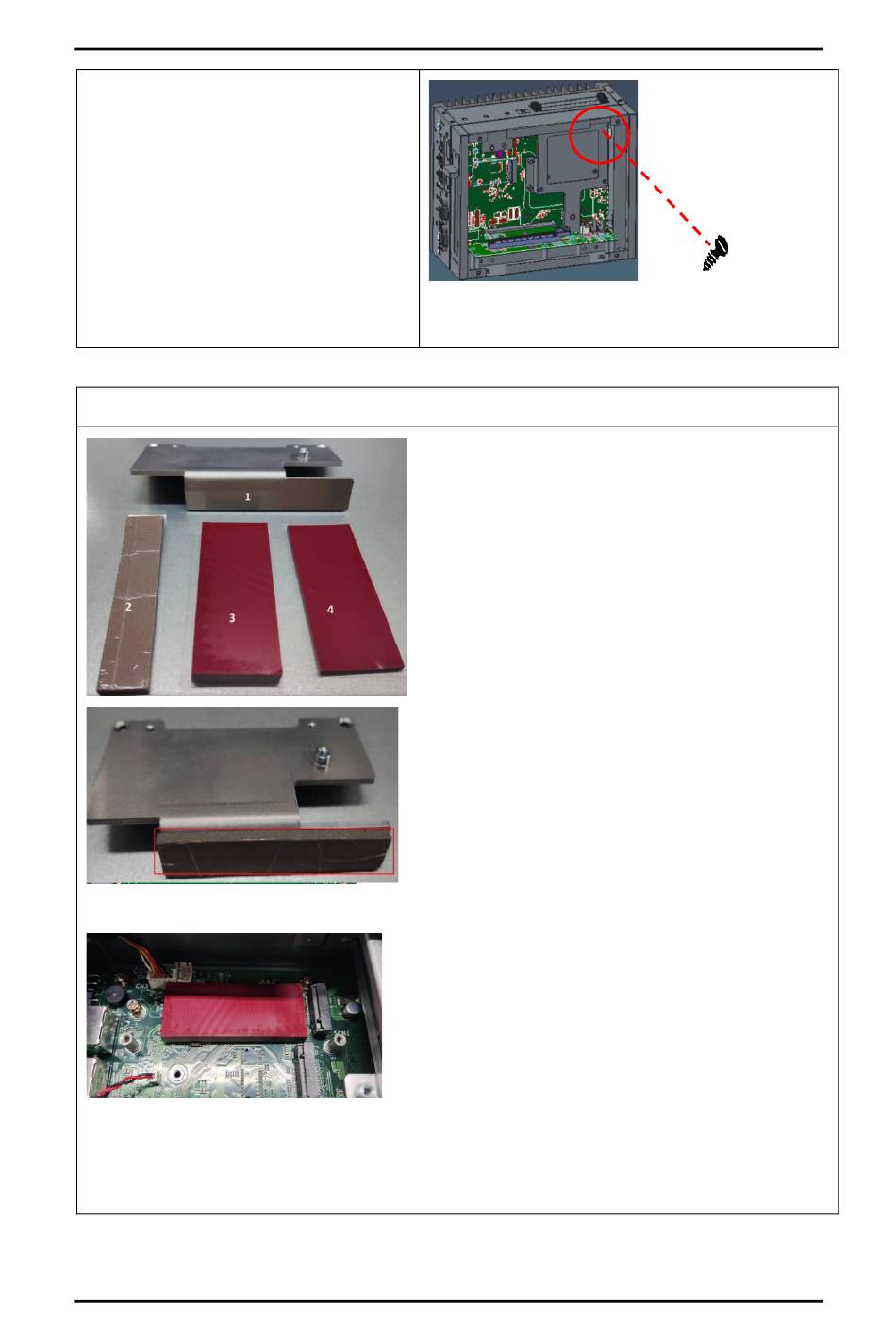

Please follow the steps below to install modules.
Paste the thermal pad(2) on the bracket(1) and tear the protective cover.
➢
Paste the thermal pad(3) on the main board and tear the protective cover.
➢
Insert the SSD module into Key M slot and push it down firmly.
➢
Paste the thermal pad (4) on the top of SSD module and tear the protective cover.
➢
38
Unscrew the four screws and separate the
expansion box from the main chassis.
M.2 key M
Hardware Installation
