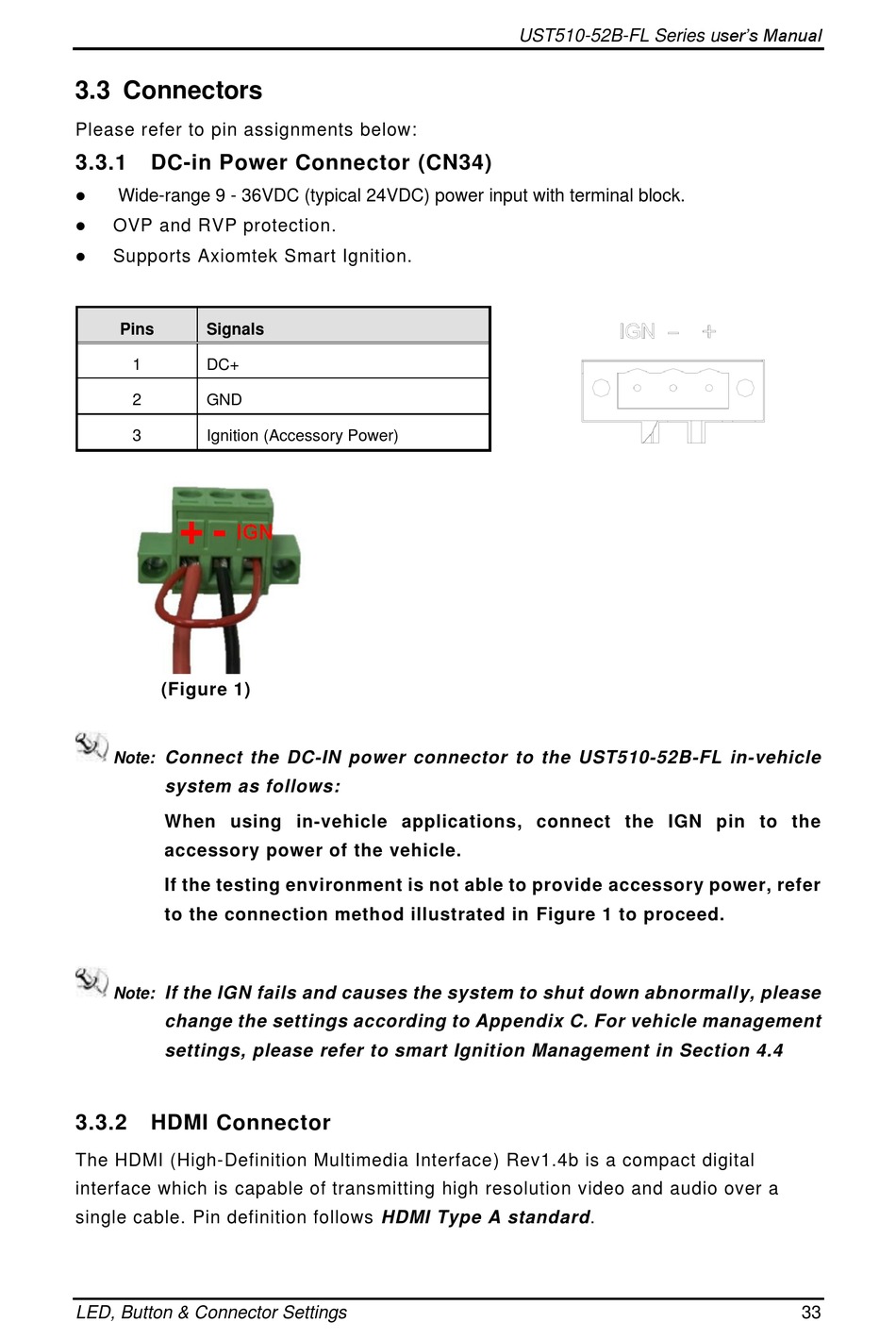

3.3 Connectors

Please refer to pin assignments below:
3.3.1

DC-in Power Connector (CN34)

Wide-range 9 - 36VDC (typical 24VDC) power input with terminal block.
OVP and RVP protection.
Supports Axiomtek Smart Ignition.
Pins
Signals
1
DC+
2
GND
3
Ignition (Accessory Power)
(Figure 1)
Connect the DC-IN power connector to the UST510-52B-FL in-vehicle
Note:
system as follows:
When using in-vehicle applications, connect the IGN pin to the
accessory power of the vehicle.
If the testing environment is not able to provide accessory power, refer
to the connection method illustrated in Figure 1 to proceed.
If the IGN fails and causes the system to shut down abnormall y, please
Note:
change the settings according to Appendix C. For vehicle management
settings, please refer to smart Ignition Management in Section 4.4
3.3.2

HDMI Connector

The HDMI (High-Definition Multimedia Interface) Rev1.4b is a compact digital
interface which is capable of transmitting high resolution video and audio over a
single cable. Pin definition follows HDMI Type A standard.
LED, Button & Connector Settings
UST510-52B-FL Series user's Manual
33
