Step 3

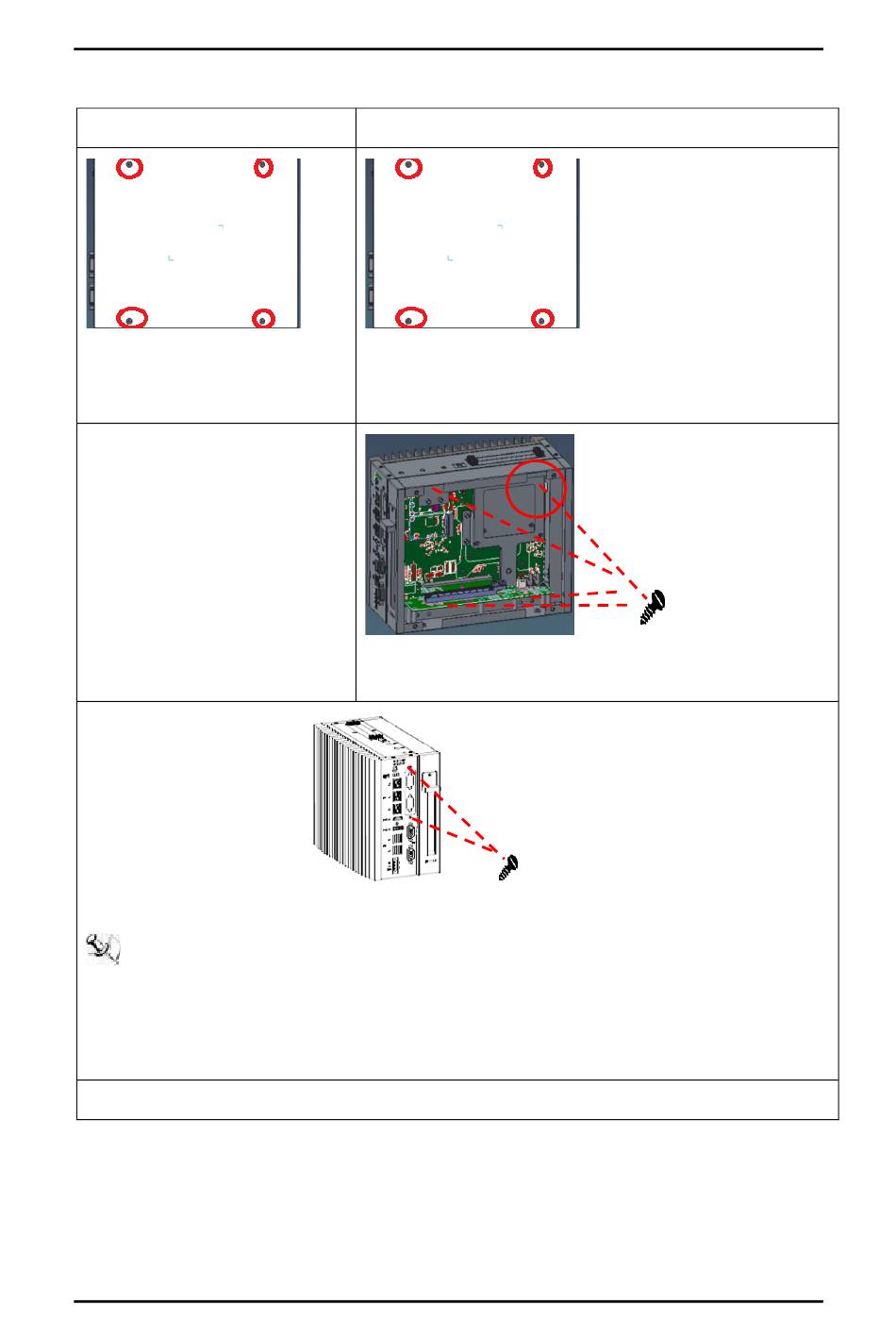

Complete the flexible I/O installation as the below procedure illustrates.
IPC920-R-F1 / IPC920-H-F1
Unscrew the four screws and
separate the cover from the
chassis.
Loosen Unscrew the two screws and separate the flexible window cover from the chassis.
Note: Do not need to remove flexible window cover when install two DB9 connectors.
Remove the DB9 brackets carefully, then screw the DB9 connectors into flexible
➢
window cover.
Screw flexible window cover to chassis.
➢
Screw I/O cable(s) to flexible window cover, then screw the cover to chassis.
Hardware Installation
IPC920-R-F1E / IPC920-H-F1E
Unscrew the four screw and separating the cover from the
expansion box.
Unscrew four screws and separate the expansion box from
the main chassis.
IPC920 Series User's Manual
33
