IPC920 Series User's Manual
2.2
Procedure of Installation
This chapter will guide you on installing a processor.
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3

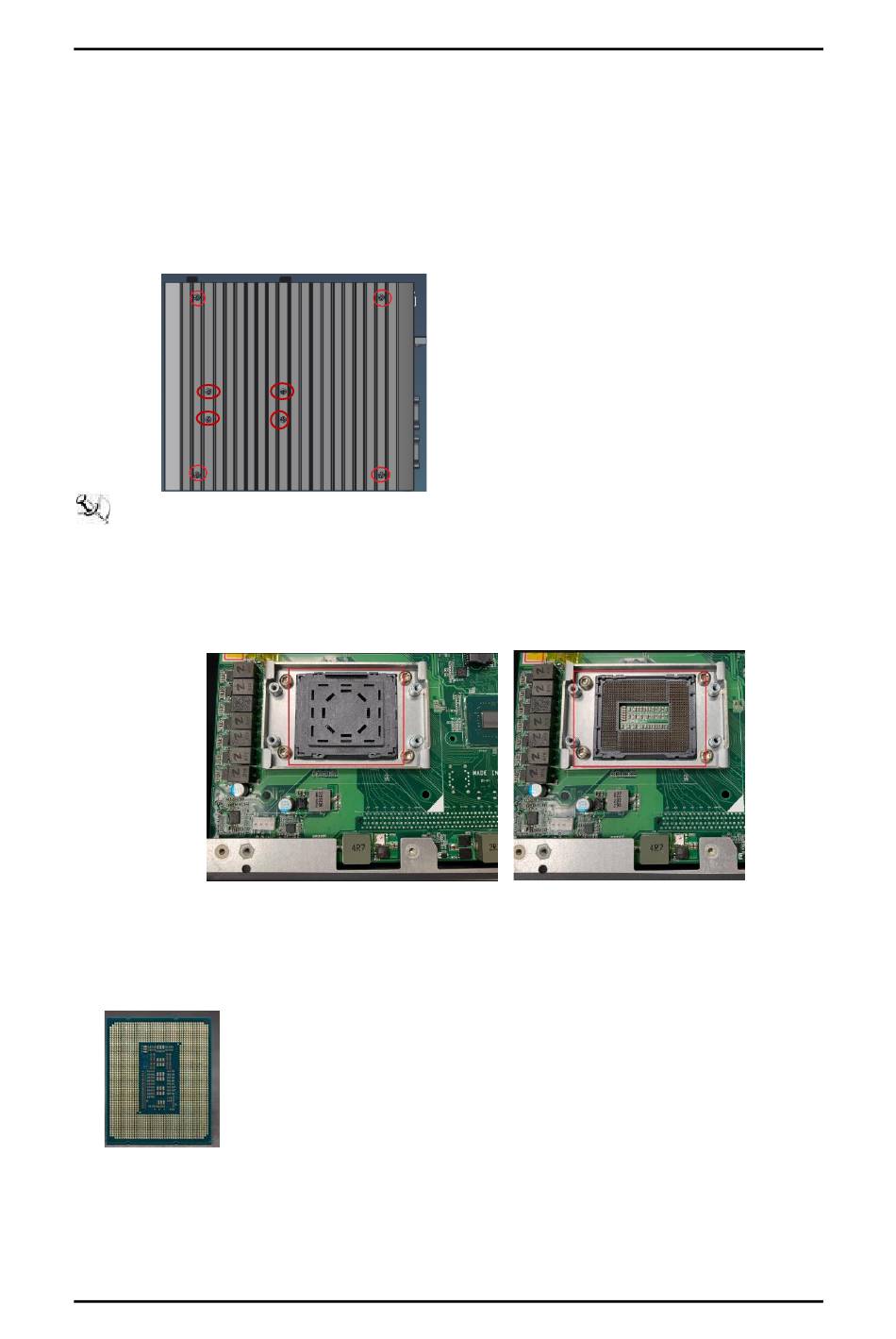

Loosen eight screws to remove the heatsink cover from the chassis.
Note:
To avoid damage, never touch the pins of socket and the processor at any time
during installation.
Step 4
Remove protective cover carefully.
Step 5
CPU installation steps:
Lift the processor package from the shipping media by carefully grasping its substrate edges.
➢
Scan the processor package gold contacts for any presence of foreign material.
➢
Locate connection 1 indicator on the processor which aligns with connection 1 indicator chamfer on
➢
the socket and notice processor keying features that line up with posts along socket walls.
28
→
Hardware Installation
