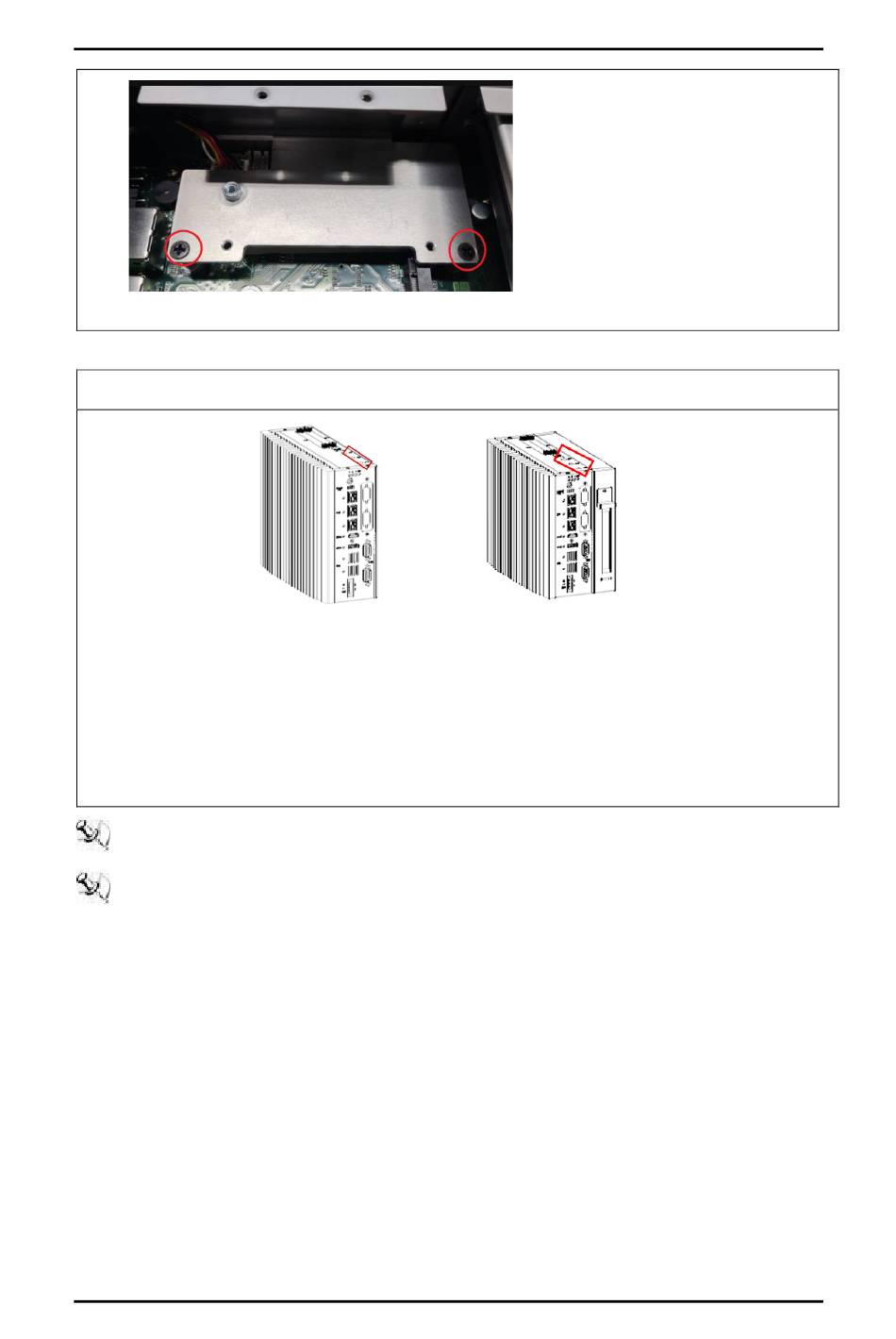

Tight the bracket. The installation is complete.,
➢
Carefully insert the wireless LAN card into its designated slot on the motherboard. Gently press
➢
down until it clicks or locks into place.
Connect the internal wireless cable(s) to the wireless LAN card. Then, detach the antenna plug(s)
➢
and screw the antenna(s) securely onto the system.
Close the cover back (and expansion box) to the main chassis and tighten the screws. The
➢
installation is complete.
Note:
Please use an extended bracket when using a half-size Mini card
Note:
There are three antenna holes in the system, please adjust the antenna placement
according to the environment.
Hardware Installation
Mini PCIe / M.2 key E
IPC920 Series User's Manual
