1.8.7

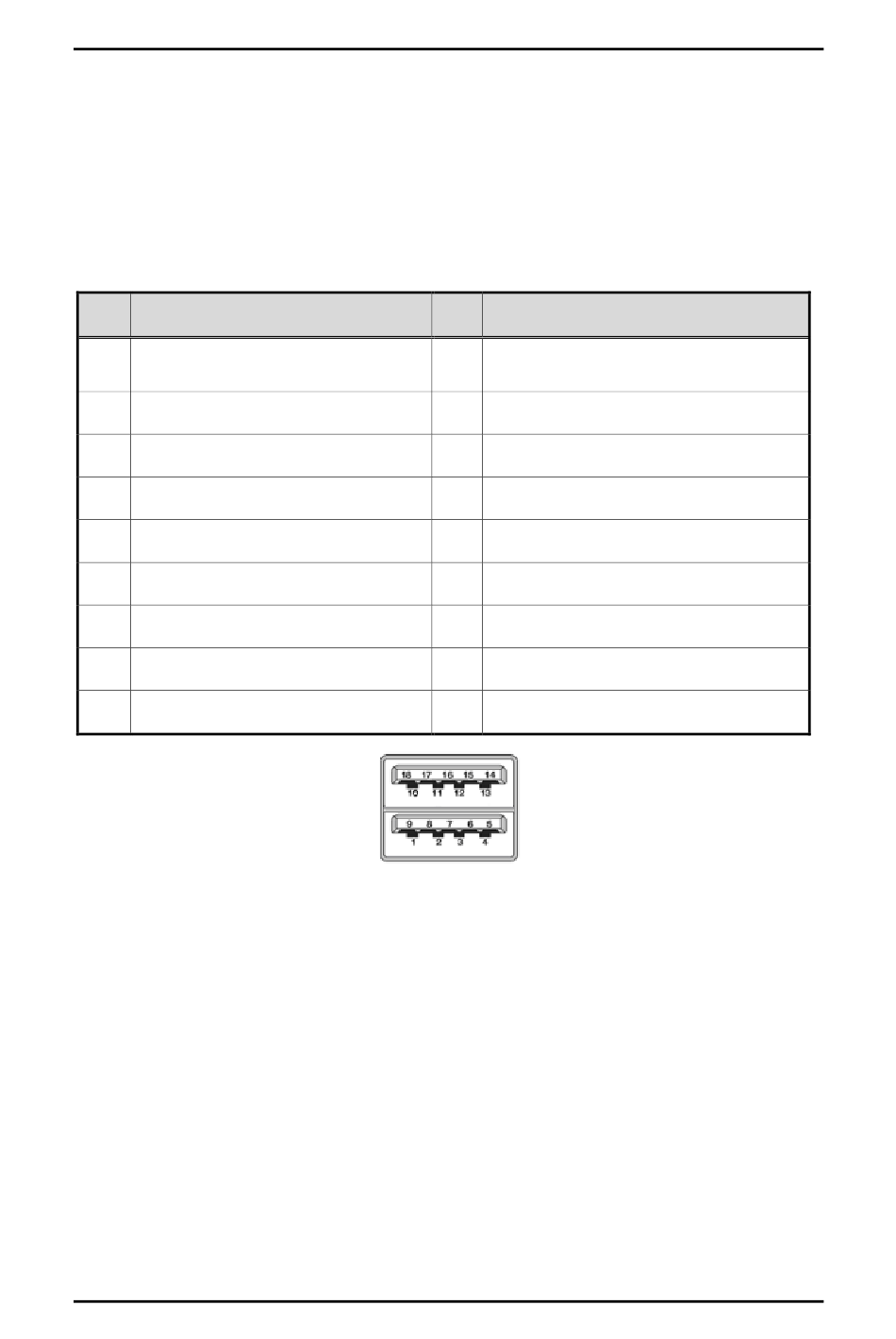

Dual USB 3.2 Type-A connector (CN11, CN17)

The Universal Serial Bus connectors are compliant with USB3.2 and ideal for installing USB
peripherals such as scanners, cameras and USB devices.
H610E=USB3.2 GEN1 (5Gbps) + USB3.2 GEN2 (10Gbps)
R680E=USB3.2 GEN2 (10Gbps)
Pins Signal USB Port 0
1 USB_VCC (+5V level standby power)
2 USB1_Data-
3 USB1_Data+
4 GND
5 SSRX1-
6 SSRX1+
7 GND
8 SSTX1-
9 SSTX1+
Introduction
IPC920 Series User's Manual
Pins Signal USB Port 1
USB_VCC (+5V level standby power)
10
11 USB2_Data-
12 USB2_Data+
13 GND
14 SSRX2-
15 SSRX2+
16 GND
17 SSTX2-
18 SSTX2+
19
