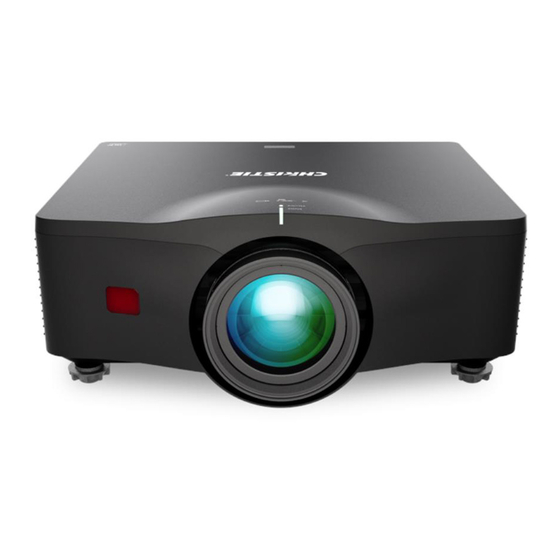

User Manual 020-002098-01 Inspire Series 4K...
Page 2
Christie's control such as maintenance of the product in proper working conditions. Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose.
Introduction This manual is intended for Christie qualified installers and trained operators of Inspire Series 4K projection systems. For complete Inspire Series 4K product documentation and technical support, go to www.christiedigital.com. This projector is intended for use in a non-cinema environment.
Read all safety and warning guidelines before installing or operating the projector. This projector must be operated in an environment that meets the operating range specification. Use only the attachments and/or accessories recommended by Christie. Use of others may result in the risk of fire, shock, or personal injury.
Caution! If not avoided, the following could result in minor or moderate injury. • ELECTRICAL and BURN HAZARD! Use caution when accessing internal components. • Only Christie qualified technicians are authorized to use the tools provided in the toolbox. Laser safety precautions This product is classified as CLASS 1 LASER PRODUCT - RISK GROUP 2 according to IEC 60825-1: 2014, EN 60825-1: 2014+A11:2021complies with FDA regulations 21 CFR 1040.10 and 1040.11 as...
Page 12
Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye strain and decreased postural stability. Christie recommends taking frequent breaks to lessen the potential of these effects. If your eyes show signs of fatigue or dryness or if experiencing any of the above symptoms, immediately discontinue use of this device and do not resume using it for at least thirty minutes after the symptoms have subsided.
Learn about the labels that may be used on the product. Labels on your product may be yellow or black and white. General hazards Hazard warnings also apply to accessories once they are installed in a Christie product that is connected to power. Fire and Shock Hazard To prevent fire or shock hazards, do not expose this product to rain or moisture.
Contact your dealer Record the information about your projector and keep this information with your records to assist with the servicing of your projector. If you encounter a problem with your Christie projector, contact your dealer. Purchase record...
A web page using Ethernet or from a PC or device using a wireless USB dongle (optional) How the projector works The Inspire Series 4K projector accepts a variety of input signals for a wide range of commercial projection applications.
Product documentation For installation, setup, and user information, see the product documentation available on the Christie Digital Systems USA Inc. website at www.christiedigital.com. Read all instructions before using or servicing this product. 1. Access the documentation from the Christie website: •...
Christie recommends a 20 A rated wall breaker for the installation. To ensure safe operation, only use the AC power cord provided with the product or recommended by Christie.
Adjusting the size and position Adjust the projector’s size and position. Christie recommends warming the lens before completing these procedures as focus may change as the lens warms. Adjusting the Projected Image Adjust the projected image’s height and horizontal tilt for better viewing.
Geometry correction Modify the geometry of the display image directly on the projector. Connecting to Christie Twist and Mystique grays out the geometry correction settings on the projector. Uploading warp and blend from Twist and Mystique overwrites the currently applied geometry correction settings.
You can set blends on a projector when not using Christie Twist and Mystique. Connecting to Twist and Mystique grays out the blend settings on the projector. Applying blends from Twist and Mystique overwrites the blends directly set on the projectors.
Blending multiple images Use Christie Twist to manually configure edge blends and apply them to the projectors. Christie Twist Premium and Twist Pro offer advanced blending options. Refer to the Christie website (www.christiedigital.com) for product information and documentation. 1. Connect the projector and computer to the same network and subnet.
When the projection screen is not perfectly flat or rotated at an angle, warp the image to fit on the irregular surface. Warping an image Christie Twist offer various manual warping options to adjust the image shape with minimal performance impact. Refer to the Christie website (www.christiedigital.com) for product information and documentation.
Adjusting the size and position Christie Twist can be upgraded to Twist Premium and Twist Pro that provides more advanced warping features. Refer to the Christie website (www.christiedigital.com) for product information and documentation. Downloading a warp from the projector memory Use Twist to download the warp file saved on the projector memory.
3D sync to display the content. For multi-threaded applications, if the 3D enable function is set to Frame Sequential, Christie recommends to connect the source device to the projector using 3D Sync In port. The Frame Delay function makes sure a synchronized display for multiple projectors.
Resetting the lens to home position Set the lens offset back to the home position. To make sure the lens shift is functioning properly, Christie recommends calibrating the lens every time the lens are changed. 1. Select Menu > Configuration > Lens Settings > Lens Calibration.
Diagnostic tools Follow these procedures to help diagnose issues with Inspire Series 4K projectors. Viewing projector information View the status of the projector, source information, light source information, and communication information. The information is read-only. 1. To view the status of the projector, such as model name, serial number, and so on, select Menu >...
Signal connectivity specifications Identify the signal connectivity specifications for Inspire Series 4K projector. The list of formats listed below are not exhaustive and other formats may be supported. For more information, contact Christie Technical Support. Inspire Series 4K User Manual 020-002098-01 Rev.
