9 SCANNING

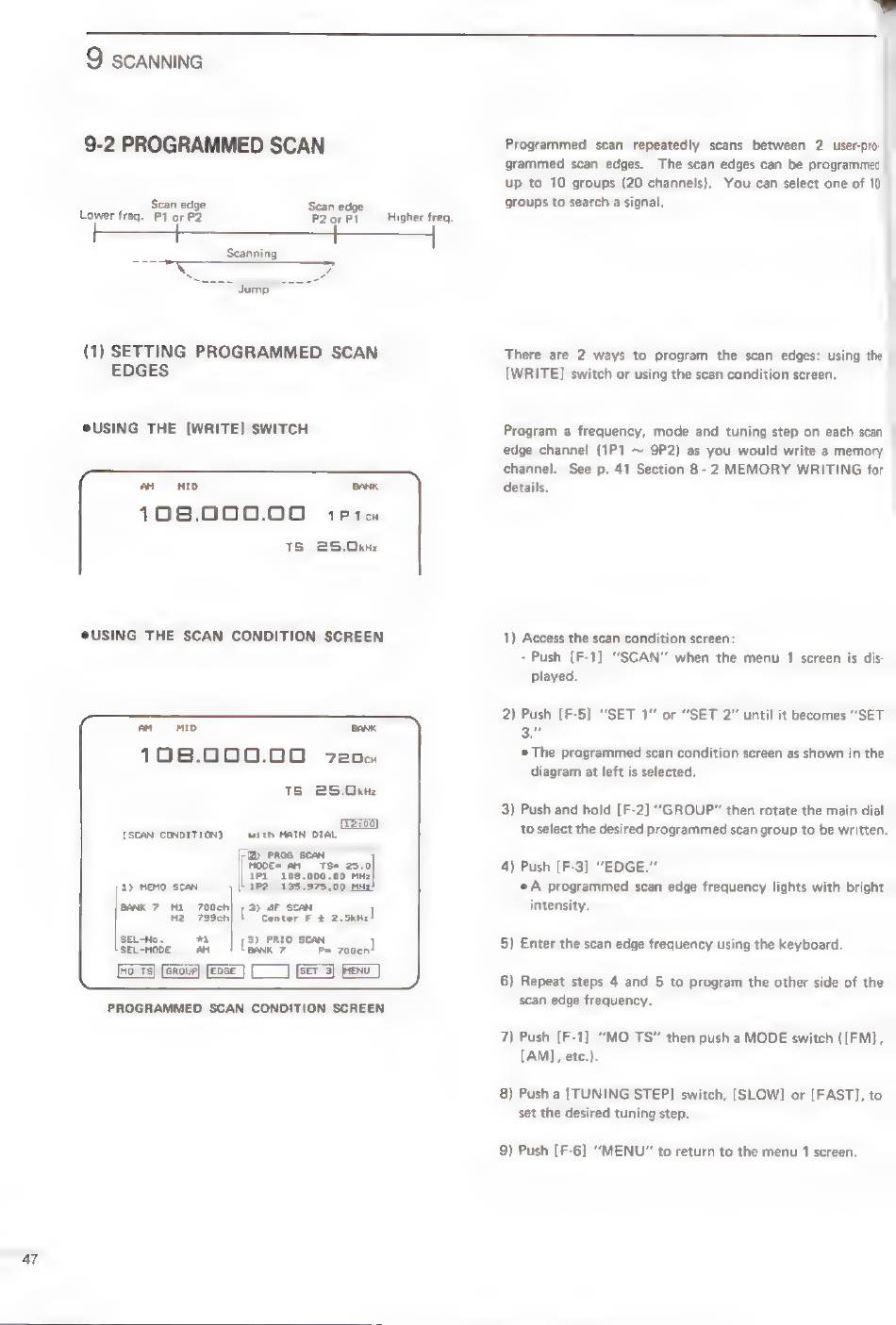

9-2 PROGRAMMED SCAN
Scan edge 'Scan edge
Lower freq.
P1 or P2
P2or P1
Scanning
(1) SETTING PROGRAMMED SCAN
EDGES
@USING THE [WRITE] SWITCH
aM MID BANK
108.000.00
1P1cH
TS 2S5.Oknz
@USING THE SCAN CONDITION SCREEN
an MID BANK
108.000.00 7200
TS 25.Oknz
[SCAN CONDITION] = with MAIN DIAL
MODE= AM TS= 25.0
1P1 108,000.00 MHz
E PROG SCAN
1) MEMO SCAN
BANK 7 Mi 700ch| (3) AF SCAN ]
M2 799ch Center F 4 2.5kHz
SEL-No. #1 [22,PRIO SCAN ]
SEL-MODE = AM BANK 7 P= 700ch
Gro 5} [erour] [Eose] [—] (Ber 3] Rene]
PROGRAMMED SCAN CONDITION SCREEN
Higher freq.
Programmed scan repeatedly scans between 2 user-pro-
grammed scan edges. The scan edges can be programmed
up to 10 groups (20 channels), You can select one of 10
groups to search a signal,
There are 2 ways to program the scan edges: using the
[WRITE] switch or using the scan condition screen.
Program a frequency, mode and tuning step on each scan
edge channel (1P1 ~ 9P2) as you would write a memory
channel. See p. 41 Section 8-2 MEMORY WRITING for
details.
1) Access the scan condition screen:
- Push [F-1] "SCAN" when the menu 1 screen is dis-
played.
2) Push [F-5) "SET 1" or "SET 2" until it becomes "SET
3."
¢ The programmed scan condition screen as shown in the
diagram at left is selected.
3) Push and hold [F-2] "GROUP" then rotate the main dial
to select the desired programmed scan group to be written.
4) Push [F-3] "EDGE."
«A programmed scan edge frequency lights with bright
intensity.
5) Enter the scan edge frequency using the keyboard.
6) Repeat steps 4 and 5 to program the other side of the
scan edge frequency.
7) Push [F-1] "MO TS" then push a MODE switch ([FM],
[AM], etc.).
8) Push a [TUNING STEP] switch, [SLOW] or [FAST], to
set the desired tuning step.
9) Push [F-6] "MENU" to return to the menu 1 screen.
