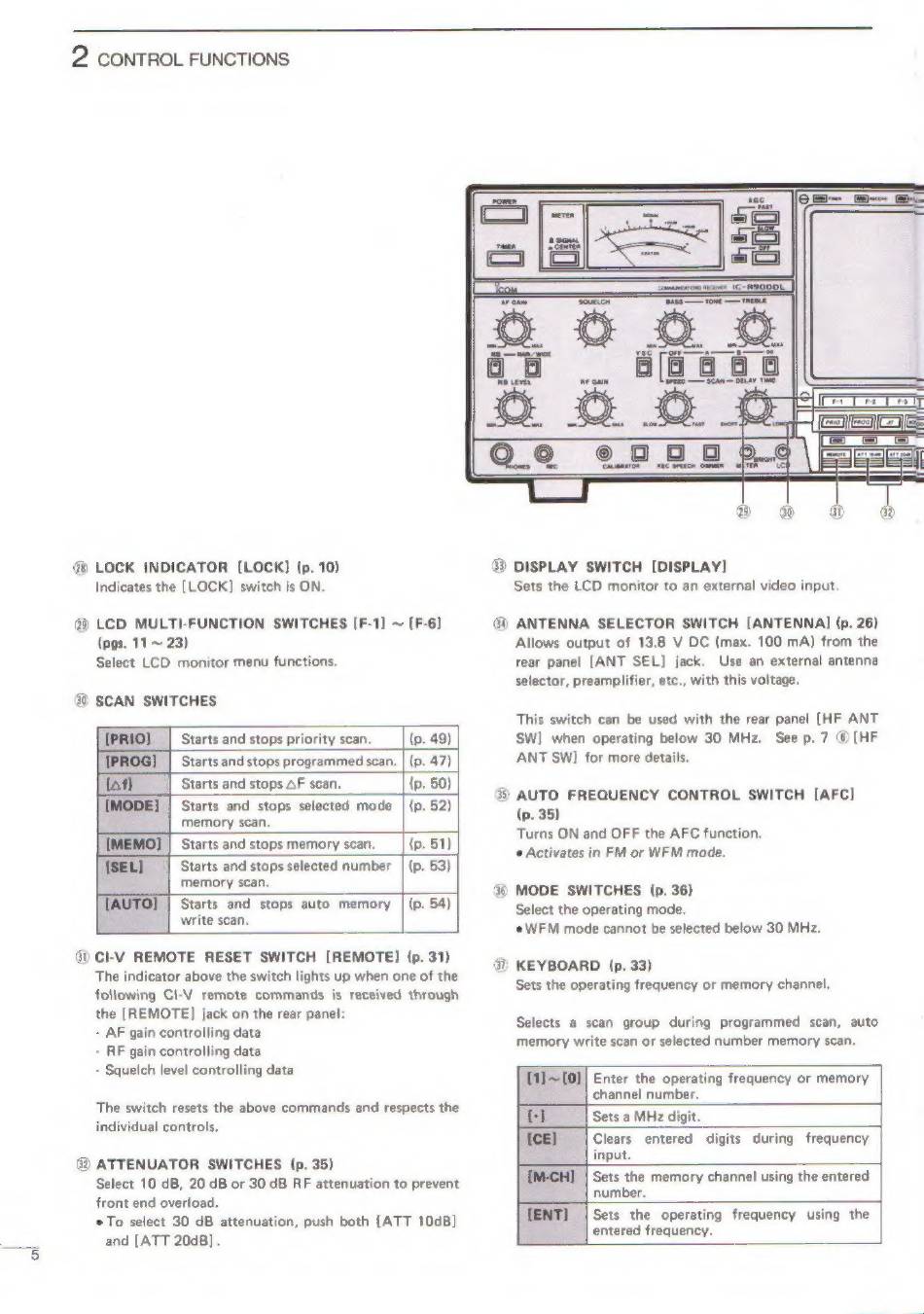

Icom IC-RSOOCOL Instruction Manual page 8

2 CONTROL FUNCTIONS
@® LOCK INDICATOR [LOCK] (p. 10)
Indicates the [LOCK] switch is ON.
( LCD MULTI-FUNCTION SWITCHES [F-1] ~ [F-6]
(pgs. 11 ~ 23)
Select LCD monitor menu functions.
30 SCAN SWITCHES
Starts and stops priority scan,
| [PROG] | Starts and stops programmed scan. | (p. 47)
| [Af] | Starts and stops AF scan. (p. 50)
(MoD Starts and stops selected mode
memory scan.
(p. 52)
If V 10} | Starts and stops memory scan. (p. 51)
[SEL] Starts and stops selected number | (p. 53)
memory scan.
[AUTO Starts and stops auto memory
write scan.
Gl) Cl-V REMOTE RESET SWITCH [REMOTE] (p. 31)
The indicator above the switch lights up when one of the
following Cl-V remote commands is received through
the [REMOTE] jack on the rear panel:
- AF gain controlling data
- RF gain controlling data
- Squelch level controlling data
(p. 54)
The switch resets the above commands and respects the
individual controls.
(2) ATTENUATOR SWITCHES (p. 35)
Select 10 dB, 20 dB or 30 dB RF attenuation to prevent
front end overload.
To select 30 dB attenuation, push both [ATT 10dB]
and [ATT 20dB].
o @ @ @
&) DISPLAY SWITCH [DISPLAY]
Sets the LCD monitor to an external video input
@) ANTENNA SELECTOR SWITCH [ANTENNA] (p. 26)
Allows output of 13.8 V DC (max. 100 mA) from the
rear panel [ANT SEL] jack. Use an external antenna
selector, preamplifier, etc., with this voltage.
This switch can be used with the rear panel [HF ANT
SW] when operating below 30 MHz. See p. 7 © (HF
ANT SW) for more details.
) AUTO FREQUENCY CONTROL SWITCH [AFC]
(p. 35)
Turns ON and OFF the AFC function.
« Activates in FM or WFM mode.
3% MODE SWITCHES (p. 36)
Select the operating mode.
© WFM mode cannot be selected below 30 MHz.
G) KEYBOARD (p. 33)
Sets the operating frequency or memory channel.
Selects a scan group during programmed scan, auto
memory write scan or selected number memory scan.
Enter the operating frequency or memory
channel number,
Sets a MHz digit.
Clears entered digits during frequency
input.
Sets the memory channel using the entered
number.
Sets the operating frequency using the
entered frequency.
