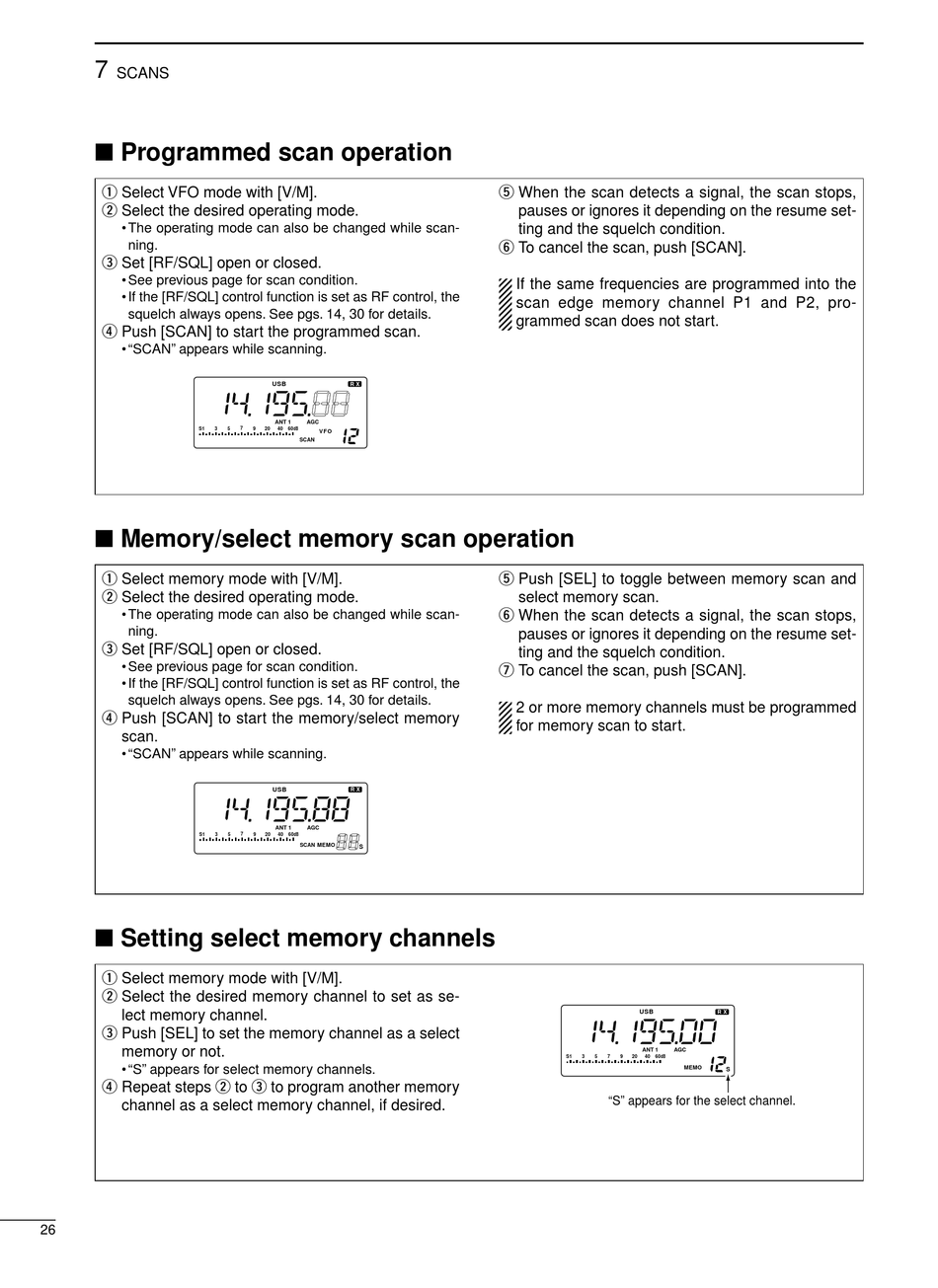

Programmed Scan Operation; Memory/Select Memory Scan Operation; Setting Select Memory Channels - Icom IC-R75 Instruction Manual

7
SCANS

Programmed scan operation

q Select VFO mode with [V/M].
w Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
e Set [RF/SQL] open or closed.
• See previous page for scan condition.
• If the [RF/SQL] control function is set as RF control, the
squelch always opens. See pgs. 14, 30 for details.
r Push [SCAN] to start the programmed scan.
• "SCAN" appears while scanning.
S1 3

Memory/select memory scan operation

q Select memory mode with [V/M].
w Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
e Set [RF/SQL] open or closed.
• See previous page for scan condition.
• If the [RF/SQL] control function is set as RF control, the
squelch always opens. See pgs. 14, 30 for details.
r Push [SCAN] to start the memory/select memory
scan.
• "SCAN" appears while scanning.
S1 3

Setting select memory channels

q Select memory mode with [V/M].
w Select the desired memory channel to set as se-
lect memory channel.
e Push [SEL] to set the memory channel as a select
memory or not.
• "S" appears for select memory channels.
r Repeat steps w to e to program another memory
channel as a select memory channel, if desired.
26
USB
R X
ANT 1 AGC
5 7 9 20 40 60dB
VFO
SCAN
USB
R X
ANT 1 AGC
5 7 9 20 40 60dB
SCAN MEMO
S
t When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
y To cancel the scan, push [SCAN].
If the same frequencies are programmed into the
scan edge memory channel P1 and P2, pro-
grammed scan does not start.
t Push [SEL] to toggle between memory scan and
select memory scan.
y When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
u To cancel the scan, push [SCAN].
2 or more memory channels must be programmed
for memory scan to start.
USB
ANT 1 AGC
S1 3 5 7 9 20 40 60dB
"S" appears for the select channel.
R X
MEMO
S
