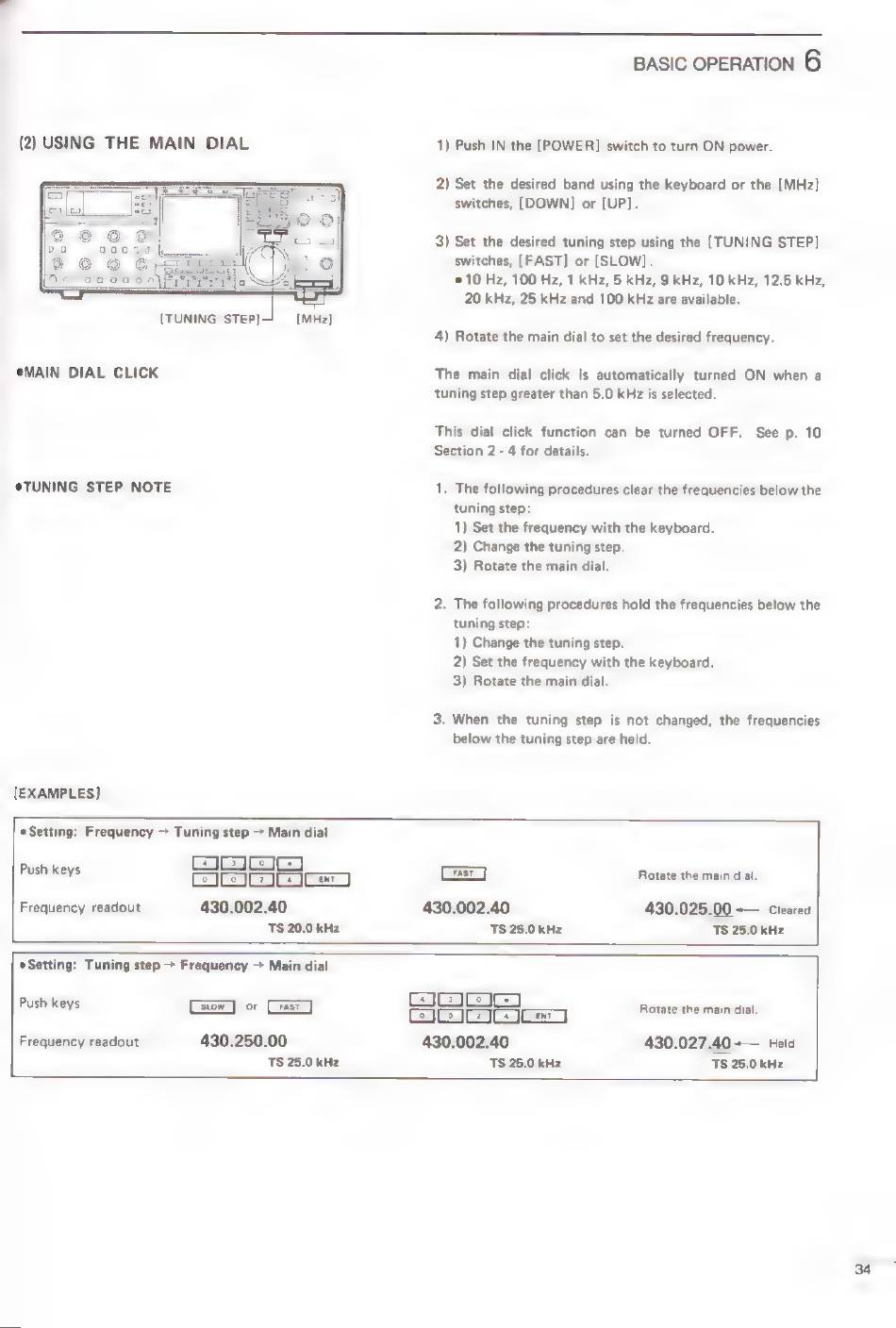

Icom IC-RSOOCOL Instruction Manual page 37

BASIC OPERATION 6
(2) USING THE MAIN DIAL 1) Push IN the [POWER] switch to turn ON power.
2) Set the desired band using the keyboard or the [MHz]
switches, [DOWN] or [UP].
3) Set the desired tuning step using the [TUNING STEP]
switches, [FAST] or [SLOW].
#10 Hz, 100 Hz, 1 kHz, 5 kHz, 9 kHz, 10 kHz, 12.5 kHz,
20 kHz, 25 kHz and 100 kHz are available.
4) Rotate the main dial to set the desired frequency.
eMAIN DIAL CLICK The main dial click is automatically turned ON when a
tuning step greater than 5.0 kHz is selected.
This dial click function can be turned OFF, See p. 10
Section 2 - 4 for details.
@TUNING STEP NOTE 1. The following procedures clear the frequencies below the
tuning step:
1) Set the frequency with the keyboard.
2) Change the tuning step.
3) Rotate the main dial.
2. The following procedures hold the frequencies below the
tuning step:
1) Change the tuning step.
2) Set the frequency with the keyboard,
3) Rotate the main dial.
3. When the tuning step is not changed, the frequencies
below the tuning step are held.
[EXAMPLES]
Push keys
ao
Ges
Rotate the main dial.
Frequency readout 430.002.40 430.002.40 430.025.00 -— Cleared
TS 20.0 kHz TS 25.0 kHz TS 25.0 kHz
Setting: Tuning step + Frequency > Main dial
TS 25.0 kHz TS 25.0 kHz TS 25.0 kHz
"
