2 CONTROL FUNCTIONS

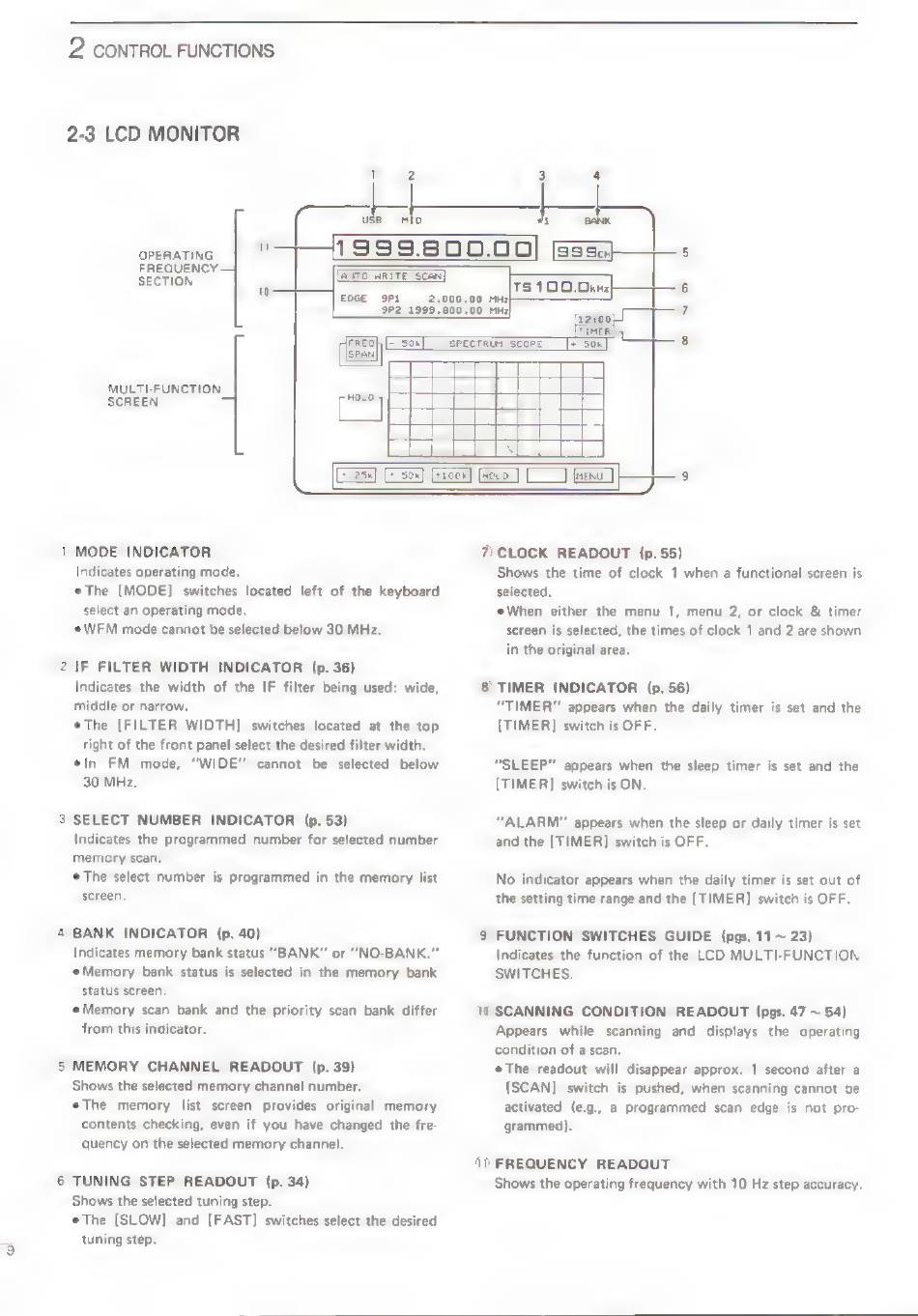

2-3 LCD MONITOR
nN
o
oy
@
OPERATING
FREQUENCY
EDGE 9P1
2,000.00 MHz
TS 100.0knz|
9P2 1999.800,00 MH]
MULTI-FUNCTION
SCREEN
'MODE INDICATOR
Indicates operating mode.
The [MODE] switches located left of the keyboard
select an operating mode,
*WFM mode cannot be selected below 30 MHz.
'IF FILTER WIDTH INDICATOR (p. 36)
Indicates the width of the IF filter being used: wide,
middle or narrow,
The [FILTER WIDTH] switches located at the top
right of the front panel select the desired filter width.
*In FM mode, "WIDE" cannot be selected below
30 MHz.
SELECT NUMBER INDICATOR (p. 53)
Indicates the programmed number for selected number
memory scan.
The select number is programmed in the memory list
screen.
BANK INDICATOR (p. 40)
Indicates memory bank status "BANK" or "NO-BANK.""
«Memory bank status is selected in the memory bank
status screen.
«Memory scan bank and the priority scan bank differ
from this indicator.
MEMORY CHANNEL READOUT (p. 39)
Shows the selected memory channel number.
eThe memory list screen provides original memory
contents checking, even if you have changed the fre-
quency on the selected memory channel.
TUNING STEP READOUT (p. 34)
Shows the selected tuning step.
*The [SLOW] and [FAST] switches select the desired
tuning step.
©
7) CLOCK READOUT (p. 55)
Shows the time of clock 1 when a functional screen is
seiected.
When either the menu 1, menu 2, or clock & timer
screen is selected, the times of clock 1 and 2 are shown
in the original area.
8) TIMER INDICATOR (p. 56)
"TIMER" appears when the daily timer is set and the
[TIMER] switch is OFF.
"SLEEP" appears when the sleep timer is set and the
[TIMER] switch is ON.
"ALARM" appears when the sleep or daily timer is set
and the [TIMER] switch is OFF.
No indicator appears when the daily timer is set out of
the setting time range and the [TIMER] switch is OFF.
FUNCTION SWITCHES GUIDE (pgs, 11 ~ 23)
Indicates the function of the LCD MULTI-FUNCTION
SWITCHES.
0 SCANNING CONDITION READOUT (pgs. 47 ~ 54)
Appears while scanning and displays the operating
condition of a scan.
The readout will disappear approx. 1 second after a
[SCAN] switch is pushed, when scanning cannot be
activated (e.g., a programmed scan edge is not pro-
grammed).
') FREQUENCY READOUT
Shows the operating frequency with 10 Hz step accuracy.
