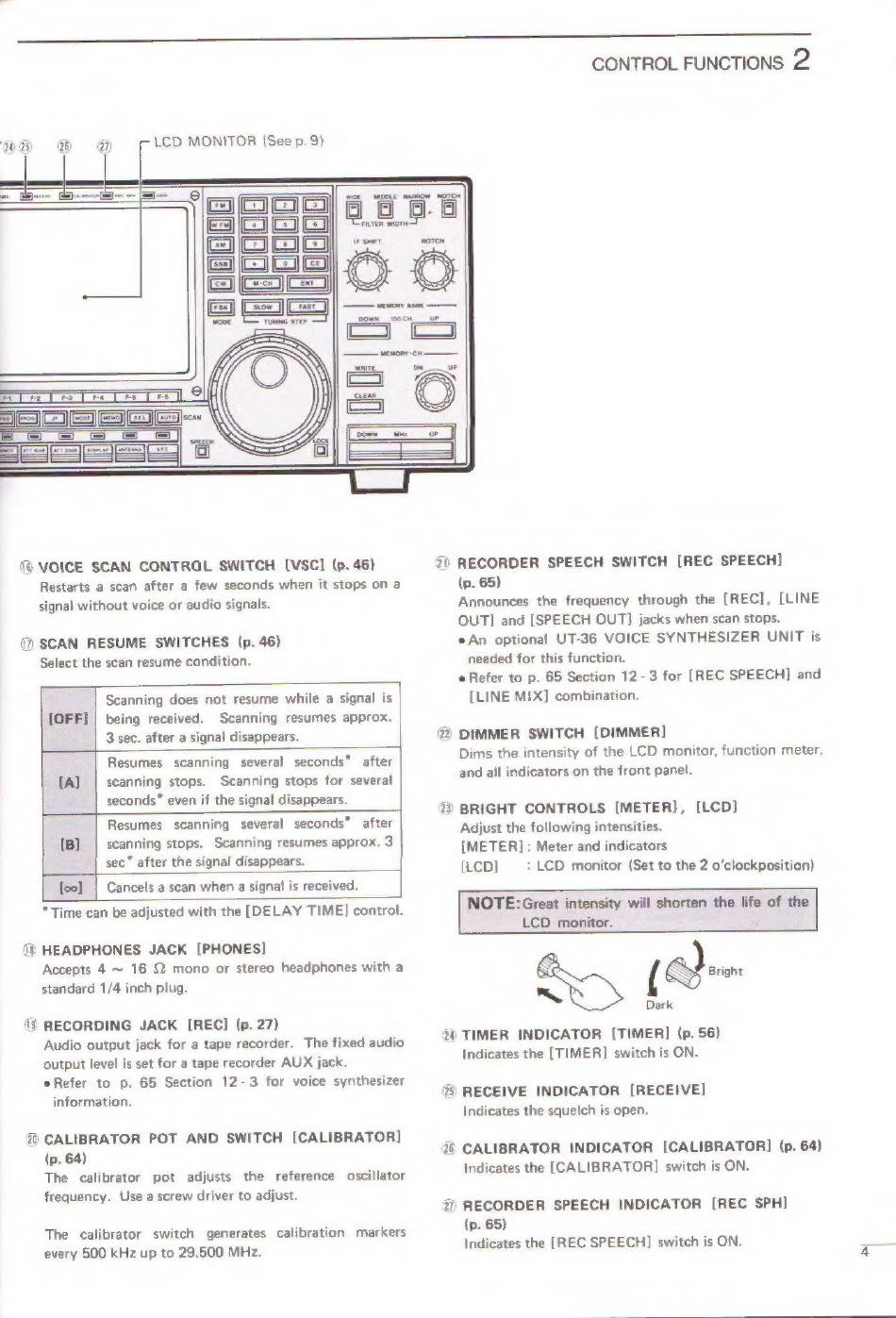

Icom IC-RSOOCOL Instruction Manual page 7

3 A a A Z|]
(8 VOICE SCAN CONTROL SWITCH [VSC] (p. 46}
Restarts a scan after a few seconds when it stops on a
signal without voice or audio signals.
(® SCAN RESUME SWITCHES (p. 46)
Select the scan resume condition.
———,
Scanning does not resume while a signal is
{OFF]| being received. Scanning resumes approx.
3 sec. after a signal disappears.
Resumes scanning several seconds* after
scanning stops. Scanning stops for several
seconds" even if the signal disappears.
{al
Resumes scanning several seconds" after
{Bl scanning stops. Scanning resumes approx. 3
sec" after the signal disappears.
{eo} | Cancels a scan when a signal is received.
L
* Time can be adjusted with the [DELAY TIME] control.
(® HEADPHONES JACK [PHONES]
Accepts 4 ~ 16 & mono or stereo headphones with a
standard 1/4 inch plug.
'9 RECORDING JACK [REC] (p. 27)
Audio output jack for a tape recorder. The fixed audio
output level is set for a tape recorder AUX jack.
eRefer to p. 65 Section 12-3 for voice synthesizer
information.
@ CALIBRATOR POT AND SWITCH [CALIBRATOR]
(p. 64)
The calibrator pot adjusts the reference oscillator
frequency. Use a screw driver to adjust.
The calibrator switch generates calibration markers
every 500 kHz up to 29.500 MHz.
CONTROL FUNCTIONS 2
2) RECORDER SPEECH SWITCH [REC SPEECH]
(p. 65)
Announces the frequency through the [REC], [LINE
OUT] and [SPEECH OUT] jacks when scan stops.
© An optional UT-36 VOICE SYNTHESIZER UNIT is
needed for this function.
@® DIMMER SWITCH [DIMMER]
Dims the intensity of the LCD monitor, function meter,
and all indicators on the front panel.
2 BRIGHT CONTROLS [METER], [LCD]
Adjust the following intensities.
[METER] : Meter and indicators
(LCD] : LCD monitor (Set to the 2 o'clockposition)
NOTE: Great intensity will shorten the life of the
Tr.
Bright
2 TIMER INDICATOR [TIMER] (p. 56)
Indicates the [TIMER] switch is ON.
') RECEIVE INDICATOR [RECEIVE]
Indicates the squelch is open.
@ RECORDER SPEECH INDICATOR [REC SPH]
(p. 65)
Indicates the [REC SPEECH] switch is ON.
